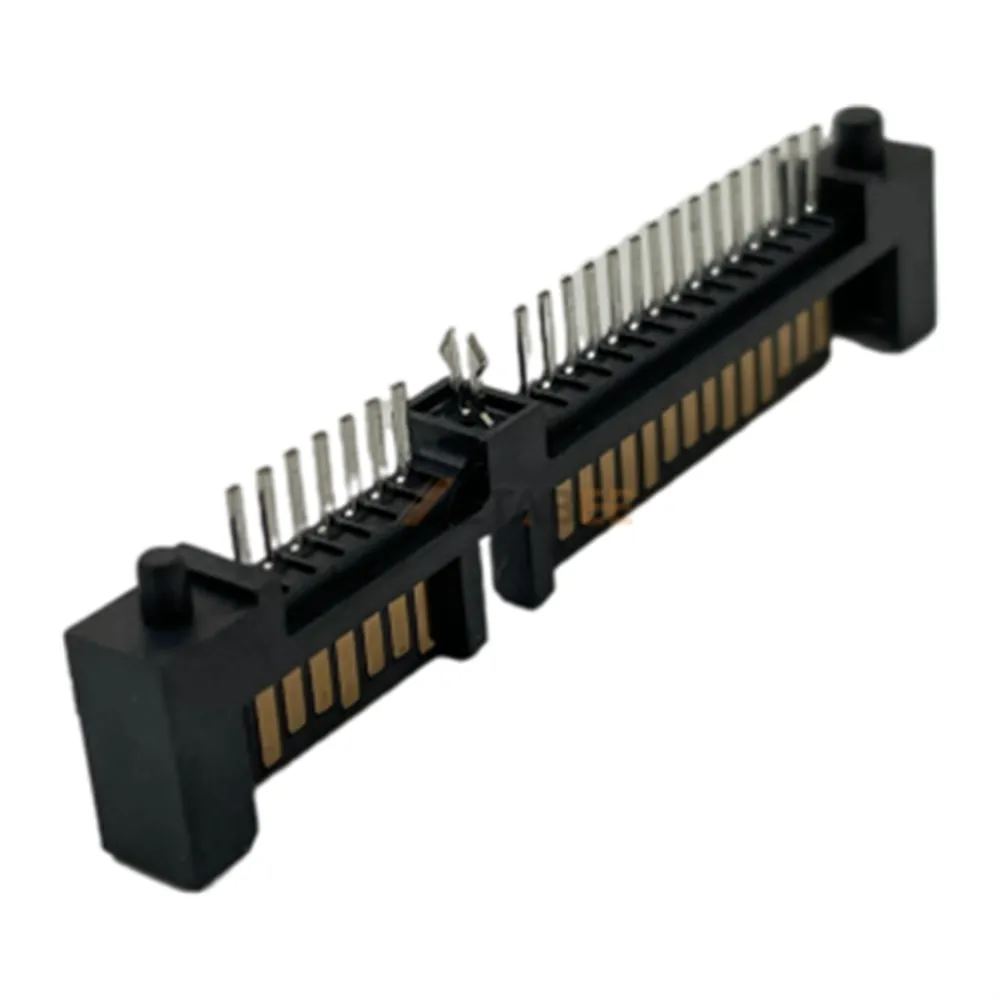

SATA Combo 22 Pin Female Connector, SMT, Vertical
Introduction:
SATA combo 22 pin female connector, smt, vertical. this dual port 7+15 pin receptacle delivers reliable board-level data and power in a compact vertical surface mount package. engineered for pcb assembly, it supports vertical mating for space-conscious layouts. Rated at 1.5a with 30 mohms max contact resistance, 1,000 mohms min insulation resistance, and 500 vac dielectric withstanding voltage. ul94v-0 flame retardant housing operates from -55°c to 85°c.
Key Features
-
Dual-port 7+15 pin male sata connector design
-
Vertical SMT pcb mounting structure
-
1.5a rated current with stable electrical performance
-
Ultra-low 30 mohms max contact resistance
-
Ul94v-0 flame retardant and 500 vac withstand voltage
-
Wide -55°c to 85°c working temperature rang
Main Specifications:
General Information:
| Product No.: | SATA-G5-PM-SMT-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
