SATA Combo 22 Pin Female Connector for PCB, SMT, 90 Degree
Introduction:
The sata combo 22-pin female connector combines 7-pin data and 15-pin power contacts in a compact design for reliable connectivity in storage devices, computers, servers, and other sata applications. Its 90-degree right-angle configuration and pcb surface mount design support efficient board integration and space optimization.
With a rated current of 1.5a, this connector provides stable electrical performance with 30 mOhms max contact resistance and 1,000 mOhms min insulation resistance. It supports 500 vac dielectric withstanding voltage and reliable operation from -55°c to +85°c. The ul94v-0 flame-retardant housing enhances application reliability.
Key Features
- Female 7+15 pin combo configuration
- 22-pin data and power connector
- 90-degree right-angle design
- PCB surface mount installation
- 1.5a rated current
- Ul94v-0 flame-retardant housing

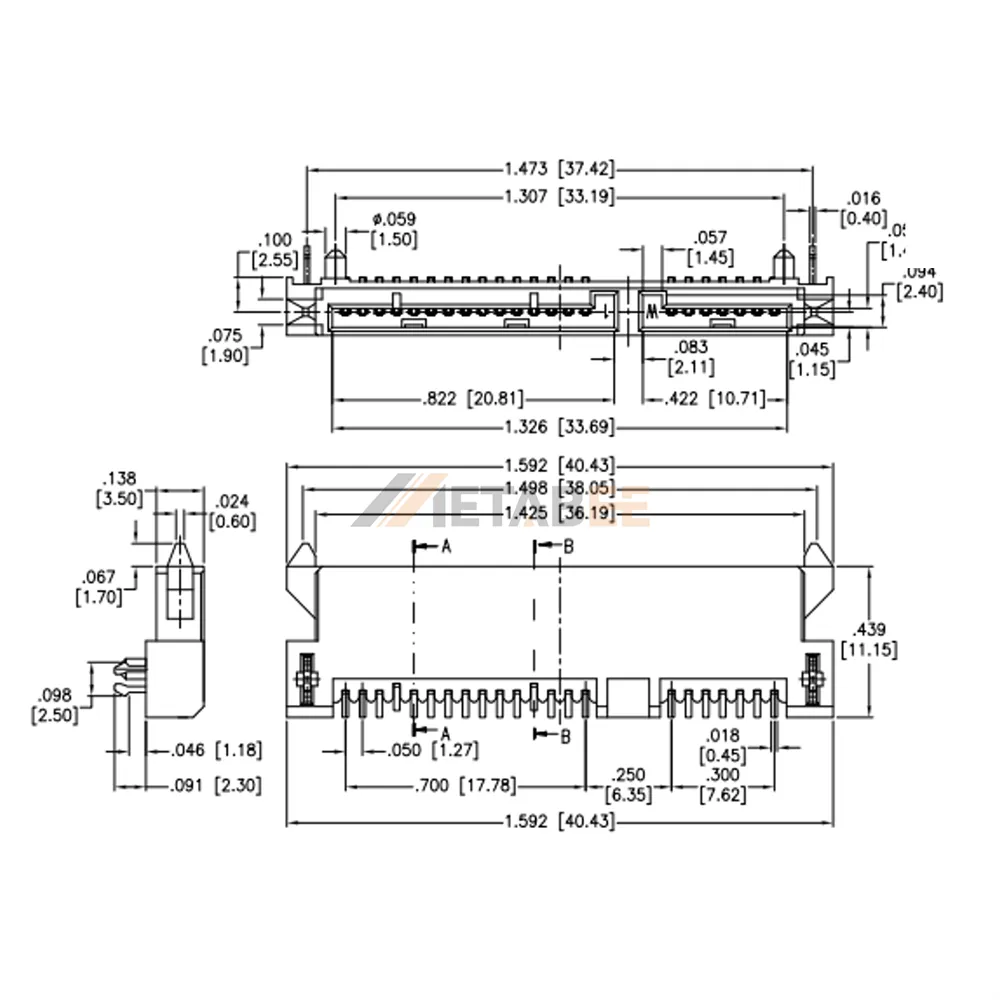

Main Specifications:
General Information:
| Product No.: | SATA-G2-PM-SMT-RT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
