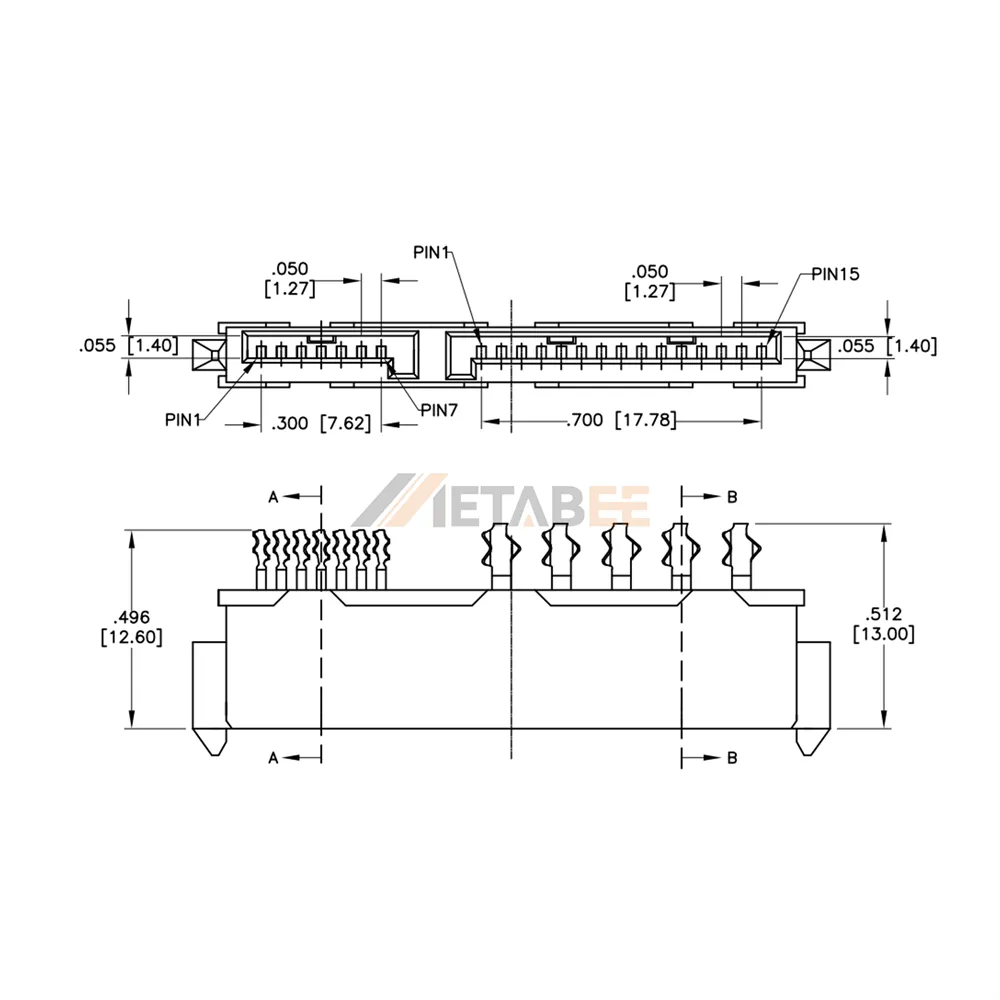

SATA Combo 22 Pin Data Power Socket, Solder Overmolding Type
Introduction:
Engineered for high-reliability data storage and embedded computing platforms, this sata combo 22-pin (7+15) female data and power socket delivers exceptional signal integrity and streamlined power delivery in a unified interface. Combining high-speed 7-pin data and robust 15-pin power channels into a dual-port configuration, it minimizes cable clutter while maximizing layout efficiency.
The solder overmolding construction provides superior strain relief, moisture protection, and mechanical resilience, making it ideal for harsh operating conditions, custom wire harnesses, and industrial drive assemblies. Built using ul94v-0 rated flame-retardant thermoplastics, this connector withstands severe thermal shifts while maintaining consistent electrical continuity under continuous duty cycles.
Key Features
- Integrated 22-pin (7+15) female combo socket unites high-speed data and power transmission.
- Rugged solder overmolding design ensures exceptional mechanical durability and strain relief.
- 1.5 a rated current capacity delivers stable, uninterrupted power distribution.
- Low 30 mohms maximum contact resistance minimizes signal attenuation.
- High 1,000 mohms minimum insulation resistance with 500 vac dielectric tolerance.
- Resilient -55°c to +85°c operating thermal range enclosed in ul94v-0 flame-retardant housing.
Main Specifications:
General Information:
| Product No.: | SATA-G3-PM-F-OM | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
