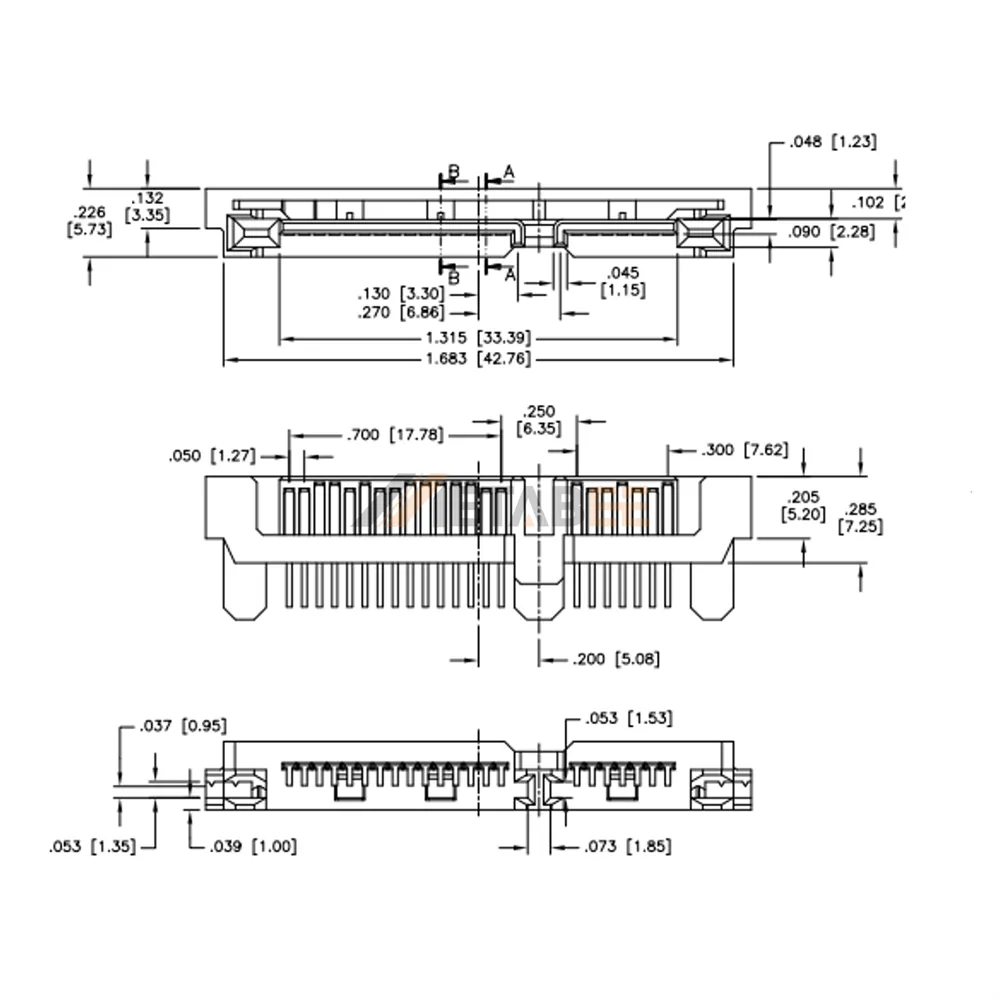

SATA 7+15 Pin Combo Male Connector, Solder, Straddle Mount
Introduction:
Sata 7+15 pin combo male connector, solder, straddle mount. This dual port connector combines 7-pin signal and 15-pin power contacts in one compact housing, delivering a space-saving solution for sata storage applications.
Rated current is 1.5a, with contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac. The connector meets ul94v-0 flammability and operates from -55°c to 85°c.
Key Features
- Dual port sata 7+15 pin combo male connector
- Solder straddle mount termination
- 1.5a current rating
- 30 mohms max contact resistance
- 500 vac dielectric withstanding voltage
- Ul94v-0, -55°c to 85°c operation
Main Specifications:
General Information:
| Product No.: | SATA-G-PM-001 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Straddle Mount | |
| Mounting Feature: | N/A | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
