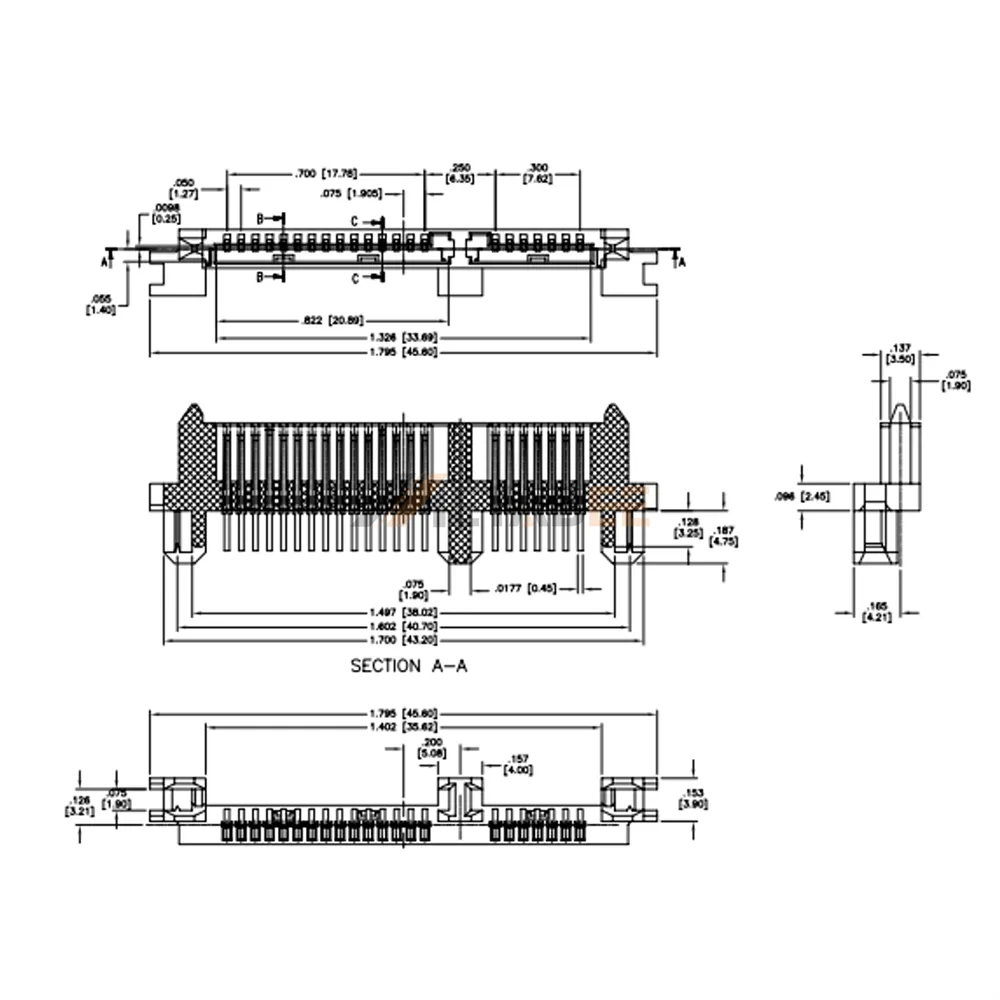

SATA 7+15 Pin Combo Data Power Receptacle, Straddle Mount
Introduction:
Sata 7+15 pin combo data power receptacle, straddle mount. This female dual port connector features a 7+15 pin layout with a vertical mounting orientation and thru hole mounting type. It is designed for reliable data and power transmission in storage applications.
The connector is rated for 1.5a with a contact resistance of 30 mohms max and an insulation resistance of 1,000 mohms min. It withstands a dielectric withstanding voltage of 500 vac and meets ul94v-0 flammability rating. The operating temperature ranges from -55°c to 85°c.
Key Features
- Female dual port 7+15 pin combo
- Straddle mount, vertical, thru hole
- 1.5a current rating
- 30 mohms max contact resistance
- 500 vac dielectric withstanding
- Ul94v-0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-G-PM-SM | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Straddle Mount | |
| Mounting Feature: | N/A | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
