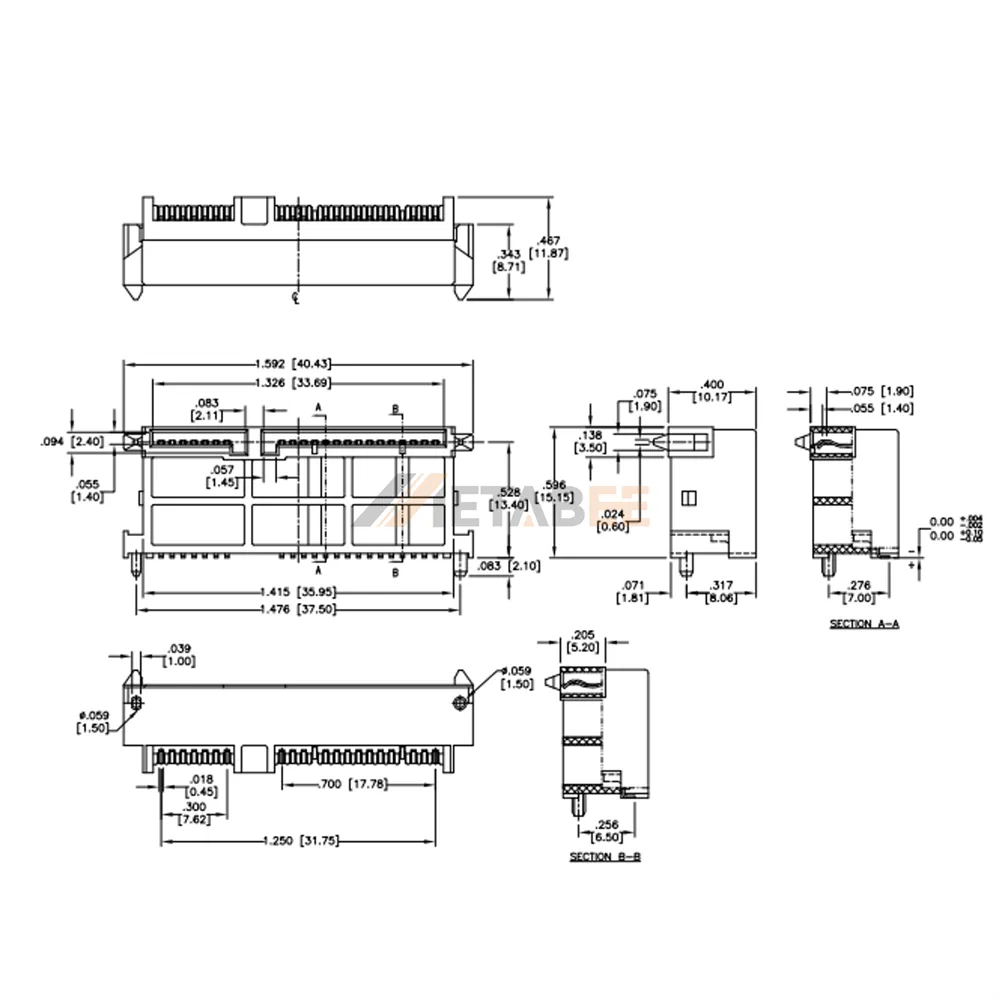

SATA 7+15 22-Pin Data & Power Combo Receptacle, Dual Port, SMT, R/A
Introduction:
Sata 7+15 22-pin data & power combo receptacle, dual port, smt, r/a. This female connector combines 7 data pins and 15 power pins in a single 22-pin layout, providing both signal and power transmission for sata drives. Its dual port design supports two connections, while the right angle mounting orientation and pcb smt mounting type save board space and suit automated assembly.
It is rated at 1.5a with contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac. The connector meets ul94v-0 flammability standards and operates from -55°c to 85°c, ensuring reliable performance in demanding environments.
Key Features
- Female 22-pin sata data & power combo receptacle.
- Dual port design for two connections.
- Right angle mounting orientation.
- Pcb smt mounting type.
- Rated current 1.5a, contact resistance 30 mohms max.
- Ul94v-0, -55°c to 85°c operating temperature.
Main Specifications:
General Information:
| Product No.: | SATA-A11-PM-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | SMT | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
