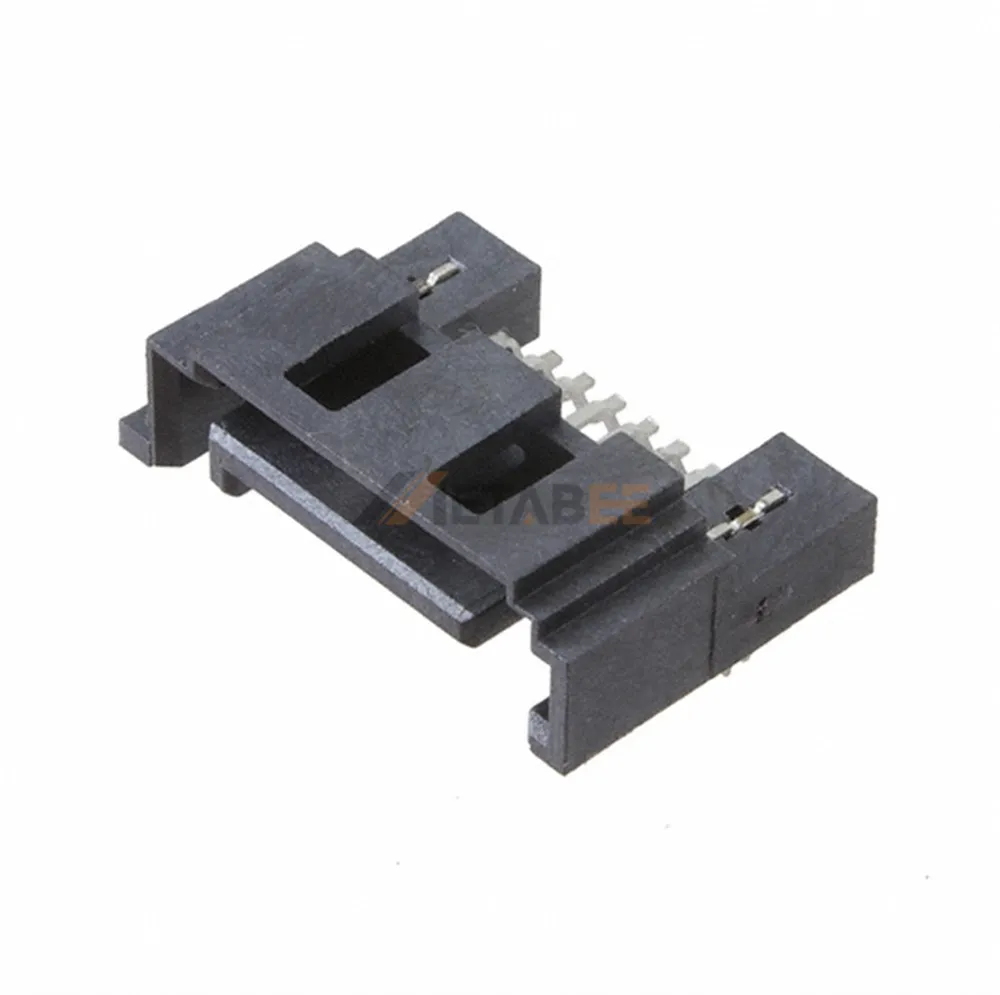

SATA 7 Pin Plug, Surface Mount, Right Angle
Introduction:
he sata 7 pin plug, surface mount, right angle is engineered for high-density pcb designs requiring dependable data transmission in tight mechanical enclosures. Featuring a single port male interface with seven signal positions, this right angle connector provides a low-profile footprint that routes cables flush along the printed circuit board. Its surface mount technology ensures rapid, precise automated placement and strong mechanical bonding, making it an ideal interconnect solution for storage drives, industrial computing backplanes, and embedded system motherboards.
Built to rigorous industrial standards, this serial ata component maintains excellent electrical integrity and operational durability under demanding conditions. It delivers a 1.5 a current rating, a maximum contact resistance of 30 mohms, and a minimum insulation resistance of 1,000 mohms to prevent signal degradation and cross-talk. Housing materials are rated ul94v-0 for flame resistance, paired with a dielectric withstanding voltage of 500 vac and a broad operating temperature range spanning -55°c to 85°c for dependable field performance
Key Features
- Single port male interface with 7 precision signal contacts.
- Surface mount design for fast automated smt assembly.
- Space-saving right angle orientation for low-profile boards.
- 1.5 a rated current with 30 mohms max contact resistance.
- Robust 500 vac dielectric withstanding and 1,000 mohms min insulation.
- Ul94v-0 flame-retardant housing rated from -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | SATA-A-PL-SMT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount, | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
