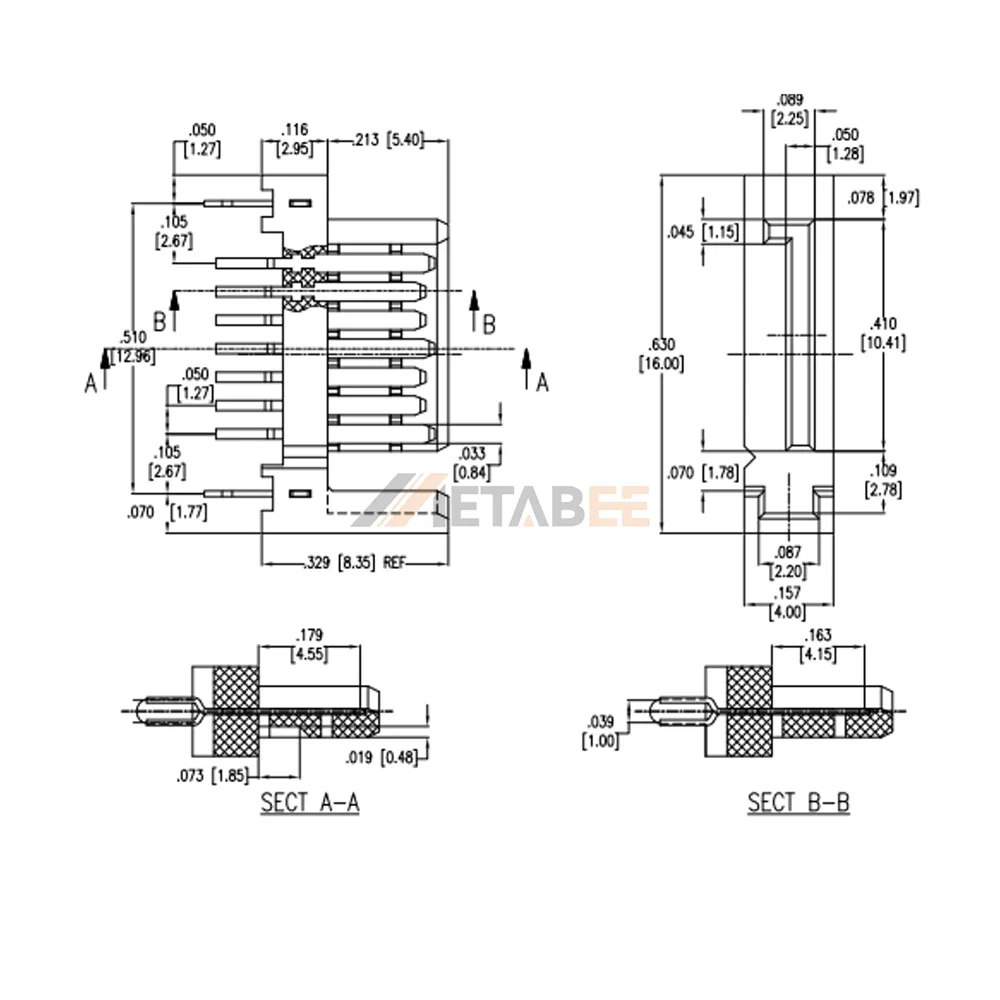

SATA 7 Pin Male Data Connector for PCB, Thru Hole, Straight
Introduction:
The sata 7 pin male data connector is designed for reliable pcb integration in storage devices, computer hardware, embedded systems, and other high-speed data applications. Featuring a single-port, 7-pin male configuration, vertical mounting orientation, and thru hole termination, it provides secure mechanical attachment and stable electrical performance on pcbs.
With a rated current of 1.5a and contact resistance of 30 mω max, this sata connector supports dependable signal transmission and long-term connection reliability. It also provides a minimum insulation resistance of 1,000 mω and a dielectric withstanding voltage of 500 vac for enhanced electrical protection.
Key Features
- Single port, 7-pin male configuration
- Vertical mounting orientation
- Pcb thru hole termination
- Rated current: 1.5a
- Contact resistance: 30 mω max
- Operating temperature: -55°c to +85°c
- Insulation resistance: 1,000 mω min
- Dielectric withstanding voltage: 500 vac
- Ul94v-0 flame-retardant material
Main Specifications:
General Information:
| Product No.: | SATA-C-PR-VT-BL-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Straight | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
