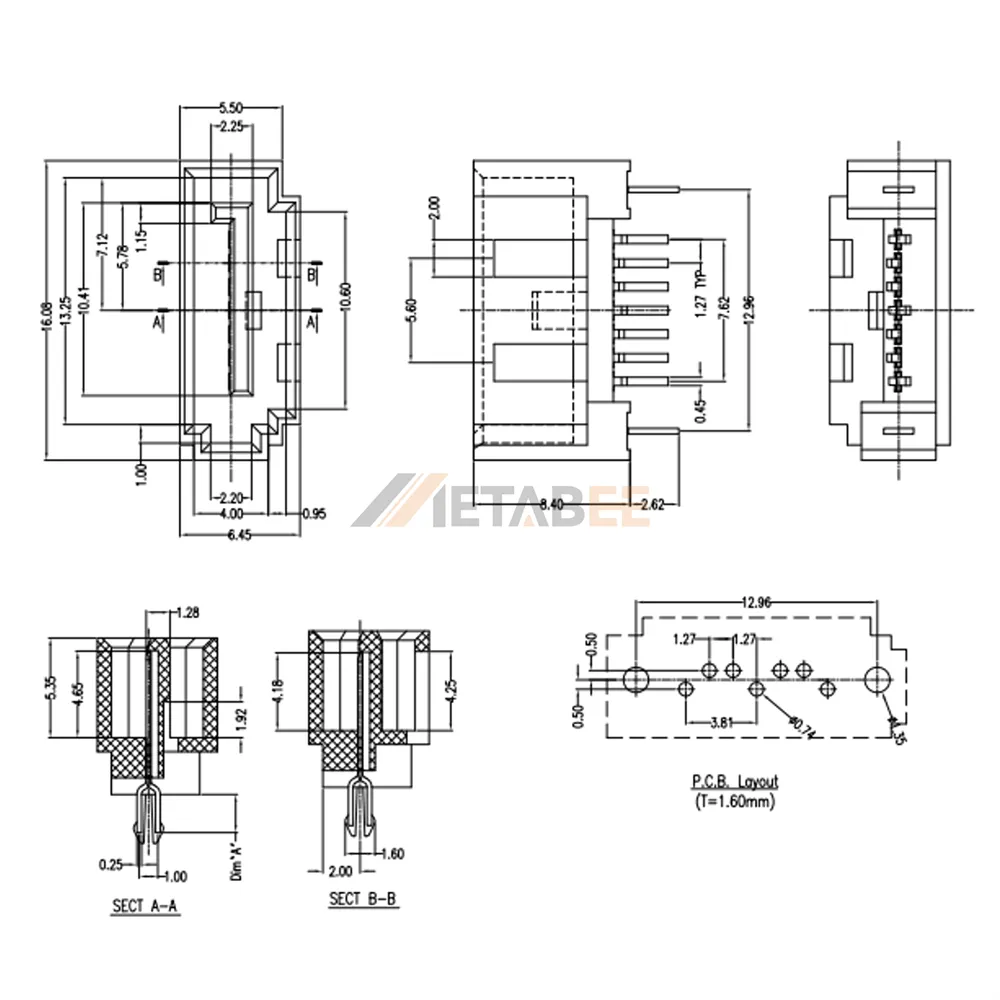

SATA 7 Pin Male Connector for PCB, Thru Hole, Vertical
Introduction:
The sata 7 pin male connector for pcb is designed for reliable sata 3.0 data connections in computers, storage devices, industrial equipment, and other electronic applications. Featuring a single port, 7 pin male interface, vertical mounting orientation, and thru hole installation, it provides stable mechanical retention and efficient pcb integration.
With a rated current of 1.5a, this sata connector offers dependable electrical performance for high-speed data applications. Contact resistance is 30 mω max, insulation resistance is 1,000 mω min, and dielectric withstand voltage is 500 vac. The ul94-v0 flame-retardant construction and -55°c to 85°c operating temperature range support reliable performance in demanding environments.
Key Features
- 7 pin male sata interface
- Single port design
- Vertical mounting orientation
- Thru hole pcb mounting
- 1.5a rated current
- UL 94 V-0, -55°c to 85°c
Main Specifications:
General Information:
| Product No.: | SATA-A-PL-VT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
