SATA 7 Pin Male Connector for PCB, Thru Hole, Vertical
Introduction:
The sata 7 pin male connector for pcb, thru hole, r/a delivers high-speed serial ata connectivity for space-constrained computing and storage systems. Featuring a single port male interface with seven signal pins, this right-angle component directs cabling parallel to the circuit board, optimizing vertical clearance in slim chassis enclosures. Engineered for standard through-hole soldering, it ensures superior mechanical anchoring and long-term vibration resistance on industrial printed circuit boards.
Designed to meet rigorous electrical requirements, this connector supports a rated current of 1.5 a while maintaining a maximum contact resistance of 30 mohms and a minimum insulation resistance of 1,000 mohms for clean data transmission. Constructed with ul94v-0 flame-retardant housing, it features a dielectric withstanding voltage of 500 vac and reliably functions across extreme operating temperatures ranging from -55°c to 85°c.
Key Features
- Single port male sata interface with 7 precision signal pins.
- Right-angle orientation saves vertical space on circuit boards.
- Through-hole mounting delivers rugged mechanical board retention.
- 1.5 a rated current with 30 mohms maximum contact resistance.
- High dielectric strength with 500 vac and 1,000 mohms insulation.
- Ul94v-0 rated flame retardance spanning -55°c to 85°c operation.

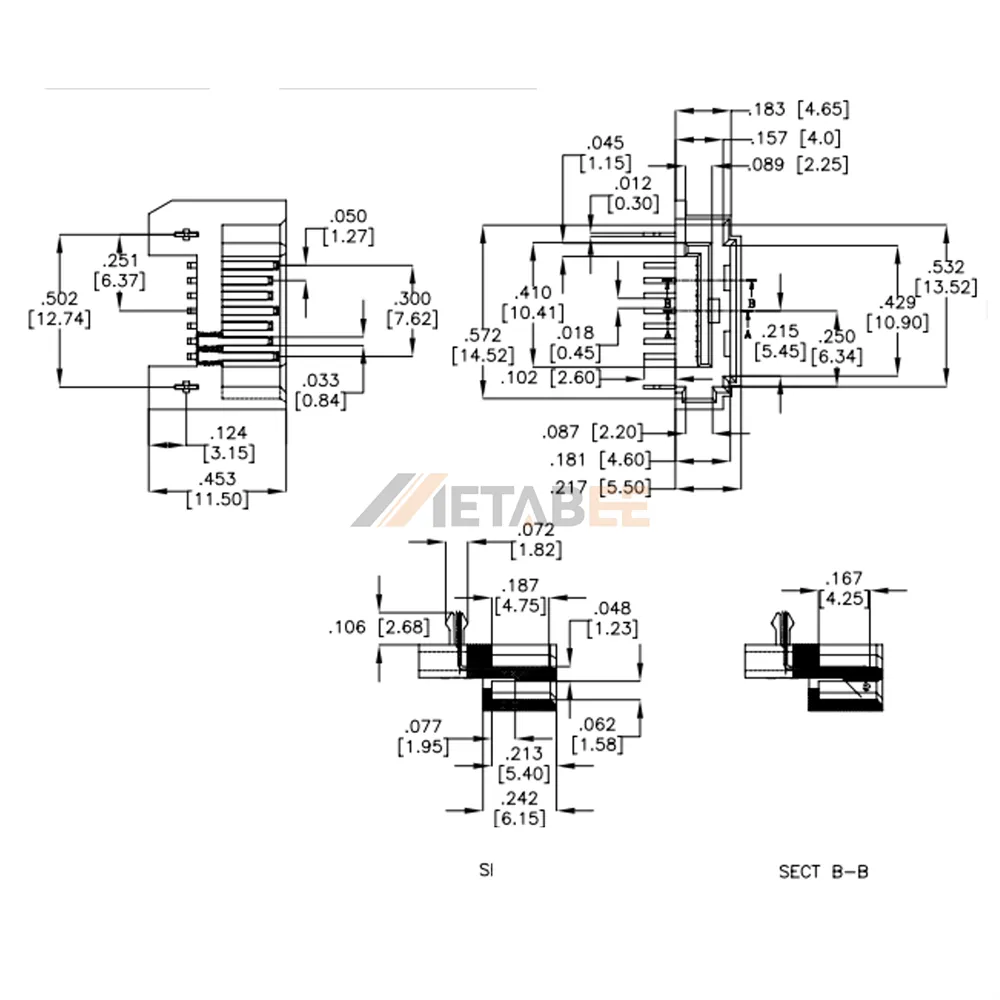

Main Specifications:
General Information:
| Product No.: | SATA-A1-PL-RT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
