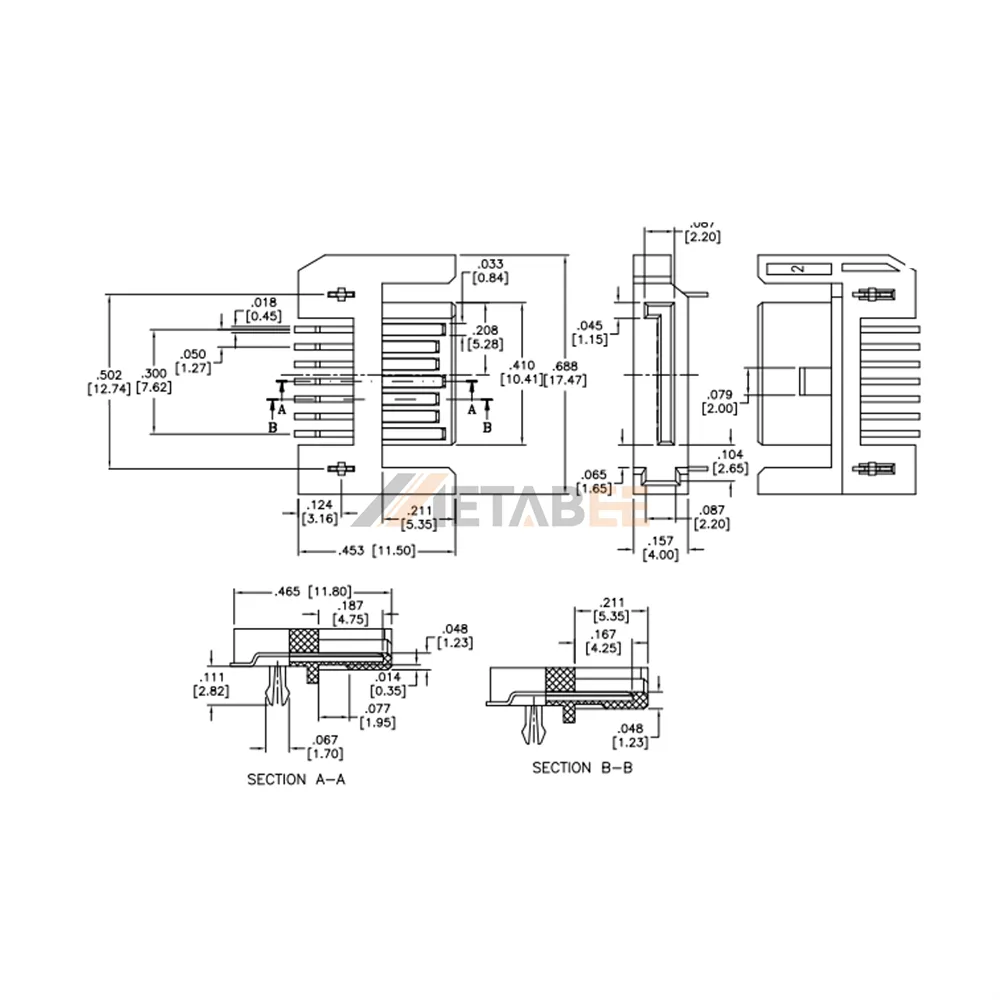

SATA 7 Pin Male Connector for PCB, Surface Mount, R/A
Introduction:
The sata 7 pin male connector is designed for pcb surface mount applications and features a right-angle configuration for space-efficient board integration. Its single-port, 7-pin design provides a reliable interface for sata data transmission in storage devices, embedded systems, and other high-speed electronic equipment.
Rated for 1.5a current, this connector features a maximum contact resistance of 30 mω and minimum insulation resistance of 1,000 mω for stable electrical performance. It withstands 500 vac dielectric voltage and operates from -55°c to 85°c. The ul94v-0 flame-retardant rating provides enhanced safety for demanding electronic applications.
Key Features
- 7-pin male sata connector
- Single-port configuration
- Right-angle mounting orientation
- Pcb surface mount design
- 1.5a rated current
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-C1-PR-SMT-K-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
