SATA 7 Pin Female Data Connector for PCB, SMT, R/A
Introduction:
The sata 7 pin female data connector is designed for reliable pcb applications requiring a compact, right-angle configuration. Featuring a single-port, 7-pin female interface and surface mount technology (smt), this connector supports efficient pcb assembly while helping optimize board space and routing.
With a rated current of 1.5a and contact resistance of 30 mOhms max, the connector provides stable electrical performance for sata data transmission. It offers insulation resistance of 1,000 mOhms min and a dielectric withstand voltage of 500 vac, supporting dependable insulation and electrical safety. The connector operates across a temperature range of -55°c to 85°c and features a ul94-v0 flame-retardant housing for demanding electronic applications.
Key Features
- 7-pin female sata data connector
- Single-port configuration
- Right-angle mounting orientation
- PCB smt installation
- 1.5a rated current and 30 mOhms max contact resistance
- -55°c to 85°c operating temperature with ul94-v0 flame rating
Main Specifications:
General Information:
| Product No.: | SATA-C-PL-SMT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |

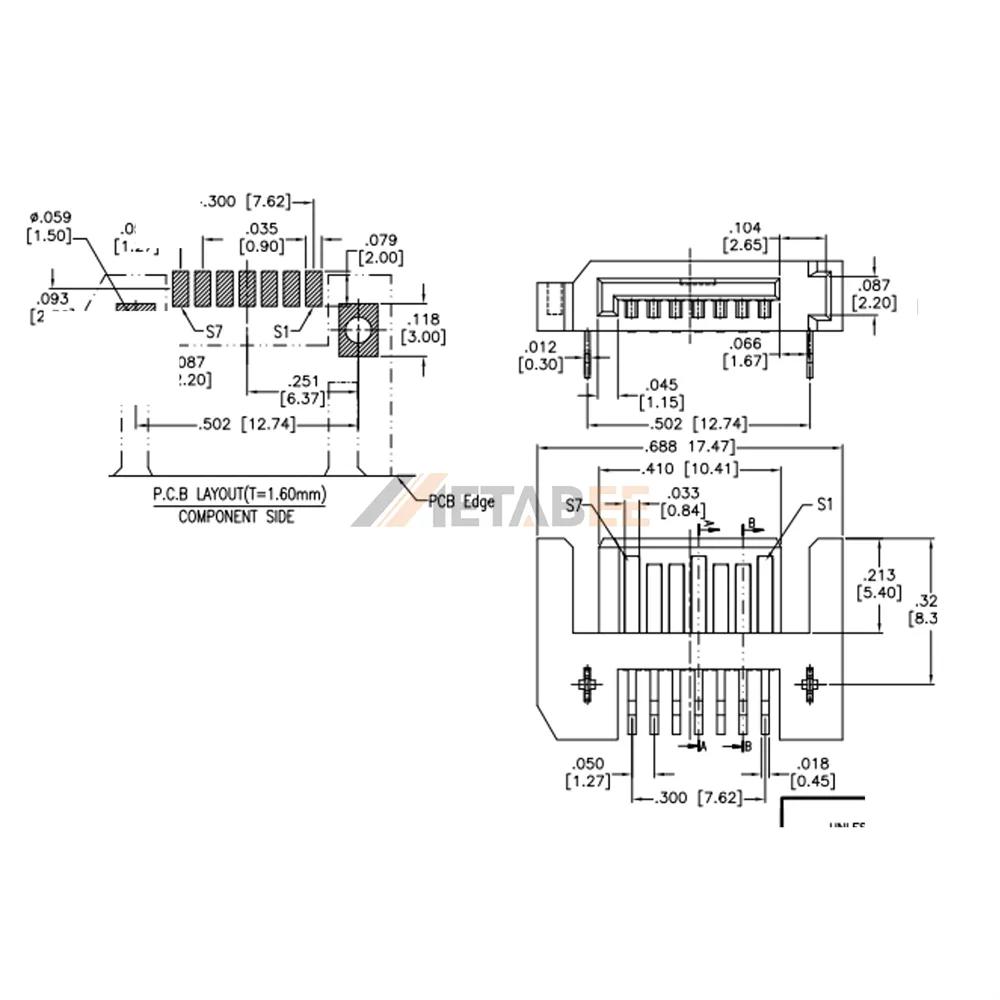

Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
