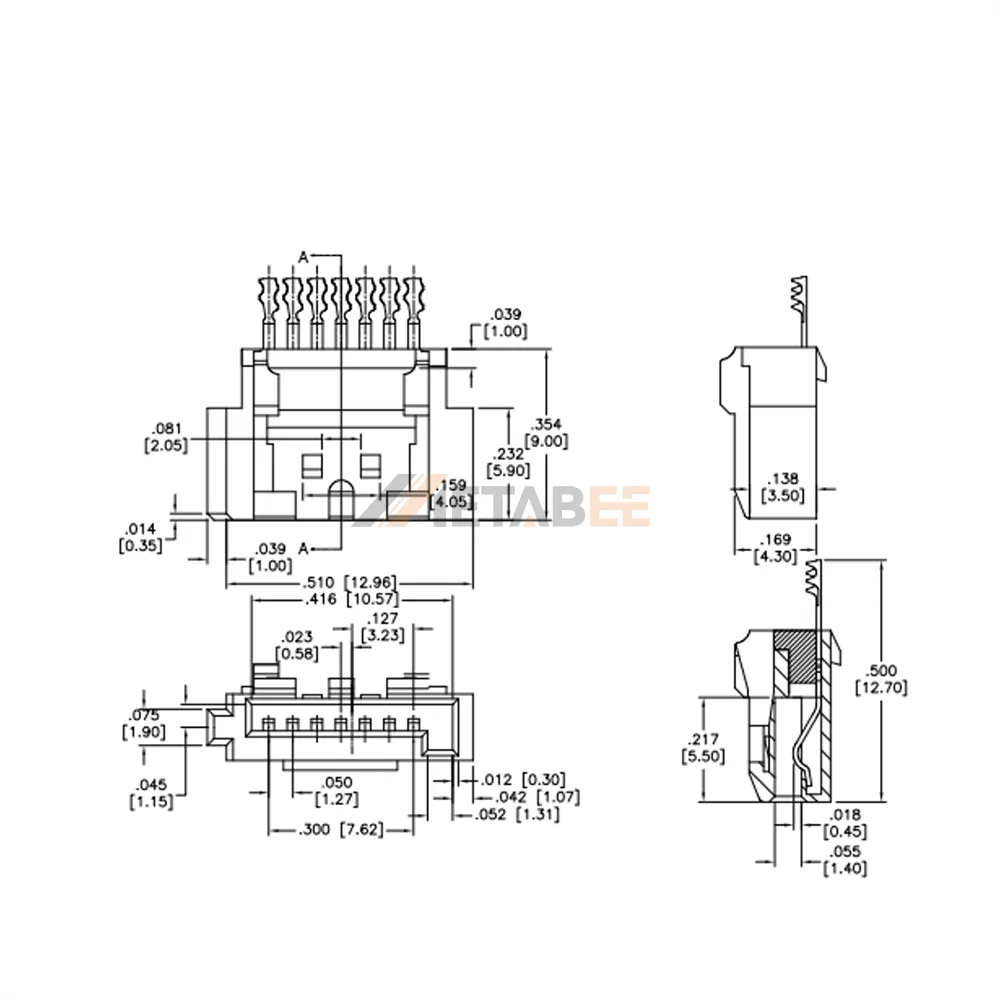

SATA 7 Pin Female Connector, Solder Overmolding Type
Introduction:
Sata 7 pin female connector, solder overmolding type. This connector features a female gender, single port, and 7 pins, making it ideal for sata data connections in storage devices and motherboards. The solder overmolding design ensures a secure and durable termination, suitable for applications requiring reliable signal transmission.
With a rated current of 1.5a, contact resistance of 30 mohms max, insulation resistance of 1,000 mohms min, and dielectric withstanding voltage of 500 vac, it delivers stable electrical performance. The connector meets ul94v-0 flammability standards and operates from -55°c to 85°c, ensuring safety and reliability in demanding environments.
Key Features
- Female single port 7 pin sata connector.
- Solder overmolding type for secure termination.
- Rated current 1.5a.
- Contact resistance 30 mohms max.
- Insulation resistance 1,000 mohms min.
- Ul94v-0 flame retardant, -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | SATA-A-7P-F-OM | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | N/A | |
| Mounting Method: | Cable Type | |
| Mounting Feature: | N/A | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
