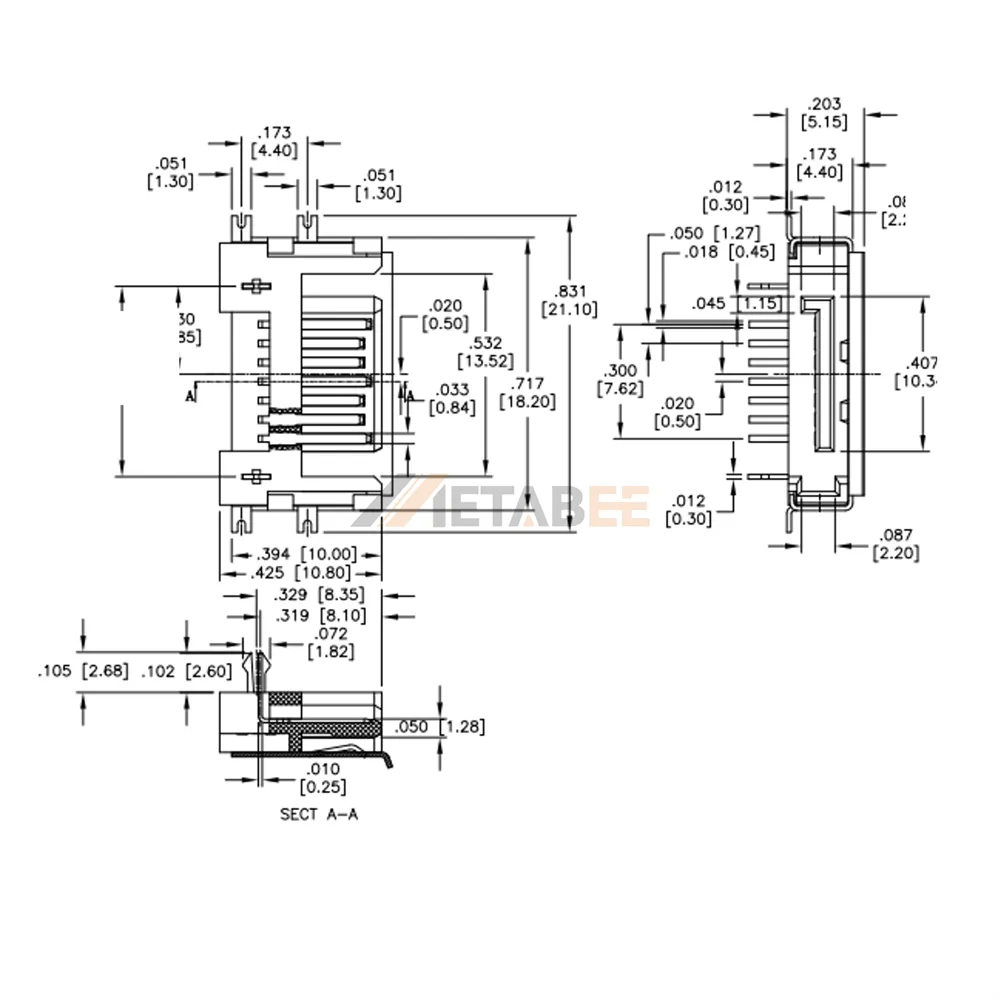

SATA 7 Pin Data Receptacle, Thru Hole, Right Angle
Introduction:
Introducing the SATA 7 Pin Data Receptacle, designed for reliable connectivity in various applications. This female connector features a single port with a right-angle mounting orientation, making it ideal for PCB thru-hole installations. With a rated current of 1.5A, it ensures efficient data transfer while maintaining low contact resistance of 30 mOhms max.
Key Features
- Connector Type: Female, single port, 7 pin configuration.
- Mounting Orientation: Right angle, perfect for space-constrained designs.
- Installation Type: PCB thru hole, ensuring secure and stable connections.
- Rated Current: 1.5A, suitable for a variety of electronic devices.
- Contact Resistance: 30 mOhms max, promoting optimal performance.
- Temperature Range: Operates effectively from -55°C to 85°C, ensuring durability in extreme conditions.
Main Specifications:
General Information:
| Product No.: | SATA-B-PR-RT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
