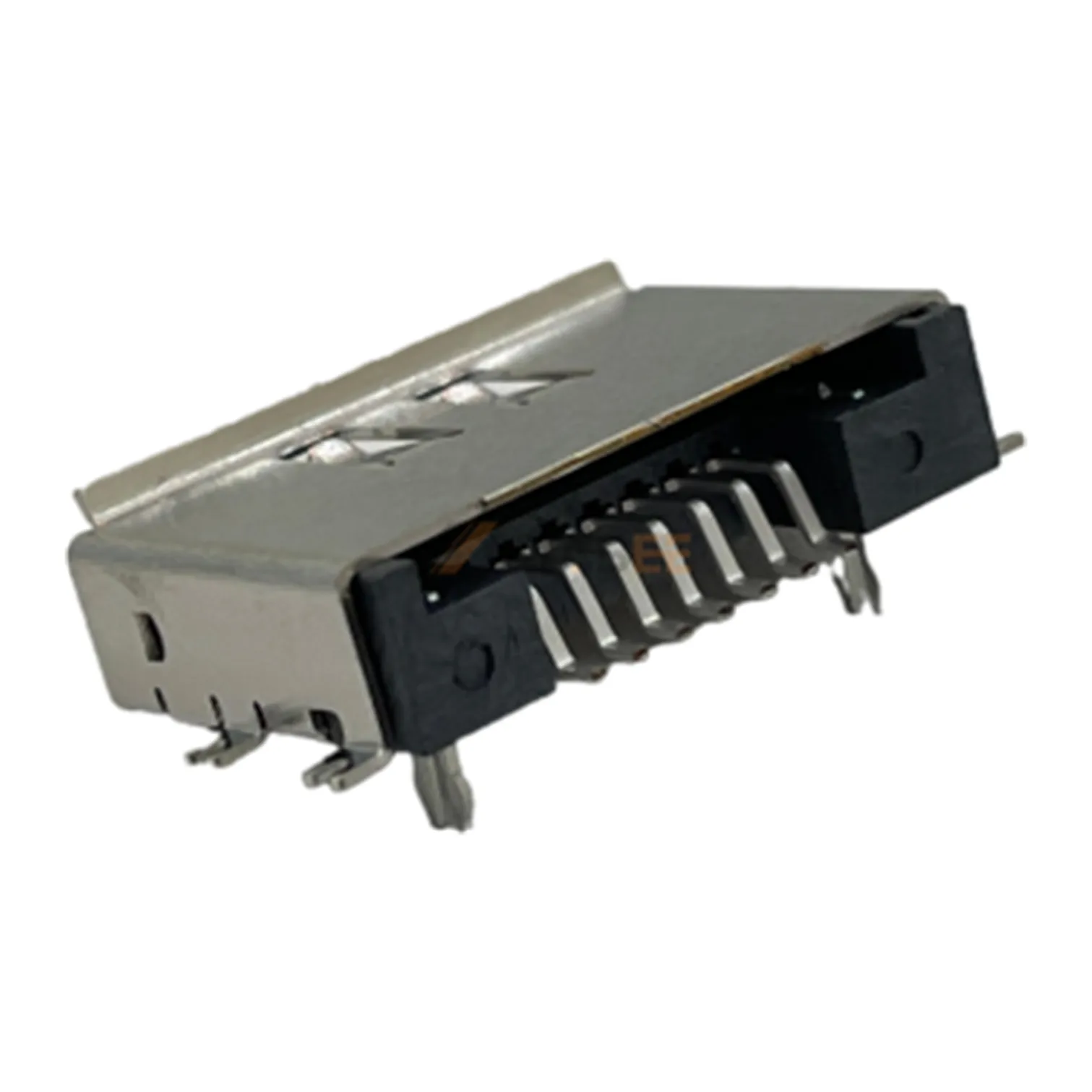

SATA 7 Pin Data Receptacle, PCB Surface Mount, R/A
Introduction:
The sata 7 pin data receptacle is a female, single-port connector designed for pcb surface mount applications. Its right-angle configuration helps optimize board space while providing a secure and reliable sata data connection for storage devices, embedded systems, and electronic equipment.
Rated for 1.5a, the connector features a maximum contact resistance of 30 mω, minimum insulation resistance of 1,000 mω, and a dielectric withstand voltage of 500 vac. The ul94v-0 flame-retardant housing supports reliable operation across a temperature range of -55°c to +85°c.
Key Features
- Female, single-port, 7-pin design
- Pcb surface mount installation
- Right-angle mounting orientation
- 1.5a rated current
- 500 vac dielectric withstand voltage
- Ul94v-0 flame retardant, -55°c to +85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-B-PL-SMT-K-BL | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Right Angle | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
