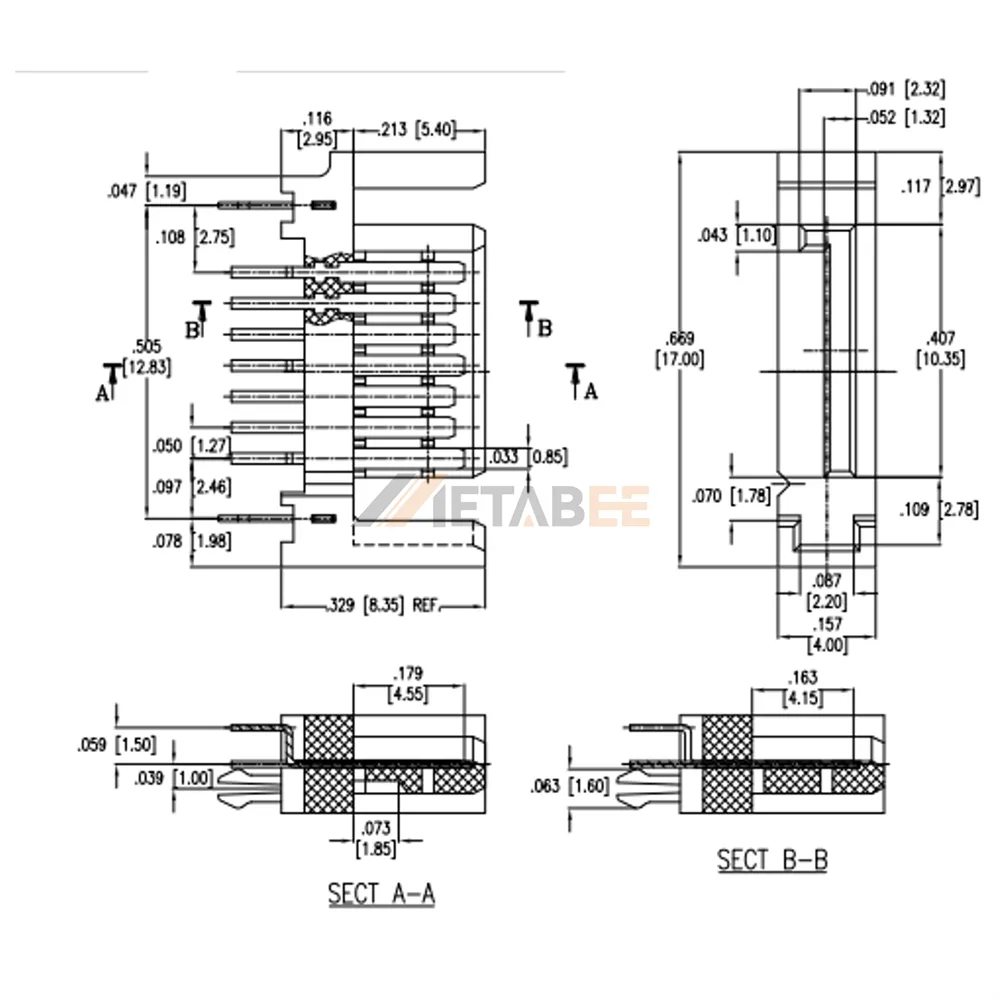

SATA 7 Pin Data Plug, PCB Thru Hole, Vertical
Introduction:
Sata 7 pin data plug, pcb thru hole, vertical. this male connector features a single port with 7 pin configuration and vertical mounting orientation. it is designed for pcb thru hole installation, making it ideal for sata data transmission in storage devices.
Rated current 1.5a, contact resistance 30 mohms max, insulation resistance 1,000 mohms min, and dielectric withstanding voltage 500 vac. the connector meets ul94v-0 flammability rating and operates from -55°c to 85°c.
Key Features
- Male Single Port, 7 Pin
- Vertical Mounting Orientation
- Pcb Thru Hole Type
- 1.5A Rated Current
- Ul94V-0 Flame Retardant
- -55°C To 85°C Operating Temperature
Main Specifications:
General Information:
| Product No.: | SATA-A3-PL-VT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Left Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |

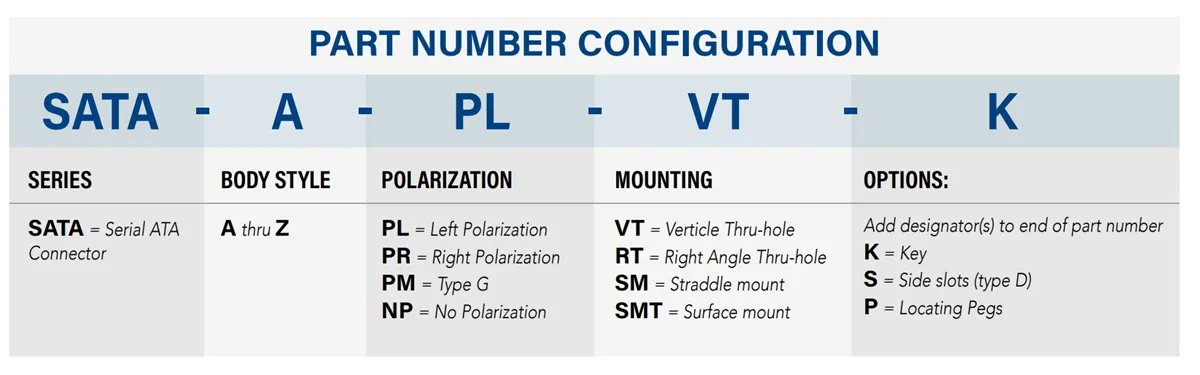

Part Number Configuration

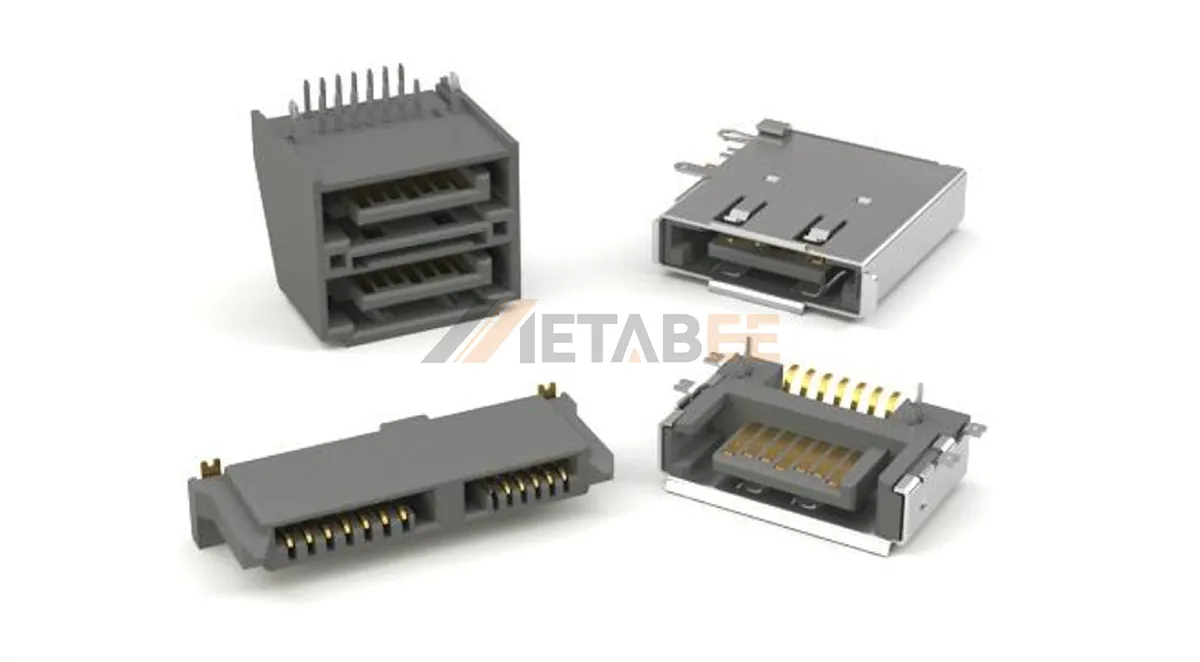

Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
