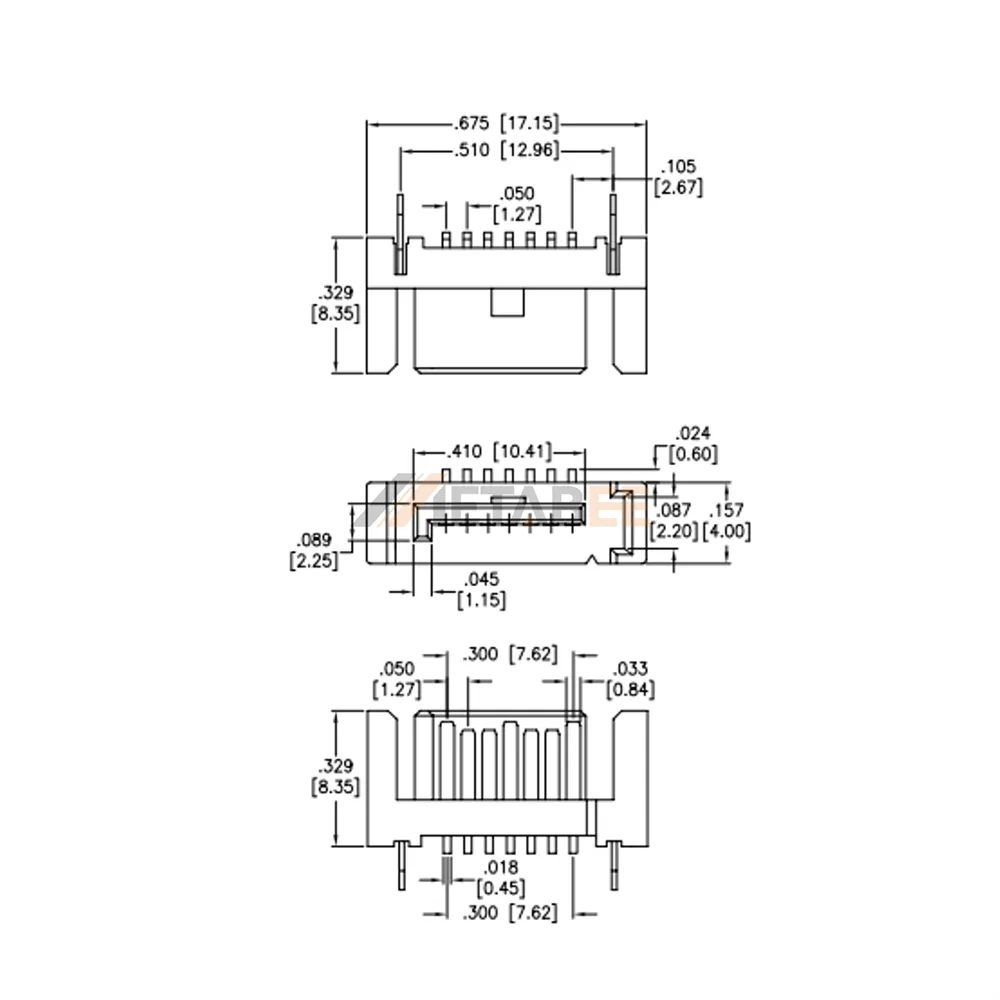

SATA 7 Pin Data Female Connector, SMT, PCB Mount, Vertical
Introduction:
This sata 7 pin data female connector, smt, pcb mount, vertical is designed for reliable board-level data transmission. it features a single port, 7 pin female interface, vertical mounting orientation, and pcb surface mount termination. the connector supports 1.5a current rating, 30 mohms max contact resistance, 1,000 mohms min insulation resistance, and 500 vac dielectric withstanding voltage. it meets ul94v-0 flammability and operates from -55°c to 85°c.
the vertical smt design enables compact pcb layouts and stable solder joints. the female interface ensures secure mating for sata data applications. with robust electrical and thermal performance, it suits storage, embedded, and industrial electronics.
Key Features
- 7-pin male sata connector
- Single-port configuration
- Right-angle mounting orientation
- Pcb surface mount design
- 1.5a rated current
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-C2-PR-VT-SMT-K | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Phosphor Bronze | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
