SATA 22-Pin Female PCB Connector, Dual Port, Thru Hole, Vertical
Introduction:
Sata 22-pin female pcb connector is designed for reliable data and power connectivity in storage devices, embedded systems, servers, and other electronic equipment. featuring a dual-port 7+15 pin configuration, this connector uses a vertical thru hole mounting design for secure pcb installation and stable mechanical performance.
With a rated current of 1.5a and contact resistance of 30 milliohms max, the connector provides consistent electrical performance. it offers a minimum insulation resistance of 1,000 megohms and a dielectric withstanding voltage of 500 vac. the ul94v-0 flame-retardant housing supports safe operation across a -55°c to 85°c temperature range.
Key Features
- Dual-port 7+15 pin configuration
- Vertical PCB mounting
- Thru hole termination
- 1.5a rated current
- -55°c to 85°c operating temperature

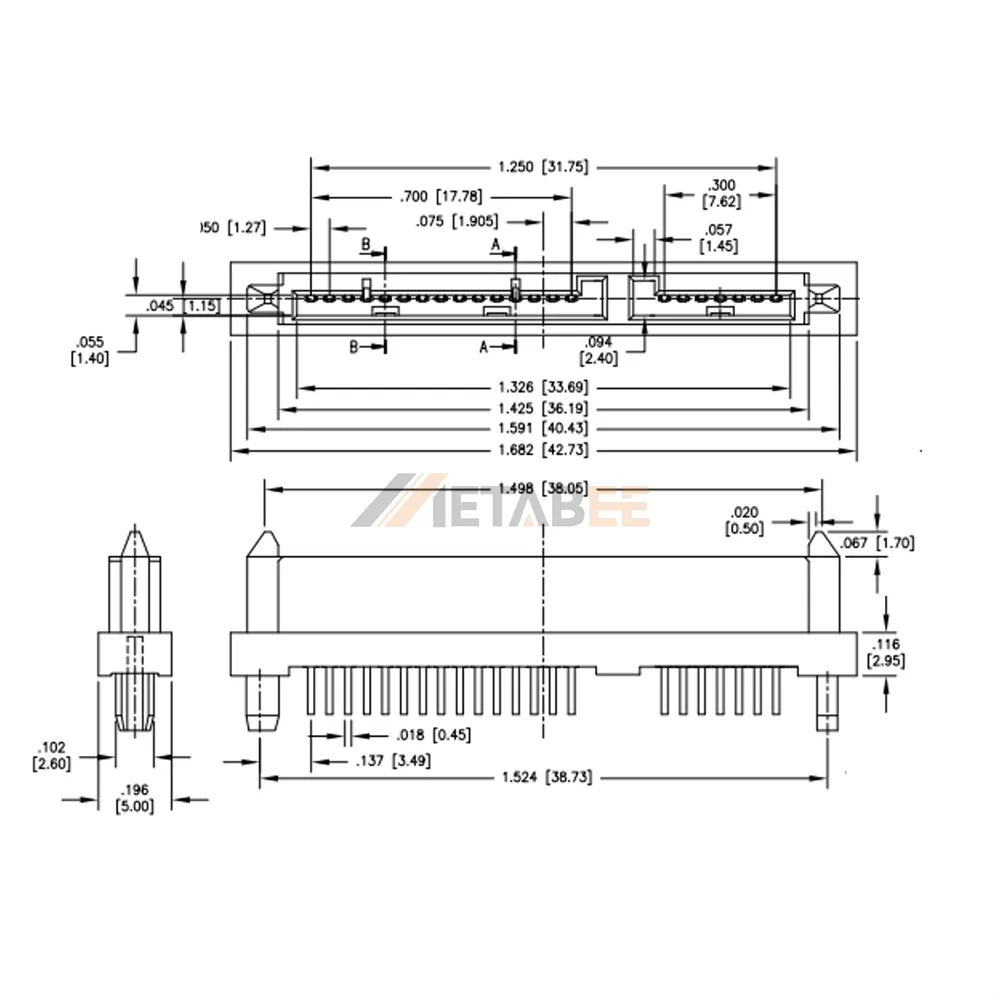

Main Specifications:
General Information:
| Product No.: | SATA-A4-PM-VT-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 7+15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Polarization: | Middle Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
