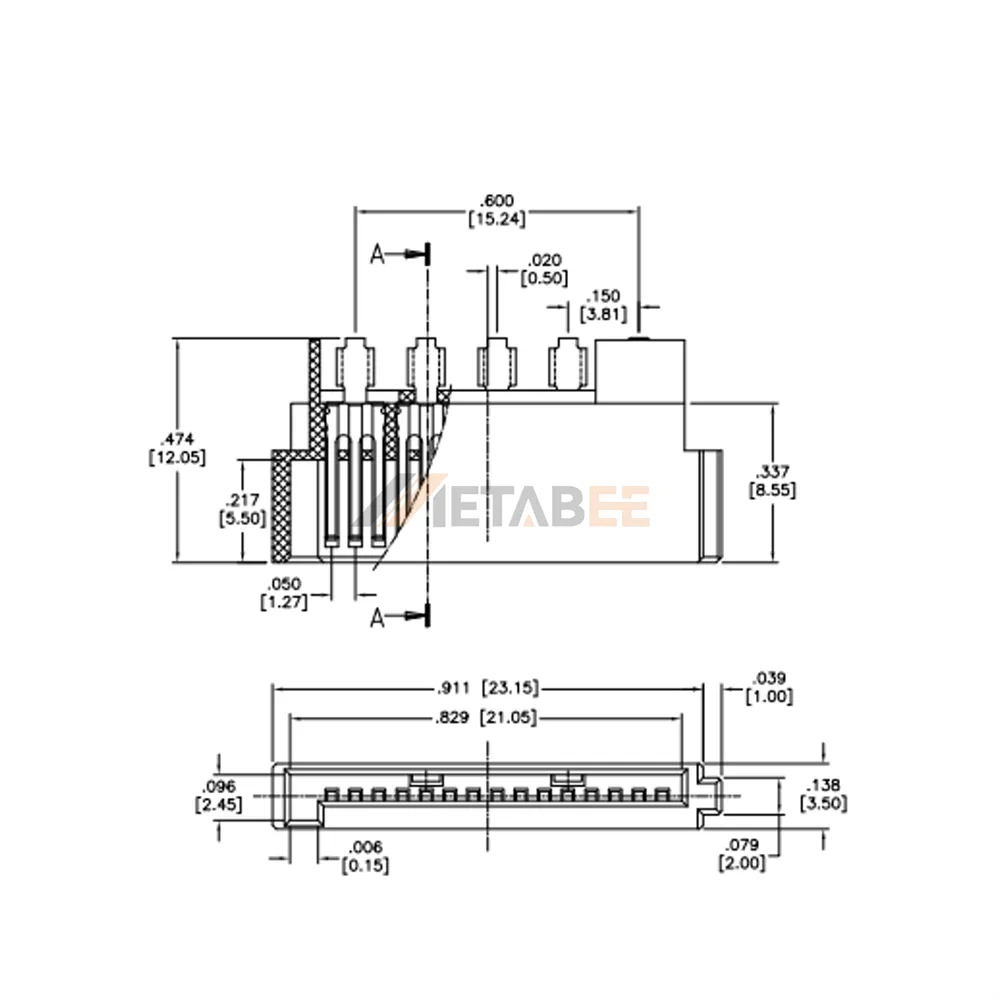

SATA 15 Pin Power Receptacle, Solder Type, Straight
Introduction:
Optimize your power distribution assemblies with this high reliability sata 15 pin power receptacle featuring a straight mounting orientation and solder termination. Engineered for secure and direct cable or board integration, it ensures uninterrupted power transmission across professional electronic hardware.
Built to perform under rigorous operational demands, this female single port connector provides robust electrical isolation with a 1.5a rated current, 500 vac dielectric strength, and minimal contact resistance. The housing is molded from ul94v-0 flame retardant thermoplastic, maintaining structural integrity across a wide operating temperature span of -55°c to +85°c.
Key Features
- Straight solder termination design
- Female 15 pin single port interface
- 1.5a rated continuous current
- 500 vac dielectric withstanding voltage
- Ul94v-0 high grade flame retardant housing
- -55°c to +85°c operating temperature range
Main Specifications:
General Information:
| Product No.: | SATA-A9-PR-RT-F-S-15 | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 15 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
