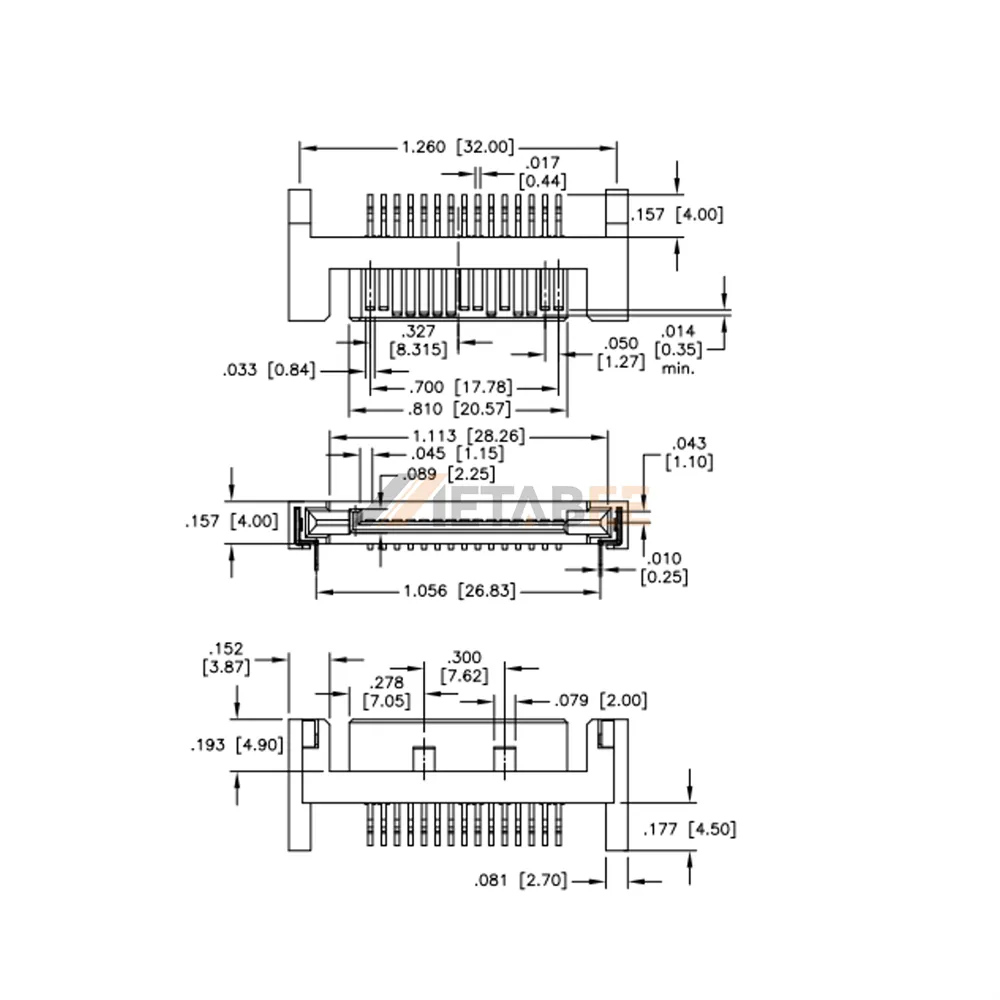

SATA 15 Pin Male Power Supply Connector for PCB, SMT, R/A
Introduction:
SATA 15 Pin Male Power Supply Connector for PCB, SMT, R/A is a single-port, right-angle connector built for board-level power input. It supports PCB SMT mounting and offers a compact footprint for space-limited designs.
This male SATA power connector is rated 1.5A with contact resistance 30 mOhms max, insulation resistance 1,000 mOhms min, and dielectric withstanding voltage 500 VAC. It meets UL94V-0 flammability and operates from -55°C to 85°C, making it suitable for reliable power connections in various electronic assemblies.
Key Features
- Single port, 15 pin male SATA power connector.
- Right-angle mounting orientation for PCB SMT.
- 1.5A current rating.
- 30 mOhms max contact resistance.
- 1,000 mOhms min insulation resistance and 500 VAC dielectric withstanding voltage.
- UL94V-0 flame retardant, -55°C to 85°C operating temperature.
Main Specifications:
General Information:
| Product No.: | SATA-A5-PR-SMT | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 15 Pin | |
| Number of Ports: | Dual Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Polarization: | Right Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
