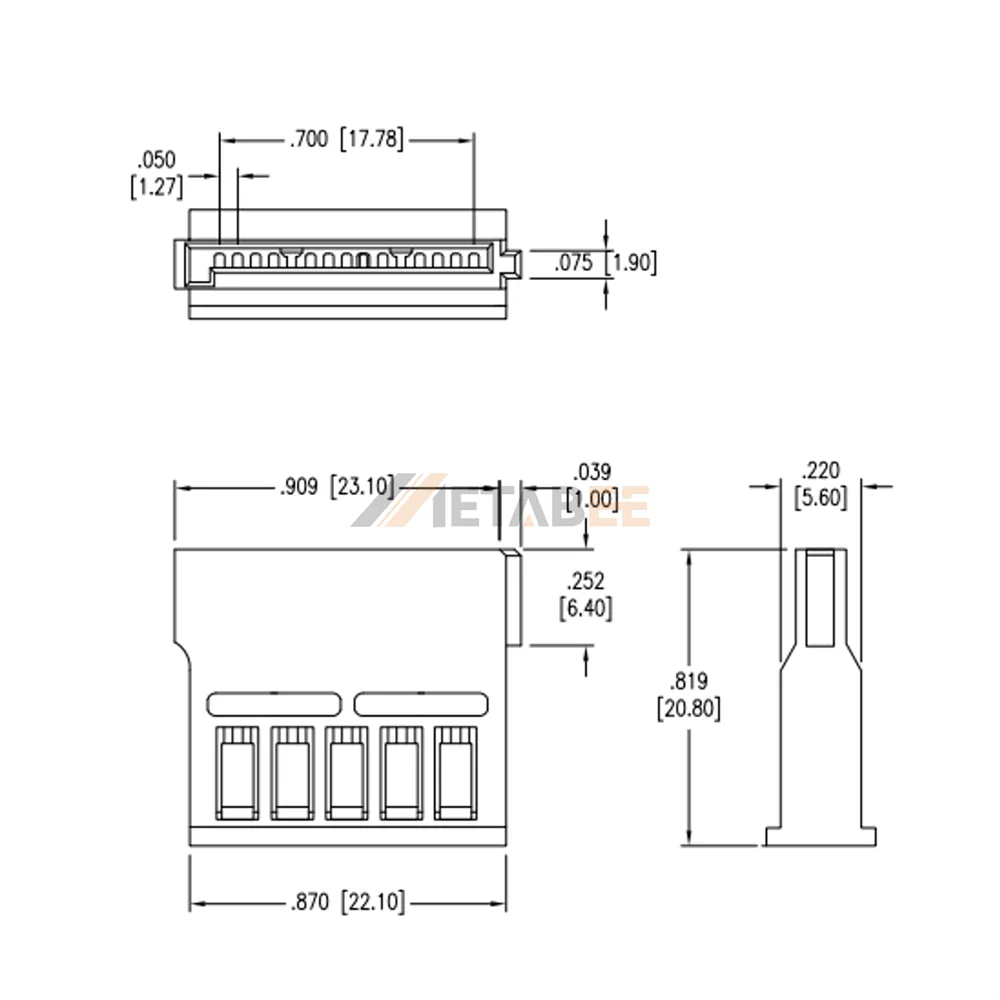

SATA 15 Pin Female Power Supply Connector Housing, Crimp Type and Poke
Introduction:
The sata 15 pin female power connector housing is designed for cable-type applications and features a single-port, 15-pin configuration. Its crimp-type and poke design supports secure wire termination and reliable integration into sata power cable assemblies for storage devices, computers, and other electronic equipment.
Rated for 1.5a, this connector housing provides a maximum contact resistance of 30 mω and minimum insulation resistance of 1,000 mω. It offers 500 vac dielectric withstanding voltage, ul94v-0 flame retardancy, and reliable operation across a -55°c to 85°c temperature range.
Key Features
- 15-pin female sata power housing
- Single-port configuration
- Crimp-type and poke design
- Cable-type installation
- 1.5a rated current
- -55°c to 85°c operating temperature
Main Specifications:
General Information:
| Product No.: | SATA-CH-B-15P | |
| Connector Series: | SATA Connectors | |
| Brand: | Metabee | |
| Number of Contacts: | 15 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Female | |
| Mounting Orientation: | Straight | |
| Mounting Method: | Cable type | |
| Mounting Feature: | N/A | |
| Polarization: | No Polarization | |
| Mating Cycles: | 500 Cycles | |
| Other Feature: | None |
Materials and Plating:
| Contact Material: | Brass | |
| Plating: | Gold flash over nickel underplate on mating area, Tin over nickel underplate on tails |
|
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Current rating: | 1.5 ampere per contact. | |
| Contact resistance: | 30 mOhms max. | |
| Insulation resistance: | 1,000 Mohms min | |
| Dielectric withstanding voltage: | 500 VAC |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Part Number Configuration
Applications:
SATA Connector is an interface system for connecting SATA storage devices to host systems, primarily supporting data transmission and power delivery in HDDs, SSDs, servers, NAS systems, and industrial computers.
Here are some key applications:
- Computer Systems
- Storage Systems
- Servers
- Industrial Equipment
- Consumer Electronics
