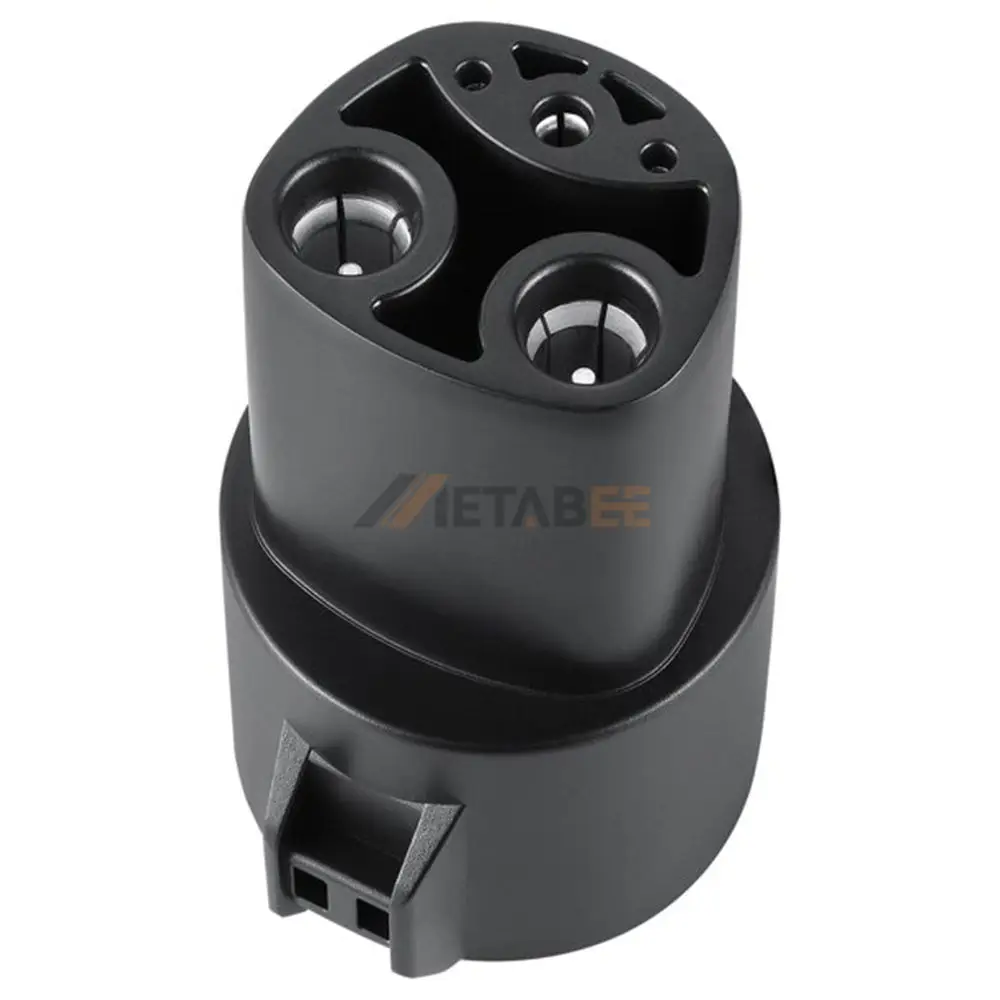

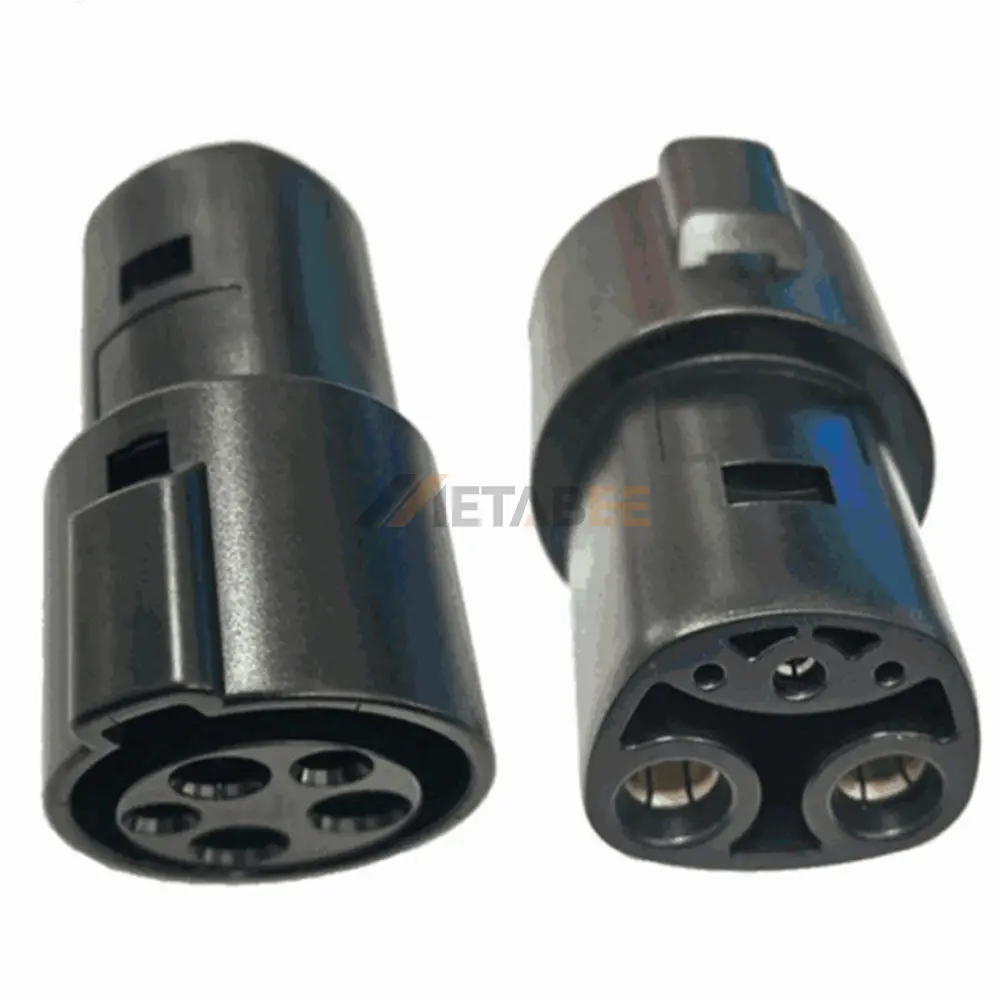

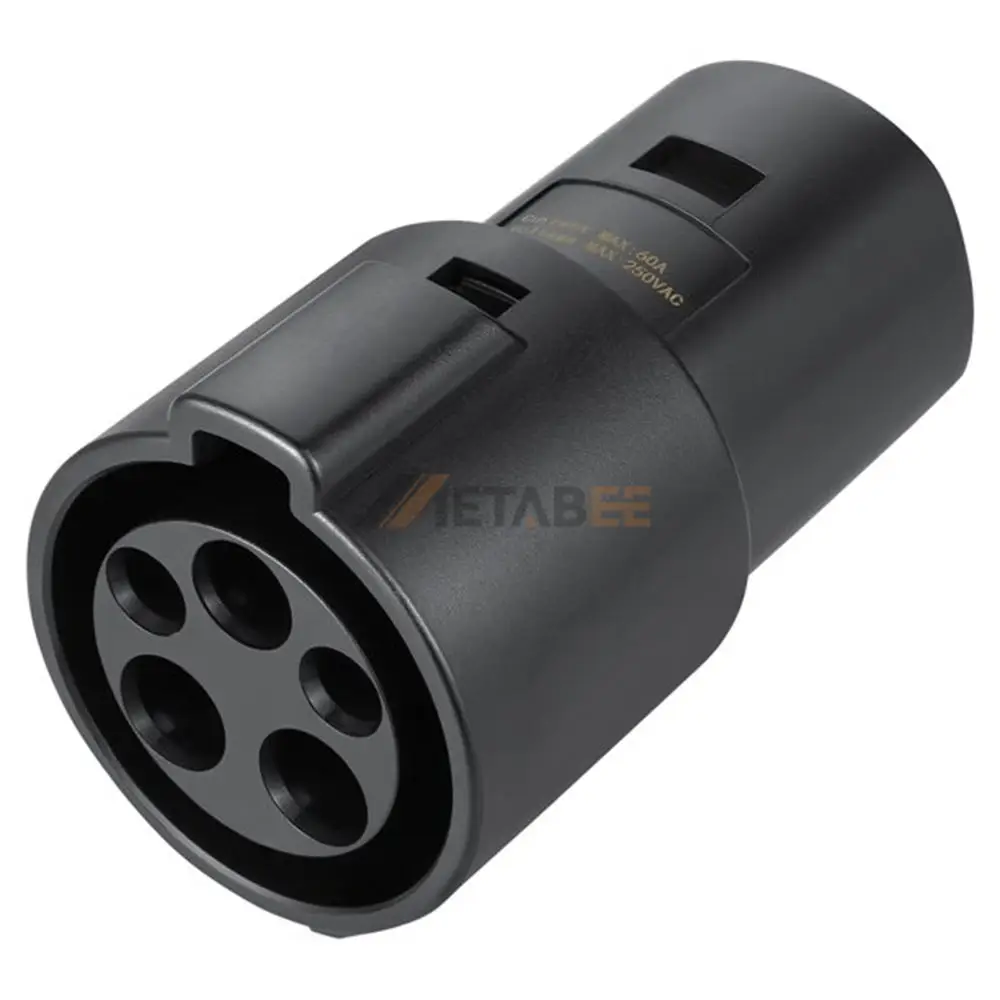

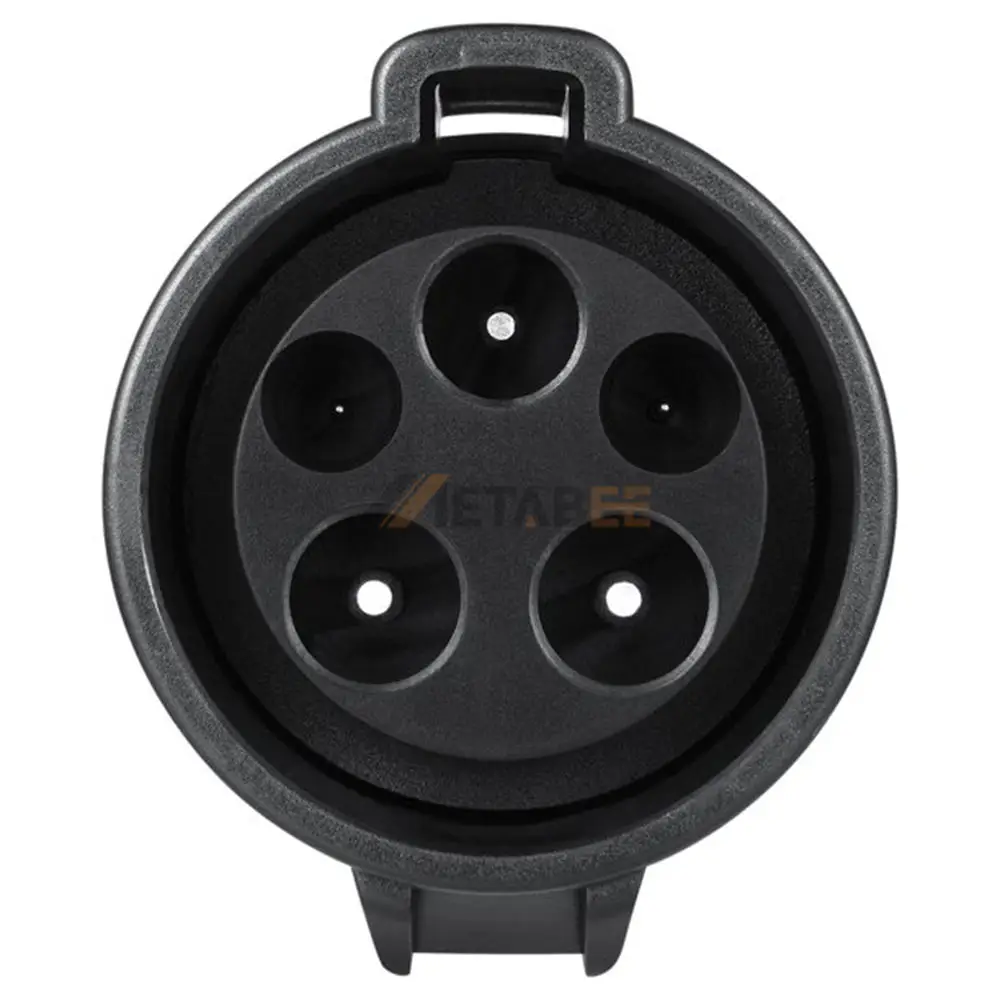

SAE J1772 Plug to Tesla AC Charging Adapter for EV, 250V, 60A
Introduction
Maximize your charging freedom with our high-performance SAE J1772 to Tesla AC Adapter. This essential accessory allows Tesla owners to connect seamlessly to standard Level 1 and Level 2 J1772 charging stations across the country. Capable of handling 250V and 60A, this single-phase adapter supports a maximum charging power of 8kW, ensuring your vehicle charges efficiently whether you are at home or using public infrastructure.
Engineered for safety and longevity, the adapter features a durable thermoplastic shell with a UL94V-0 flame-retardant rating. Inside, silver-plated copper alloy contacts provide superior conductivity and prevent overheating. Built to perform in harsh conditions, it carries an IP65 protection rating against dust and water and operates reliably in extreme temperatures from -30°C to 50°C.
Key Features:
- Universal Compatibility: Converts SAE J1772 plugs for use with Tesla EV ports.
- Optimized Power: Rated for 250V/60A with a max output of 8kW.
- High Conductivity: Silver-plated copper alloy contacts for efficient energy transfer.
- Weatherproof Design: IP65-rated housing resists water and dust ingress.
- Fire Safety: Constructed with UL94V-0 flame-retardant thermoplastic materials.
- Wide Operating Range: Functions perfectly in temperatures from -30°C to 50°C.
Main Specifications:
General Information:
| Part No.: | YC-TES-SAE-60A | |
| Product Series: | EV Charging Adapters | |
| Brand: | Metabee | |
| Charging Standards: | SAE J1772 | |
| Rated Type: | AC | |
| Power Phase: | Single Phase | |
| Connector Gender: | Plug | |
| Mating Cycles: | ＞10000 Times | |
| Color: | Black | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Thermoplastic | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Silver Plated |
Electrical Performance:
| Rated Voltage: | 250V | |
| Rated Current: | 32A | |
| Contact resistance: | 0.5mΩ max | |
| Insulation Resistance: | >2000MΩ（DC1000V) | |
| Max charging power: | 65kW |
Environmental Performance:
| IP Rating: | IP65 | |
| Flammability Rating: | UL94V-0 | |
| Operating Temperature: | -30°C to +50°C |
EV Charging Connector Adapter
There are currently four DC fast plugs: CHAdeMO, SAE Combo (CCS), GB (Guobiao from China), and the Tesla supercharger plug. All mainstream electric models produced today are compatible with SAE J1772 charging stations. But Tesla vehicles need a charging adapter to use these standard stations.
Applications of this SAE J1772 Plug to Tesla AC Charging Adapter for EV:
The GB Standards AC Charging Connectors are the standard used for electric vehicles in China. This standard is primarily for slower AC charging, often referred to as Level 1 or Level 2 charging. And their applications are diverse across various charging environments.
Here are some main applications:
- Private Residential Charging
- Residential Community Charging
- Workplace Charging Stations
- Public Urban Charging Stations
- Commercial and Retail Parking
- Highway Rest Area Charging
- Fleet and Commercial Vehicle Depots
- Municipal and Public Parking Lots
