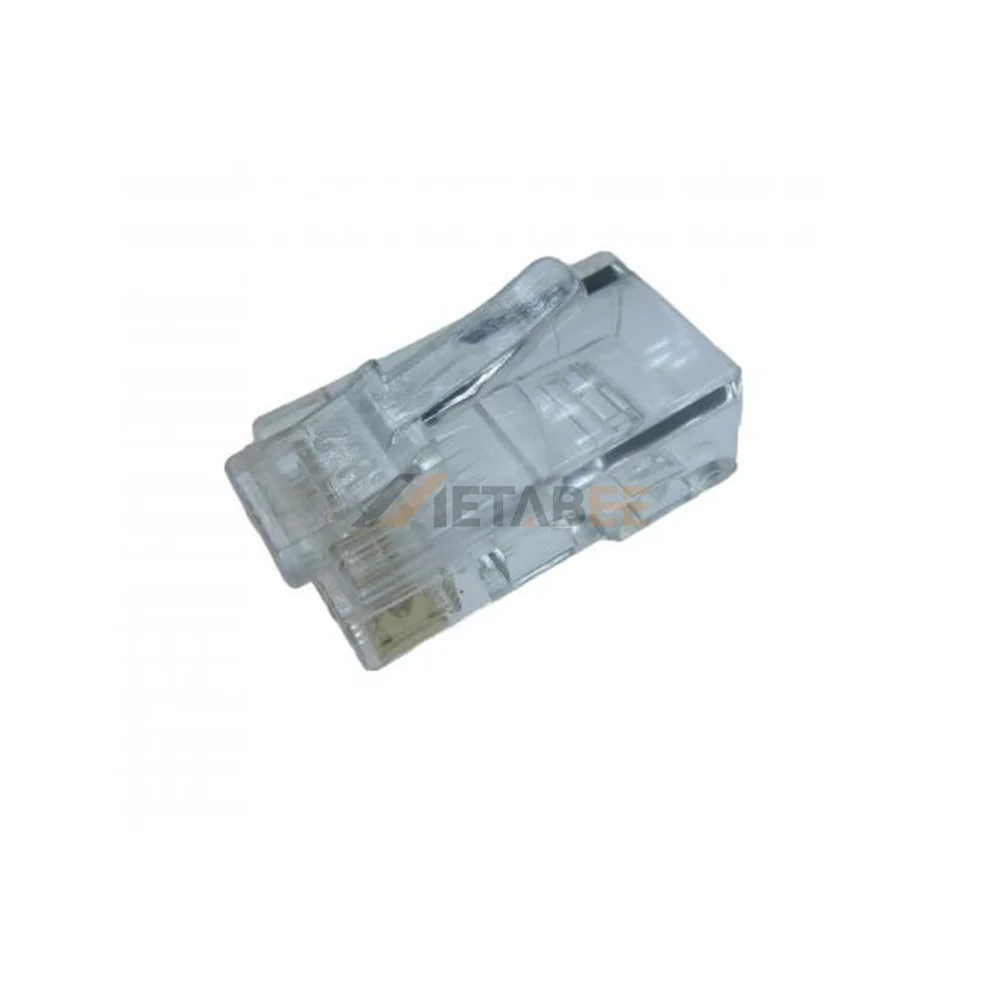

RJ50 Modular Plug for 24-26AWG Round Stranded Cable, 10P10C, Unshielded, Cat3, Long Body
Introduction:
This modular RJ50 10P10C plug provides a specialized termination solution for 24-26AWG round stranded cables. The unshielded Cat3 performance is suited for standard voice-grade circuits and low-speed data applications. Featuring a long body, the housing provides extra space for internal wire management and ensures a stable fit within equipment ports. Its physical construction allows for reliable contact with multiple copper conductors to maintain signal integrity. Engineers often select this component for proprietary hardware that requires a high-density pin configuration. The robust shell protects the internal pins during insertion and removal in various telecommunication environments.
Key Features
- RJ50 10P10C Interface: Supports high-density ten-pin connectivity for specialized equipment.
- Round Stranded Compatibility: Designed for secure termination on 24-26AWG cables.
- Long Body Housing: Facilitates easier wire alignment and deeper port reach.
- Unshielded Cat3 Rating: Meets essential standards for reliable voice transmission links.
- Durable Construction: Ensures consistent electrical contact for proprietary networking hardware.
Main Specifications:
General Information:
| Product No.: | MTPR-1010 | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 10P10C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | CAT3 | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | 24-26 AWG | |
| Body Length: | 22.5 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | N/A | |
| Dielectric withstanding voltage: | N/A |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
