RJ45 with PoE Magjack, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Delivering power and data simultaneously is much simpler using this RJ45 PoE MagJack to connect your networking hardware. Internal magnetic components handle the POE requirements while filtering out signal noise for stable 10/100 BASE-T performance. Metallic shielding with EMI fingers creates a protective barrier against interference in dense electronic environments. Users can instantly monitor port activity through the integrated yellow and green LED indicators on the front. Rugged copper alloy contacts with a gold finish provide superior conductivity for long-term use. Its right angle through hole design ensures a sturdy mechanical fit and saves valuable space on the circuit board.
Key Features
- POE Integration: Handles power and data in a single port.
- Integrated Magnetics: Filters signal noise for steady data flow.
- Full EMI Shielding: Blocks outside interference using a metallic shell.
- Yellow/Green LEDs: Provides instant visual feedback for network status.
- Right Angle Profile: Optimizes space on through hole circuit boards.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LG-M81 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

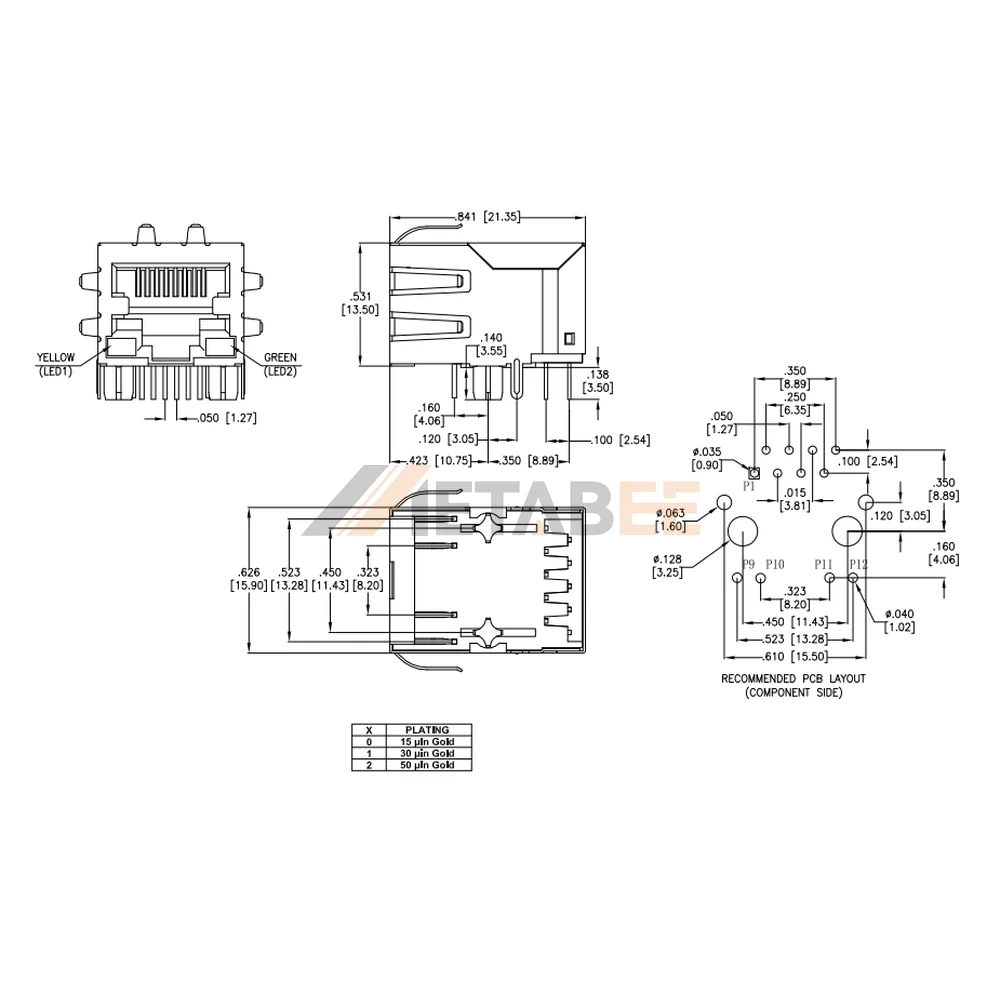

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
