Introduction:
Vertical PCB integration is optimized by the through-hole mounting design of the RJ45 connector with integrated magnetics. Reliable 10/100 Base-T Ethernet speeds are maintained across a wide industrial temperature range of -40°C to 85°C. A nickel-plated brass shield provides full protection to block electromagnetic interference effectively during data transmission. Secure mechanical alignment relies on the integrated board guide for precise soldering onto the circuit board. Black PA66 insulation and gold-plated copper alloy contacts ensure electrical resistance remains strictly below 20 mΩ. Visual link status feedback is delivered through integrated yellow and green LEDs in a tab-up configuration.
Key Features
- 10/100 Base-T Speed: Supports reliable Fast Ethernet data transmission.
- Vertical Through Hole: Optimizes space with secure top-entry mounting.
- Industrial Temperature Range: Operates safely between -40°C and 85°C.
- Full Brass Shielding: Blocks electromagnetic interference for clear signals.
- Integrated Board Guide: Ensures precise mechanical alignment on PCB.
Main Specifications:
General Information:

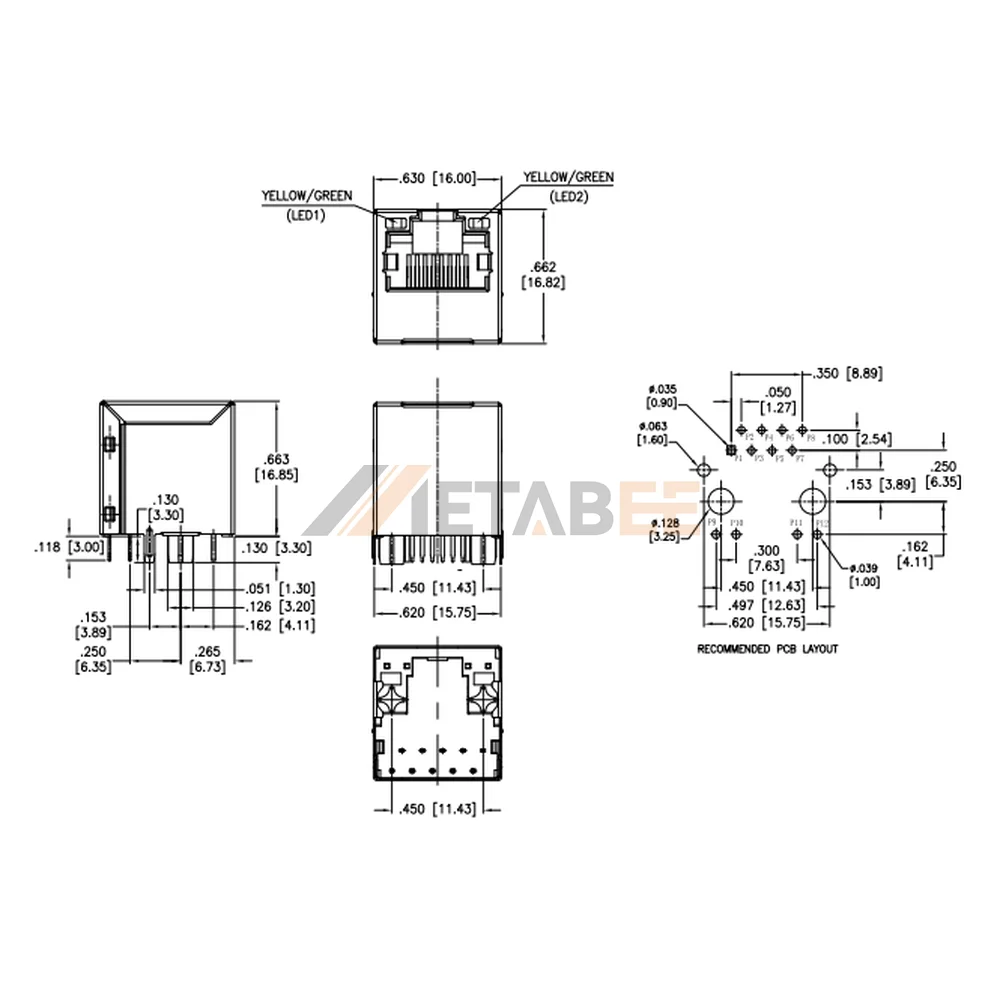

| Product No.: | MTJ-88AX1-FSN-STP-LP-M4C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow/Green, Right: Yellow/Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
