Introduction:
Filtering network noise directly at the port is easy with this RJ45 socket with magnetics. By housing high-quality transformers inside, it protects your networking chips from electrical surges and signal errors. The nickel-plated copper alloy shell works as a shield to block interference in crowded electronic environments. Using a right angle through hole design allows for a secure mechanical fit while keeping your circuit board compact. Designers can monitor port activity through the built-in yellow indicator lamp. Board guides ensure the connector stays perfectly aligned during the soldering process.
Key Features
- Integrated Magnetics: Built-in filters ensure stable 10/100 Base-T networking.
- Full EMI Shielding: Metallic shell blocks interference for stable data flow.
- Status Indicator LED: Yellow light shows activity for easy monitoring.
- Right Angle Profile: Saves vertical space on compact through hole boards.
- Board Guide System: Ensures a secure and stable mechanical PCB fit.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LC-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Blank, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

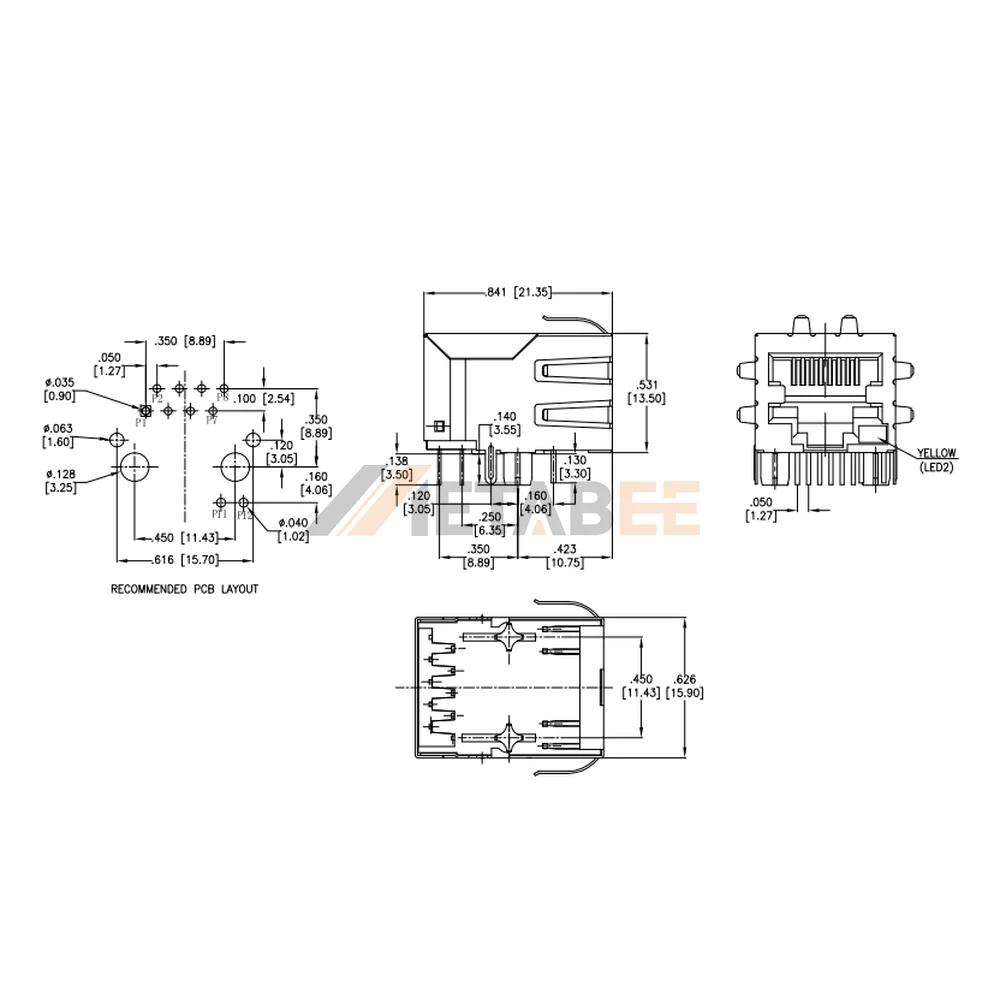

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
