Introduction:
Designed for 10/100 Base-T networks, the single-port RJ45 integrated magnetics jack supports Power over Ethernet (PoE) functionality. A nickel-plated brass shield offers comprehensive protection against electromagnetic interference. The connector housing uses durable black PA66 insulation material to withstand operational stress. Mounting to the printed circuit board is secured through a right-angle, through-hole configuration with a board lock. Integrated green and yellow LEDs provide immediate visual feedback on link status. Gold-plated copper alloy contacts ensure reliable signal transmission with low contact resistance.
Key Features
- 10/100 Base-T PoE: Enables power and data delivery efficiently.
- Brass Metal Shielding: Nickel-plated brass minimizes signal noise.
- PA66 Insulation: Tough polyamide housing resists wear.
- Integrated Status LEDs: Green and yellow lights indicate status.
- Gold-plated Contacts: Ensures low-resistance connectivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG-LH-M114 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

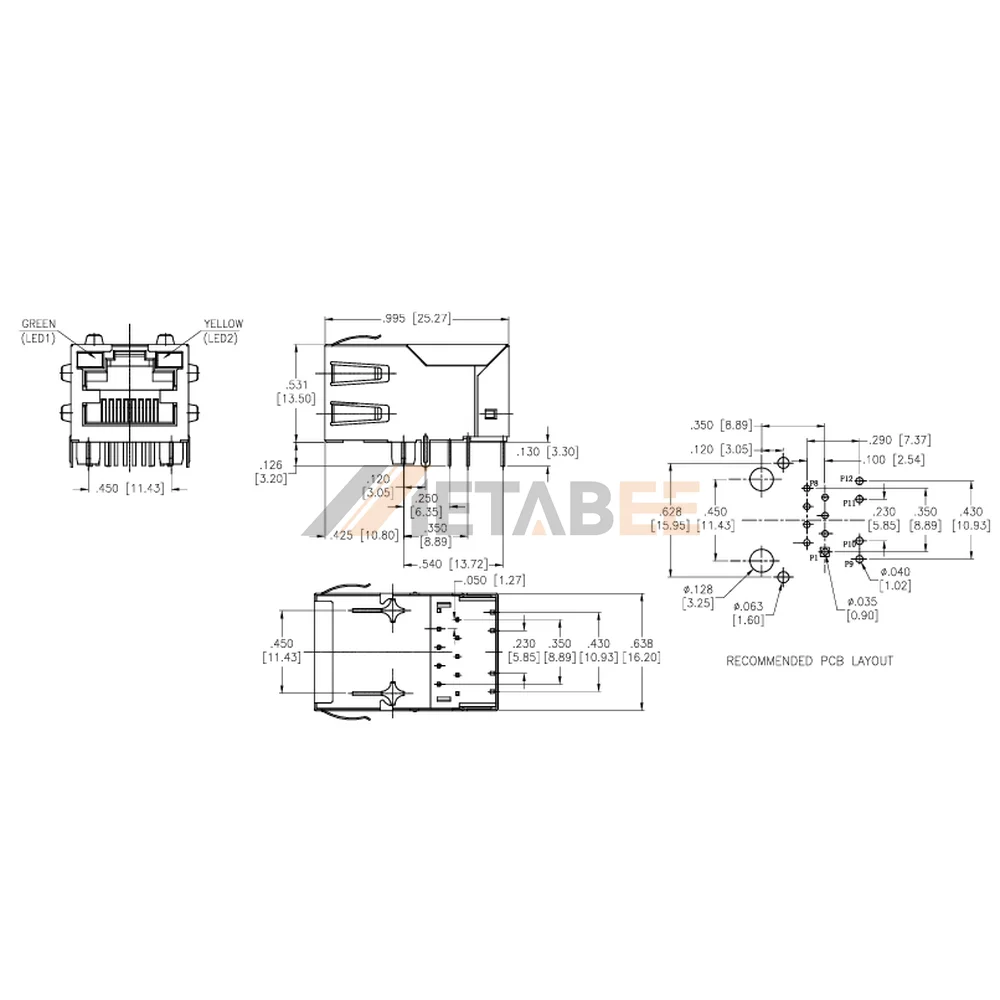

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
