Introduction:

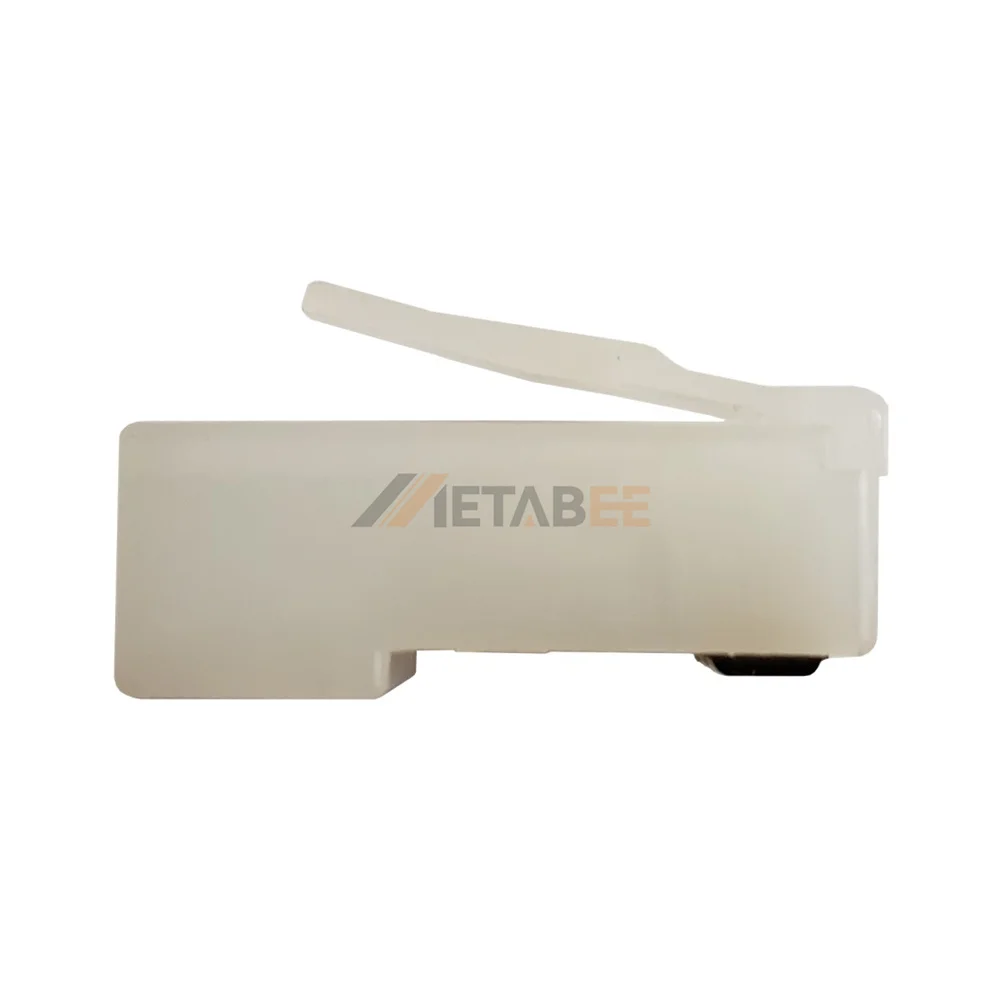

This RJ45 plug connector provides a reliable solution for voice-grade telecommunication and low-speed networking systems. It is constructed with a copper alloy shell to protect data signals from electromagnetic interference. The 8P8C configuration specifically fits round stranded cables for consistent termination results. Because the insulator uses clear white PA6 material, technicians can easily verify wire order during the assembly process. Gold over nickel plating on the contacts ensures superior conductivity and long-term corrosion resistance. Many installers rely on this durable plug for applications requiring 1000 VAC dielectric strength and high insulation resistance. Its robust design guarantees stable connectivity in shielded modular environments.
Key Features
-
Round Cable Compatibility: Designed for secure termination on stranded wires.
- Cat5 Performance Rating: Ensures stable transmission for voice-grade telecommunication links.
- PA6 Clear White Material: Provides a durable housing for internal wire verification.
- Gold Over Nickel Finish: Delivers superior conductivity and oxidation resistance for contacts.
Main Specifications:
General Information:
| Product No.: | MTPR-88-X-C | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | RJ45 Plug | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | Cat5 | |
| Wire Type: | Stranded | |
| Cable Type: | Round | |
| Wire range: | N/A | |
| OD of the Individual Cable Core: | N/A | |
| Body Length: | 22.4 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 1000 Mohms min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Insulator Material: | PA6 | |
| Insulator Color: | Clear White | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -25℃ to +55℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
