RJ45 Modular Jack with Magnetics, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Achieving clean data transmission in noisy electronic environments becomes simpler with this RJ45 modular jack with magnetics. Built-in filtering components handle 10/100 Base-T signal conditioning, removing the need for external transformers on the circuit board. Designers can utilize the stainless steel, nickel-plated shell to provide a strong barrier against electromagnetic interference. Visible link status is ensured by the front-mounted yellow and green LEDs, offering immediate port diagnostics. Since the housing is made of high-temperature thermoplastic, the component easily withstands standard industrial soldering processes. Integrated board guides provide a stable mechanical fit during through hole mounting.
Key Features
- Integrated Magnetics: Built-in filters ensure stable 10/100 Base-T data flow.
- Full EMI Shielding: Nickel-plated stainless steel shell blocks electrical interference.
- Status LEDs: Yellow and green lights offer instant visual feedback.
- Right Angle Profile: Compact shape optimizes space on through hole boards.
- High-Temp Housing: Robust thermoplastic survives demanding industrial soldering conditions.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LG-M5D-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 75°C | |
| Flammability Rating: | UL 94 V-0 |

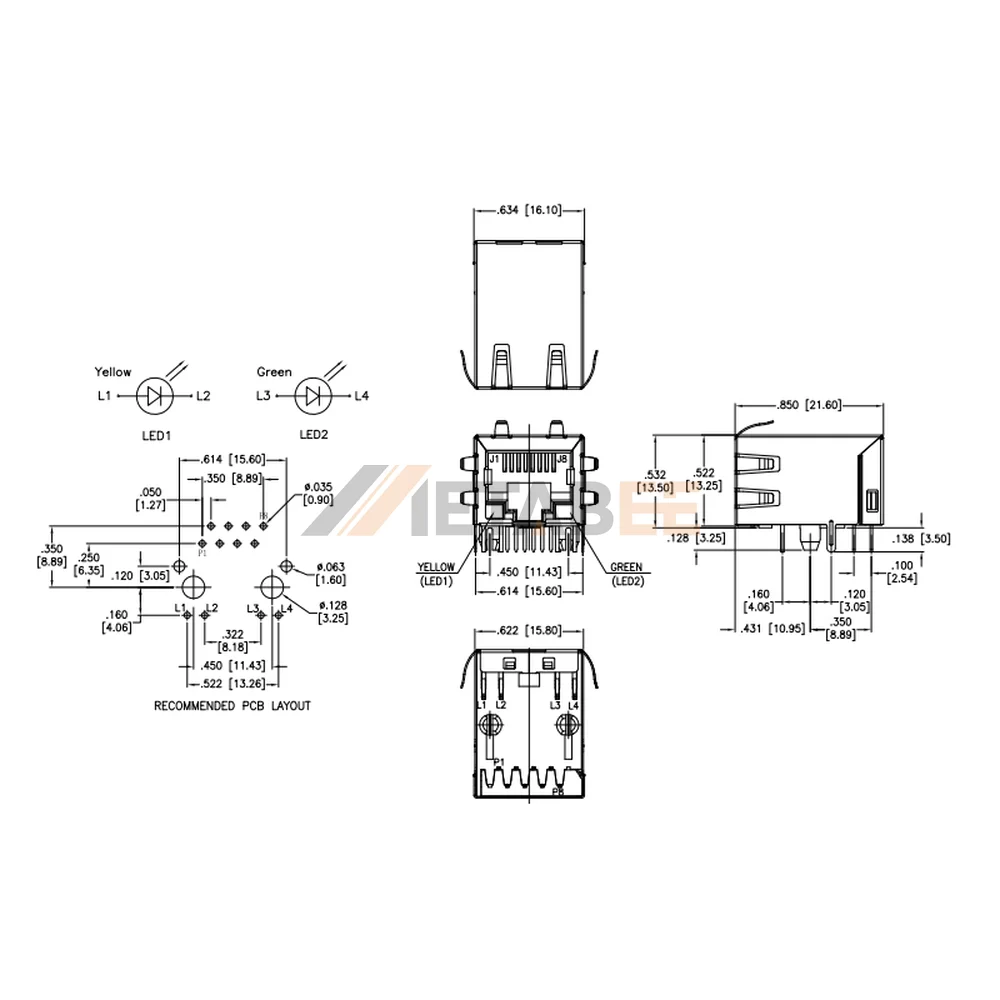

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
