Introduction:
Designing space-efficient networking cards is simpler with this RJ45 modular jack magnetic shielding. This integrated component filters signal noise for stable 100Base-T performance while isolating internal circuitry from electrical spikes. High-temperature thermoplastic housing ensures the jack survives wave soldering without warping or damage. Because it features a Tab-Up configuration, it fits perfectly in layouts where bottom tabs might interfere with other board parts. A nickel-plated brass shell blocks external interference to maintain clear and steady data links. You can monitor port status via the built-in green indicator lamp. Most engineers rely on the board lock mechanism for a secure mechanical fit during assembly.
Key Features
- Integrated Magnetics: Filters signal noise for stable 100Base-T networking.
- Tab-Up Configuration: Optimizes mechanical fit for specific PCB layouts.
- Full EMI Shielding: Metallic shell blocks interference for stable data flow.
- Green Status LED: Built-in light provides instant visual feedback.
- Board Lock System: Ensures a secure and lasting mechanical attachment.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-VLE-M4-HT-HF | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Blank |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

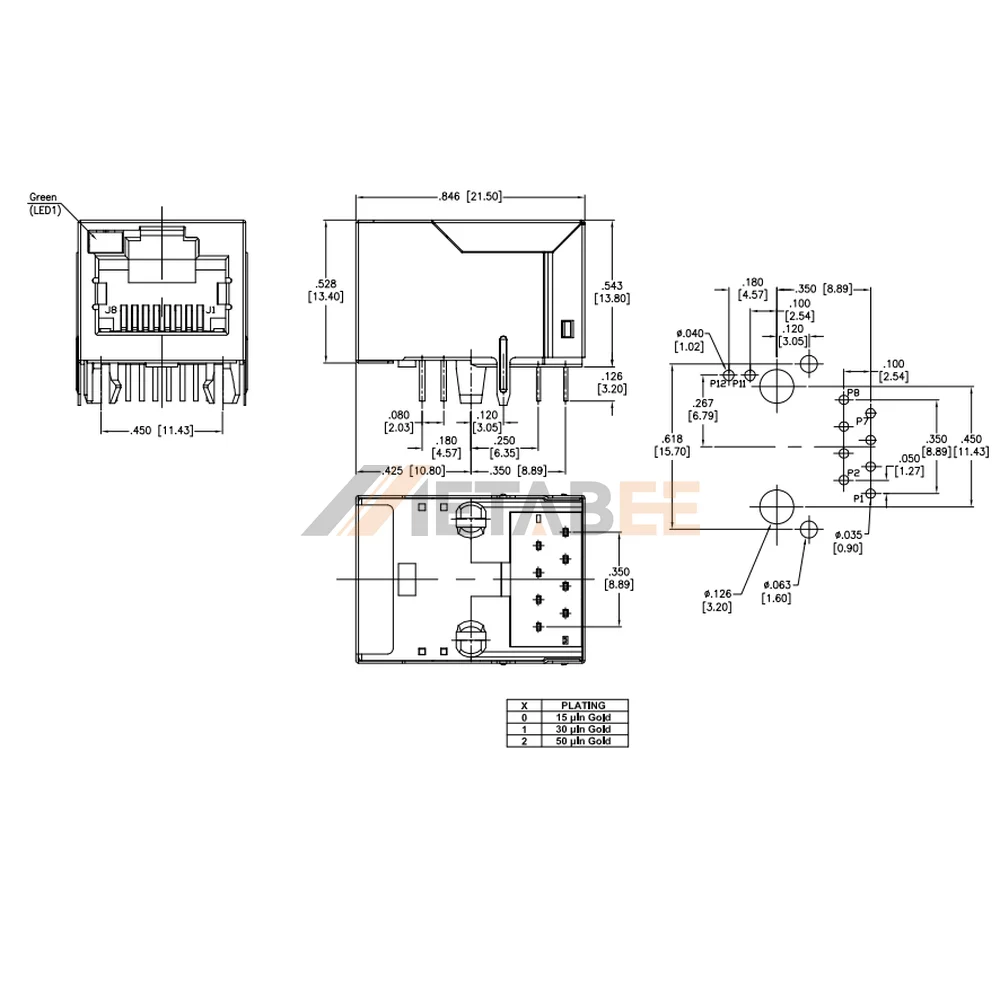

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
