Introduction:

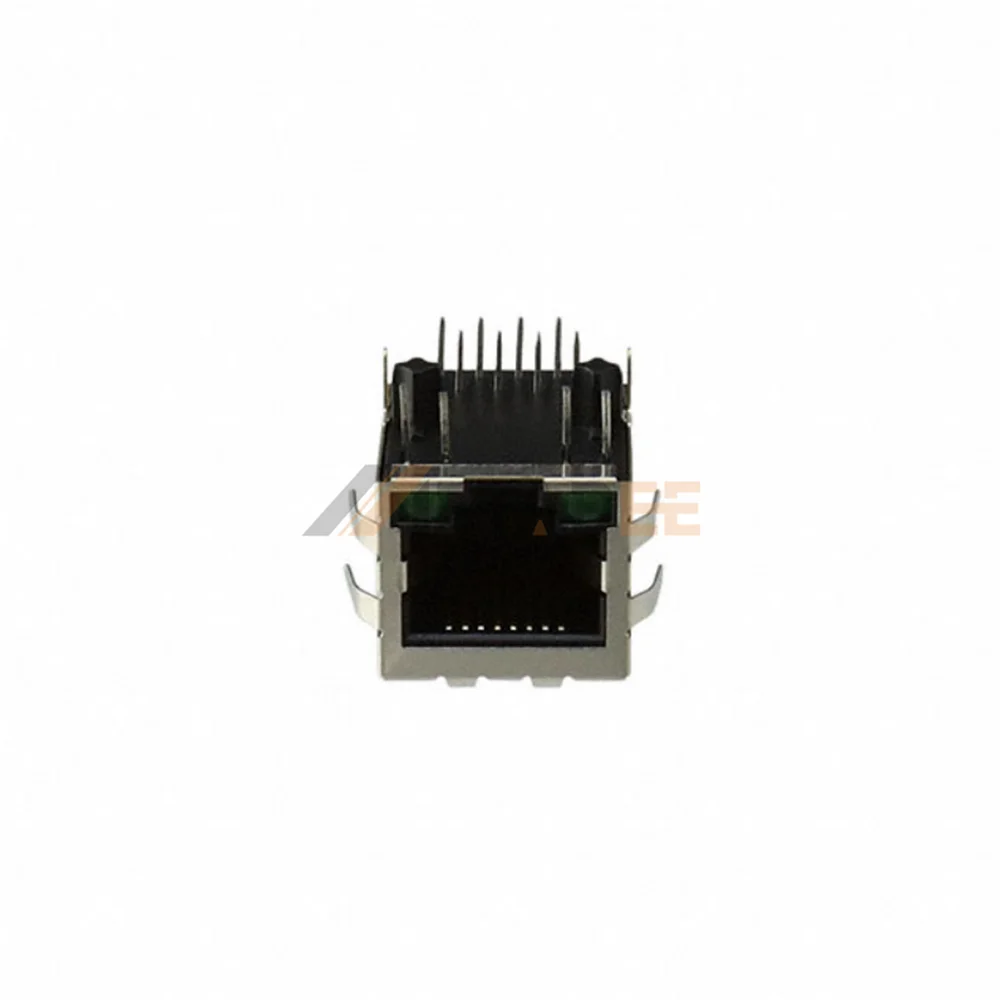

Improving your network hardware becomes much easier when using this RJ45 magnetic transformer jack to handle essential signal filtering. Internal magnetic components work together to ensure steady 10/100 Base-T data flow while providing vital electrical isolation for your sensitive chips. By housing everything in a nickel-plated copper alloy shell, the port blocks external interference to keep signals clean in crowded electronic environments. The dual green LED indicators allow users to check connection activity at a glance. Designers will find the right angle THT profile perfect for saving vertical space on compact circuit boards. Its board guide and solder retention features guarantee a secure mechanical fit throughout the life of the device.
Key Features
- Integrated Magnetics: Provides essential 10/100 Base-T signal conditioning and isolation.
- EMI Shielding: Blocks interference with a nickel-plated copper alloy shell.
- Dual Green LEDs: Offers instant visual monitoring for link activity status.
- Right Angle Profile: Saves vertical space on compact through hole boards.
- Solder Retention: Board guides ensure a stable mechanical attachment to PCB.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LD-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
