RJ45 Magjack Ethernet Connector, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Designing network interfaces becomes more efficient with this RJ45 magjack Ethernet connector. It features built-in magnetics that provide 10/100 Base-T signal conditioning and essential electrical isolation for internal chips. A nickel-plated copper alloy shell surrounds the port, acting as a protective shield against electromagnetic interference in busy environments. Because it has integrated yellow and green LEDs, monitoring link status is both fast and convenient for the end user. The right angle THT configuration allows for a secure mechanical attachment while saving valuable vertical space on the PCB. Most designers prefer this rugged PA66 housing for its long-lasting performance in various telecommunication devices.
Key Features
- Integrated Magnetics: Filters signal noise for 10/100 Base-T connectivity.
- Full EMI Shielding: Blocks outside interference using a metallic shell.
- Status Indicator LEDs: Yellow and green lights show port activity.
- Right Angle Mounting: Optimizes space on through hole circuit boards.
- Board Guide System: Ensures a secure and stable mechanical fit.
Main Specifications:
General Information:

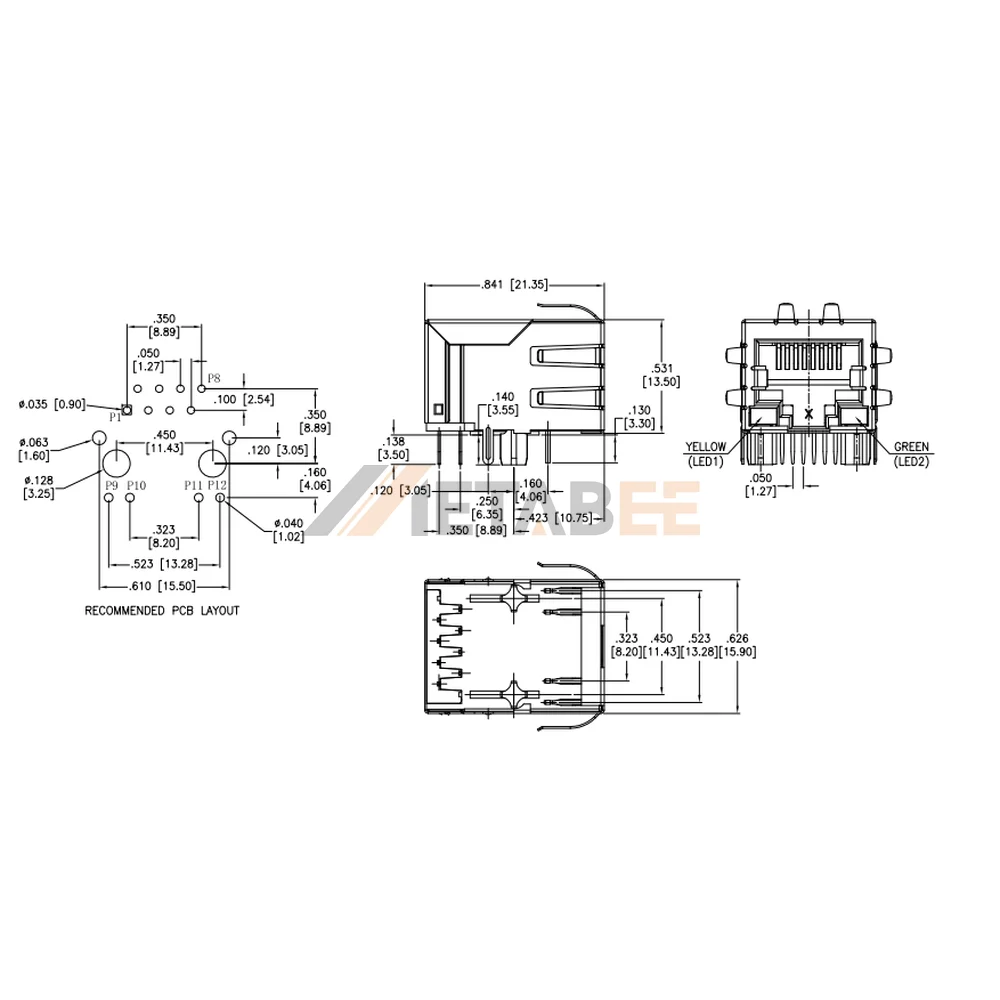

| Product No.: | MTJ-88TX1-FSD-PG-LG-M5 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
