Introduction:
Delivering both power and high-speed data becomes more efficient with an RJ45 jack with PoE magnetics. Integrated transformers manage 10/100 Base-T filtering while supporting Power over Ethernet for various connected devices. Built with a nickel-plated copper alloy shell, the port provides a strong barrier against electromagnetic noise in busy networking environments. Designers can easily monitor port status through the front-mounted green and yellow LED indicators. Because it uses a right angle through hole design, the connector ensures a sturdy mechanical fit on compact networking boards. Such a rugged component operates reliably within a temperature range from -20°C to 70°C.
Key Features
- PoE Integration: Handles power and data through a single port.
- Industrial Temp Range: Operates reliably from -40°C to 85°C.
- Integrated Magnetics: Filters signal noise for steady data transmission.
- Full EMI Shielding: Blocks interference using a metallic copper alloy shell.
- Status Indicator LEDs: Green and yellow lights show network activity status.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-D1LH-M81 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -20°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

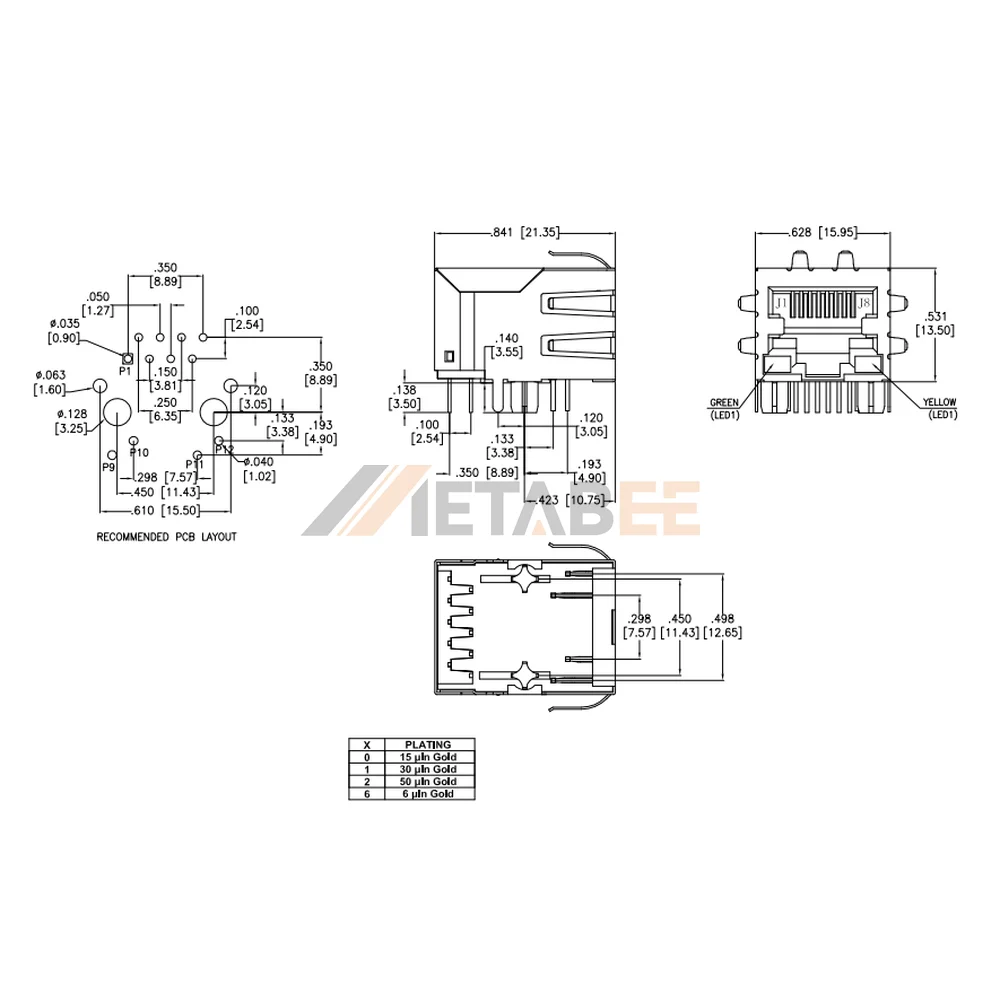

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
