Introduction:
Protecting your internal circuits becomes much simpler by using an RJ45 jack with a magnetic transformer to handle signal isolation. Integrated filters within the unit suppress electromagnetic interference while maintaining steady 10/100 Base-T networking speeds. Because the metallic shell includes EMI fingers, it creates a robust barrier against noise in crowded industrial environments. Designers can achieve a sleek front panel look by selecting this no LED model for interfaces with external status displays. Its right angle through hole design ensures a secure mechanical bond to the PCB across a wide industrial temperature range from -40°C to 85°C. High insulation resistance and gold-plated contacts guarantee long-term reliability for standard telecommunication systems.
Key Features
- Integrated Magnetics: Provides signal conditioning and isolation for networks.
- Full EMI Shielding: Blocks interference using a nickel-plated brass shell.
- Industrial Temp Range: Operates reliably from -40°C up to 85°C.
- Right Angle Design: Optimizes board space for compact electronic layouts.
- No LED Configuration: Offers a clean look for custom device interfaces.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG6-M3-X7-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |

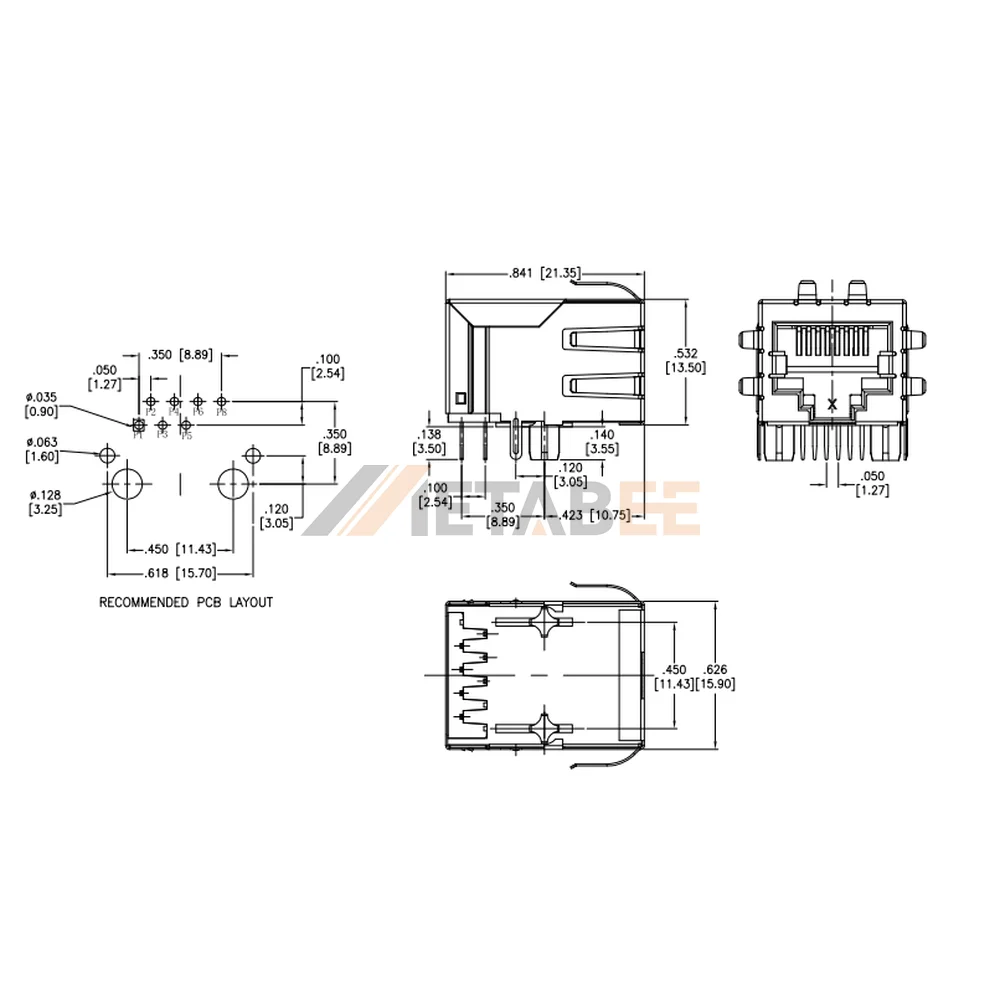

Structure of Modular Jack
