Introduction:
Ensuring reliable 10/100 Base-T data transmission, the single-port RJ45 with magnetics features a robust nickel-plated stainless steel shield for optimal electromagnetic interference protection. The module incorporates hi-temp thermoplastic insulation, designed to withstand demanding soldering processes and environmental stress. A right-angle, through-hole configuration utilizes a board lock mechanism to firmly anchor the connector onto the PCB. Integrated green and yellow LEDs are positioned within the tab-up profile to deliver instant visual network status. Gold-plated phosphor bronze contacts keep resistance below 30mΩ, securing consistent electrical performance during operation.
Key Features
- 10/100 Base-T Speed: Delivers reliable Fast Ethernet data transmission.
- Stainless Steel Shield: Nickel-plated guard minimizes electromagnetic interference.
- Hi-Temp Thermoplastic: Black housing withstands high soldering temperatures.
- Dual-Color LEDs: Green and yellow lights indicate network status.
- Low Resistance Contacts: Phosphor bronze ensures <30mΩ contact resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-LH-M5D-HT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

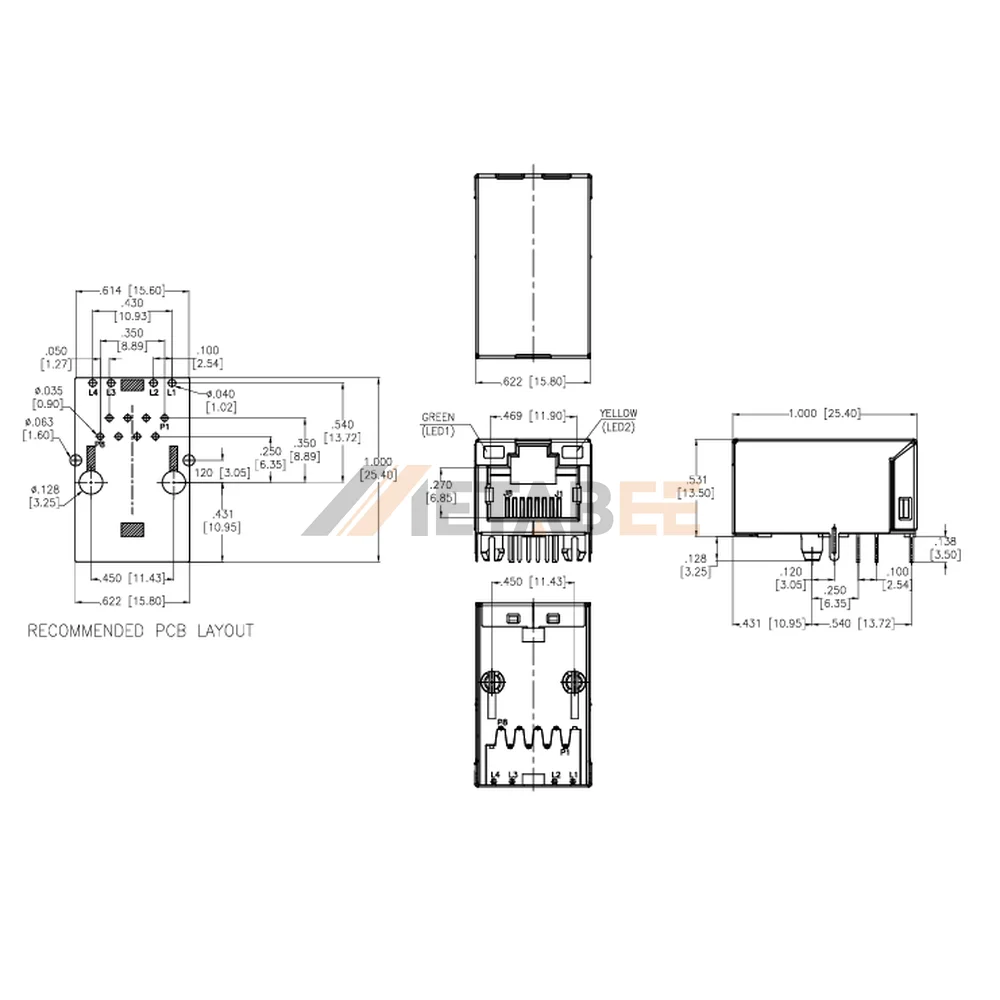

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
