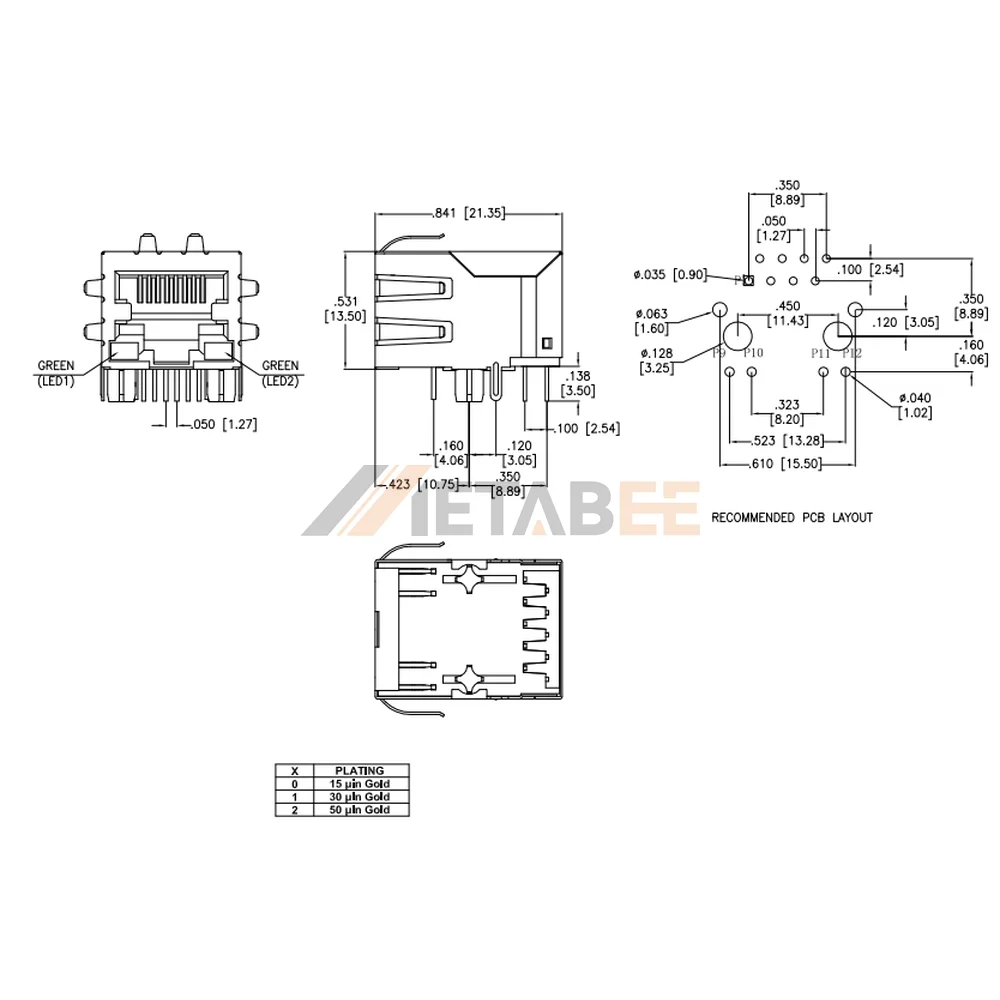

RJ45 Jack with Magnetics, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Green/Green LEDs
Introduction:
Networking equipment designers can simplify their circuit boards by choosing this RJ45 jack with magnetics to replace separate filtering components. Inside the connector, high-quality transformers handle 10/100 Base-T signal conditioning while providing essential isolation for sensitive chips. By shielding the entire port with a nickel-plated copper alloy shell, it effectively blocks electrical noise in crowded environments. The right angle through hole design ensures a low profile and a rugged mechanical attachment to the PCB. Two green LEDs are integrated into the front, offering instant visual confirmation of network activity and link status. It represents a reliable and compact solution for industrial and telecommunication hardware.
Key Features
- Integrated Magnetics: Provides 10/100 Base-T signal filtering and isolation.
- Full EMI Shielding: Metallic shell blocks interference for stable data links.
- Dual Green LEDs: Offers instant visual monitoring of port activity status.
- Right Angle Profile: Optimizes space on compact through hole circuit boards.
- Board Guide System: Ensures a secure and stable mechanical PCB fit.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LD-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
