RJ45 Jack 8P8C Modular Socket Without LEDs, Single Port, Shielded, Tab-Down, Through Hole, R/A
Introduction:
This is a single port shielded RJ45 jack 8P8C designed for stable right angle through hole mounting on networking circuit boards. It features a robust nickel-plated brass shell that provides full EMI shielding to protect signal integrity from external electromagnetic interference. The internal black PBT housing ensures high thermal stability and maintains a superior insulation resistance of 1000MΩ Min. With Phosphor Bronze contacts finished in Gold over Nickel, the unit supports a consistent 1.5A current rating across its 8P8C interface. Utilizing a Tab-Down configuration, this component effectively optimizes vertical space while providing secure electrical paths. Technicians utilize this modular socket for telecommunication devices and networking hardware requiring reliable board-level data links.
Key Features
- Full EMI Shielding: Metallic brass shell effectively blocks signal interference.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
- Tab-Down Design: Optimizes vertical space for specialized board layouts.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Right Angle Mounting: Provides stable through hole attachment to PCBs.
Main Specifications:
General Information:
| Product No.: | MTJ-88GX1-FSD-PG | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 35mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

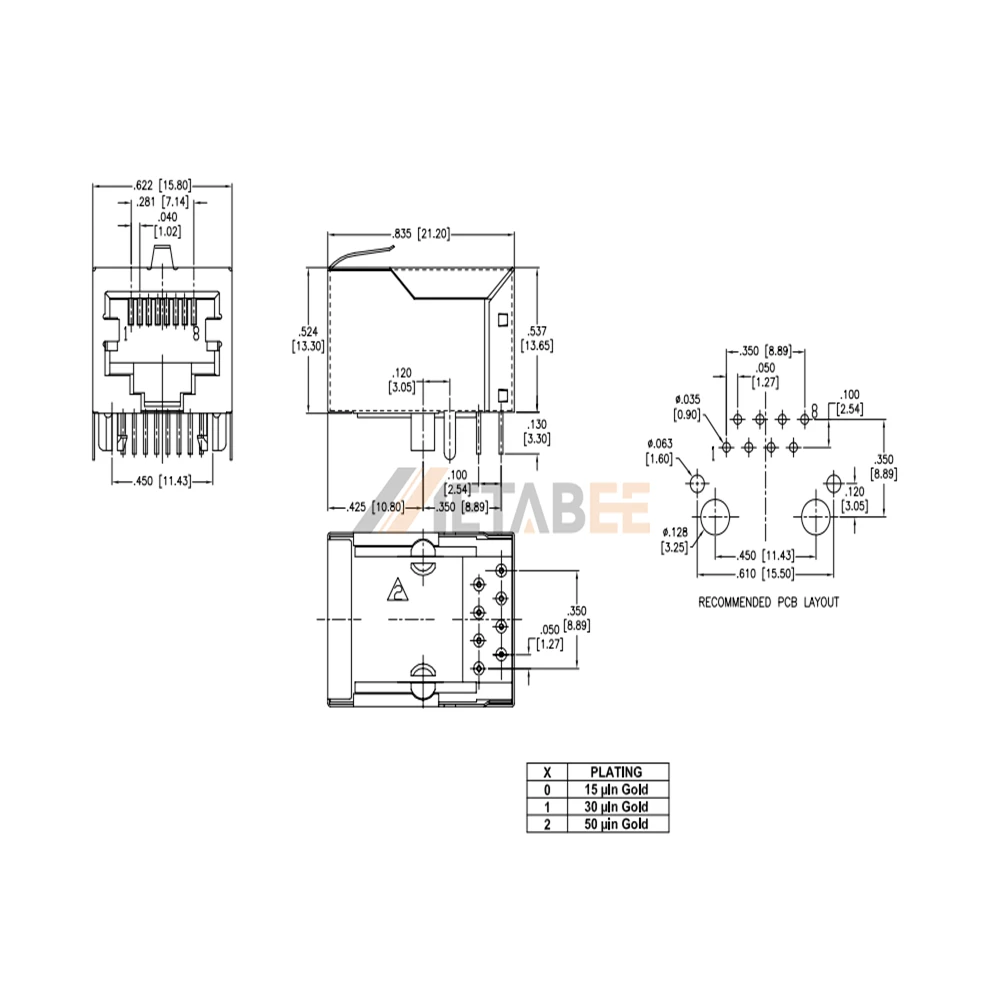

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
