RJ45 Integrated Magnetics PoE Jack, 1 Port, 10/100 Base-T, Shielded with EMI, THT, R/A, Yellow/Green LEDs
Introduction:
Combining power and data in a single interface, this RJ45 integrated magnetics PoE connector streamlines industrial networking designs. It features built-in filters to suppress electrical noise and provide isolation for 10/100 BASE-T circuits. Built with a nickel-plated brass shell and EMI fingers, the port prevents signal distortion caused by external electromagnetic interference. The PA66 insulator and wide operating temperature range from -40°C to 85°C ensure long-term durability in extreme conditions. Integrated yellow and green LEDs allow for instant link and status monitoring without extra components. Its right angle configuration optimizes through hole PCB space for compact device layouts.
Key Features
- PoE Support: Combines power and data transmission in one port.
- Integrated Magnetics: Provides signal conditioning and isolation for networks.
- Industrial Temperature: Operates reliably from -40°C up to 85°C.
- EMI Shielding: Brass shell with fingers blocks external electrical noise.
- Status LEDs: Built-in lights show network activity and link speed.

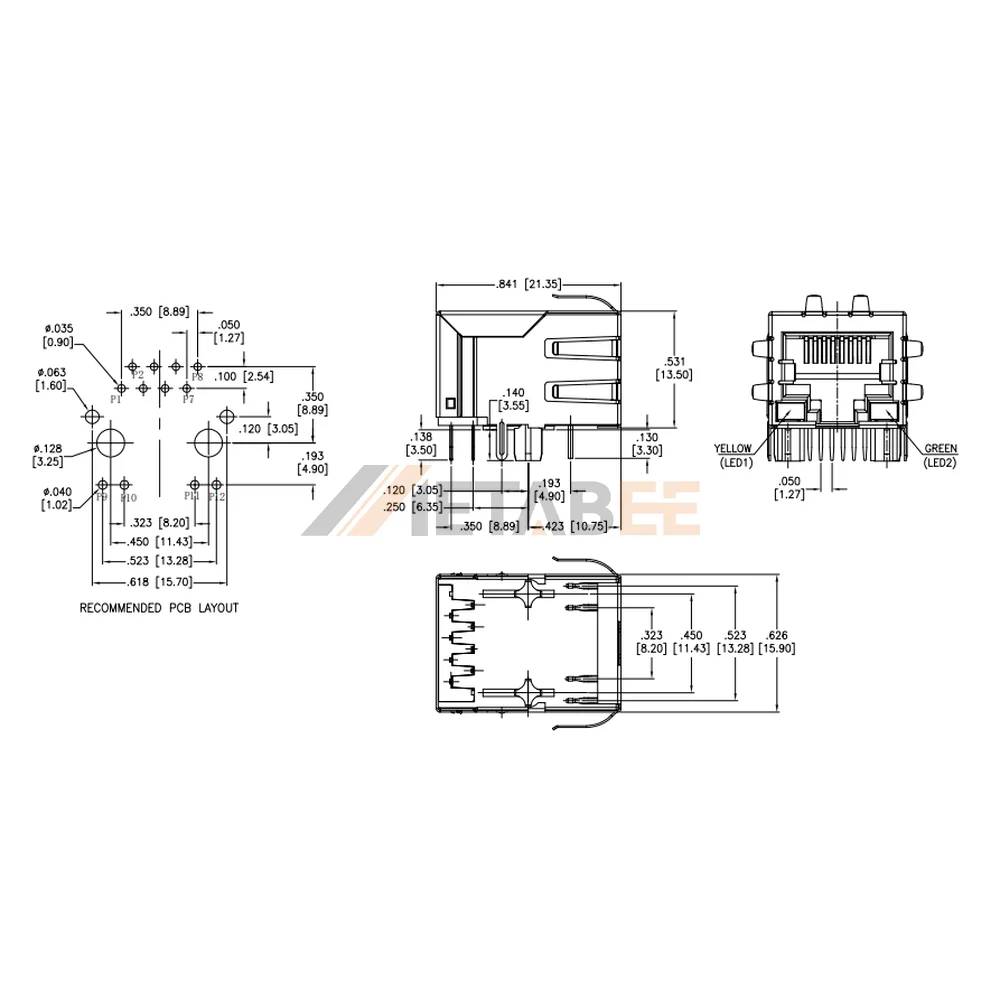

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LG-M63C1-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
