Introduction:
Simplifying circuit board design is effortless when utilizing this RJ45 integrated magnetics modular jack to replace multiple discrete components. Its built-in filtering parts ensure consistent 10/100 BASE-T data transmission while providing essential electrical isolation to protect sensitive networking chips. Because it operates within a wide industrial temperature range of -40°C to 85°C, the port performs reliably in harsh environments. The nickel-plated copper alloy shell acts as a full shield to block electromagnetic interference for clear signaling. Designers will find the Tab-Up configuration and secure board lock useful for maintaining a compact and sturdy mechanical fit on the PCB. This no-LED model provides a professional, clean interface for various industrial hardware setups.
Key Features
- Integrated Magnetics: Provides essential 10/100 BASE-T signal conditioning.
- Industrial Temperature Range: Operates reliably from -40°C to 85°C.
- Tab-Up Configuration: Optimizes fit for specific compact board layouts.
- Full EMI Shielding: Blocks external noise using a metallic shell.
- Secure Board Lock: Ensures a strong and stable mechanical attachment.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-M14W | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ 85°C | |
| Flammability Rating: | UL 94 V-0 |

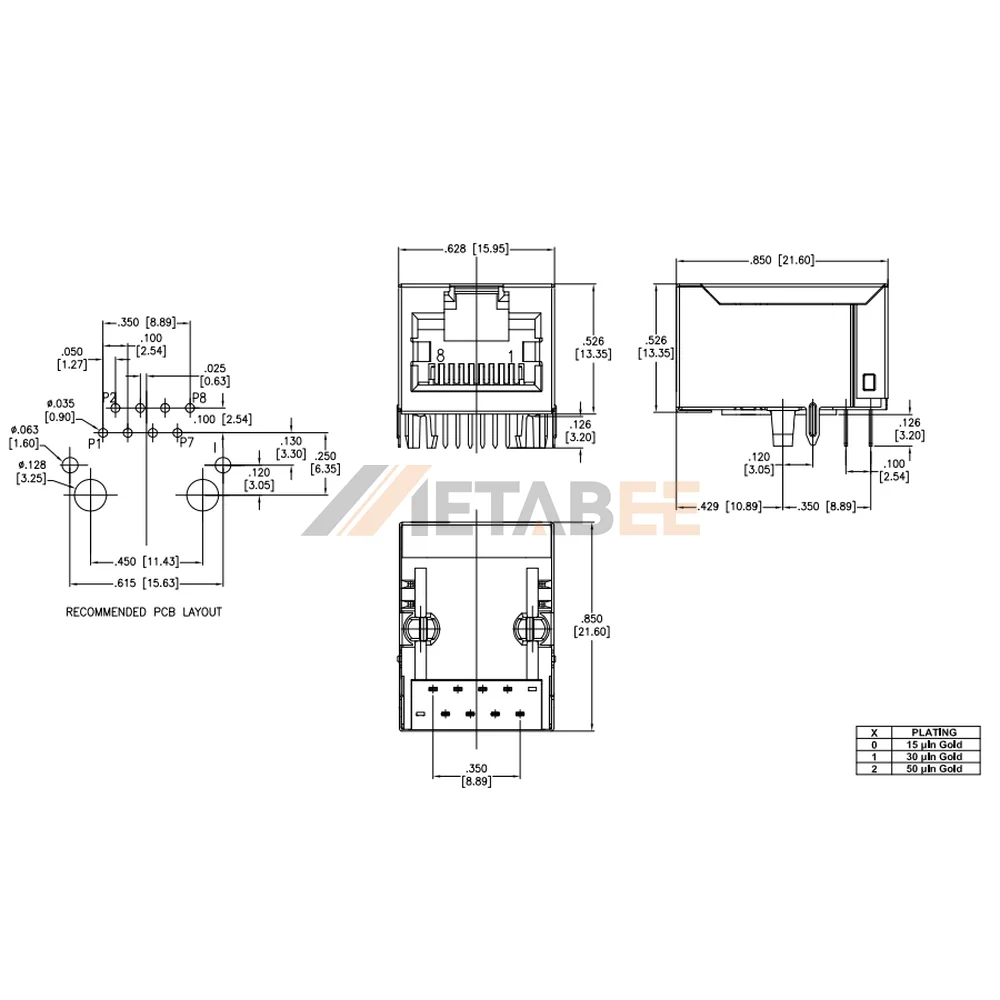

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
