Introduction:
These RJ45 integrated connectors with magnetics simplify network interface designs by combining signal filtering and a physical port into a single unit. It effectively cleans up 100Base-T data streams while isolating sensitive chips from board-level noise. Because it features a Tab-Up configuration, the jack fits easily into PCB layouts where standard downward tabs might interfere with other components. A nickel-plated brass shell with EMI fingers provides a solid shield against external interference. You can instantly track port activity through the built-in yellow and green LEDs. Its rugged PA66 housing and board lock ensure a secure mechanical connection during assembly and daily operation.
Key Features
- 100Base-T Performance: Facilitates stable data transmission with integrated signal filtering.
- Tab-Up Design: Optimizes space and mechanical fit for specific board layouts.
- EMI Finger Shielding: Blocks external interference using a nickel-plated brass shell.
- Yellow/Green LEDs: Provides immediate visual monitoring of network activity status.
- Mechanical Board Lock: Ensures a strong and lasting physical connection to PCBs.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FSD-VLG-M248 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

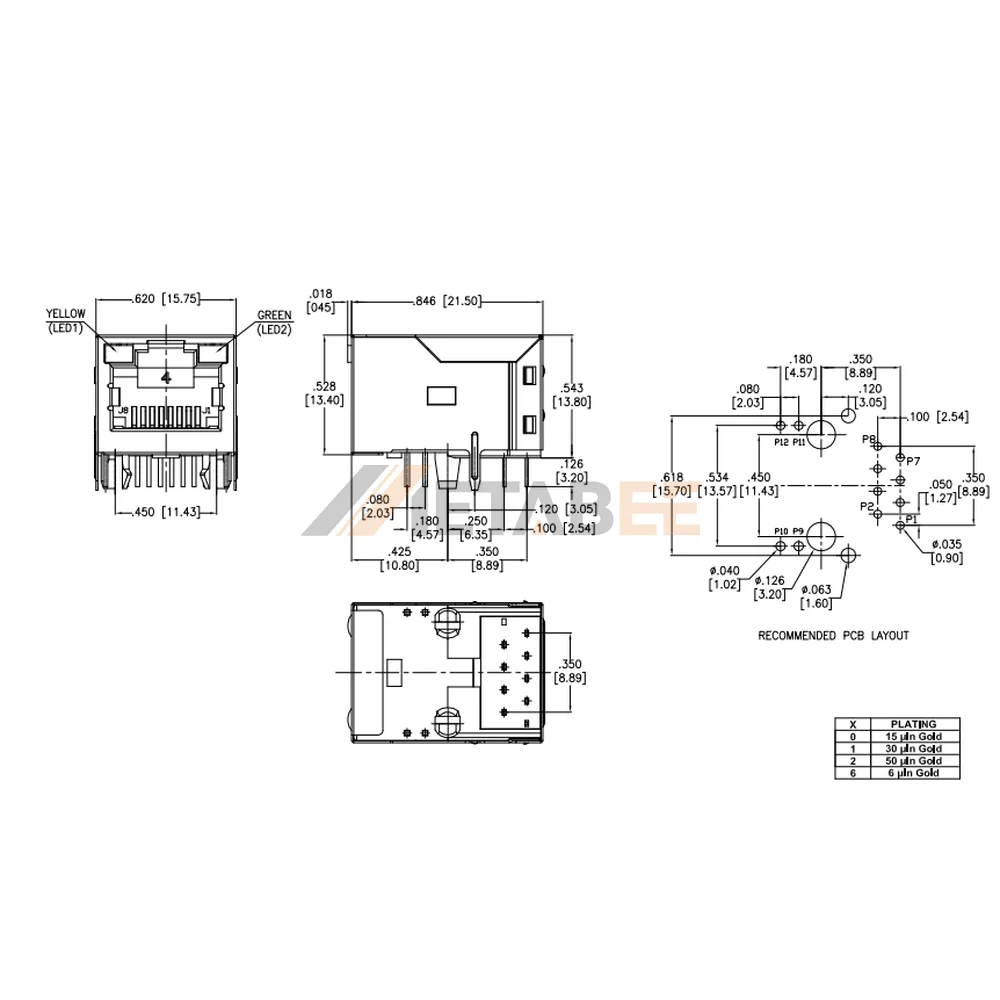

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
