Introduction:
Extreme industrial environments from -40°C to 85°C present no challenge for the shielded magjack connector, designed to support flawless 1G Base-T Gigabit Ethernet data transmission. A robust nickel-plated brass shield entirely envelops the black Nylon 66 insulator to reject severe electromagnetic interference effectively. Precise printed circuit board installation relies on a practical board guide integrated seamlessly into the right-angle, through-hole architecture. Visual network link and activity monitoring depend on dual yellow and green LEDs positioned perfectly within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20mΩ to secure long-term signal clarity.
Key Features
- 1G Base-T Speed: Delivers fast Gigabit Ethernet data transmission flawlessly.
- Industrial Temperature Range: Operates reliably across extreme -40°C to 85°C environments.
- Brass Metal Shielding: Nickel-plated housing completely blocks severe electromagnetic interference.
- Nylon 66 Insulation: Durable black thermoplastic incorporates a practical board guide.
- Low Resistance Contacts: Phosphor bronze strictly maintains <20mΩ electrical resistance.

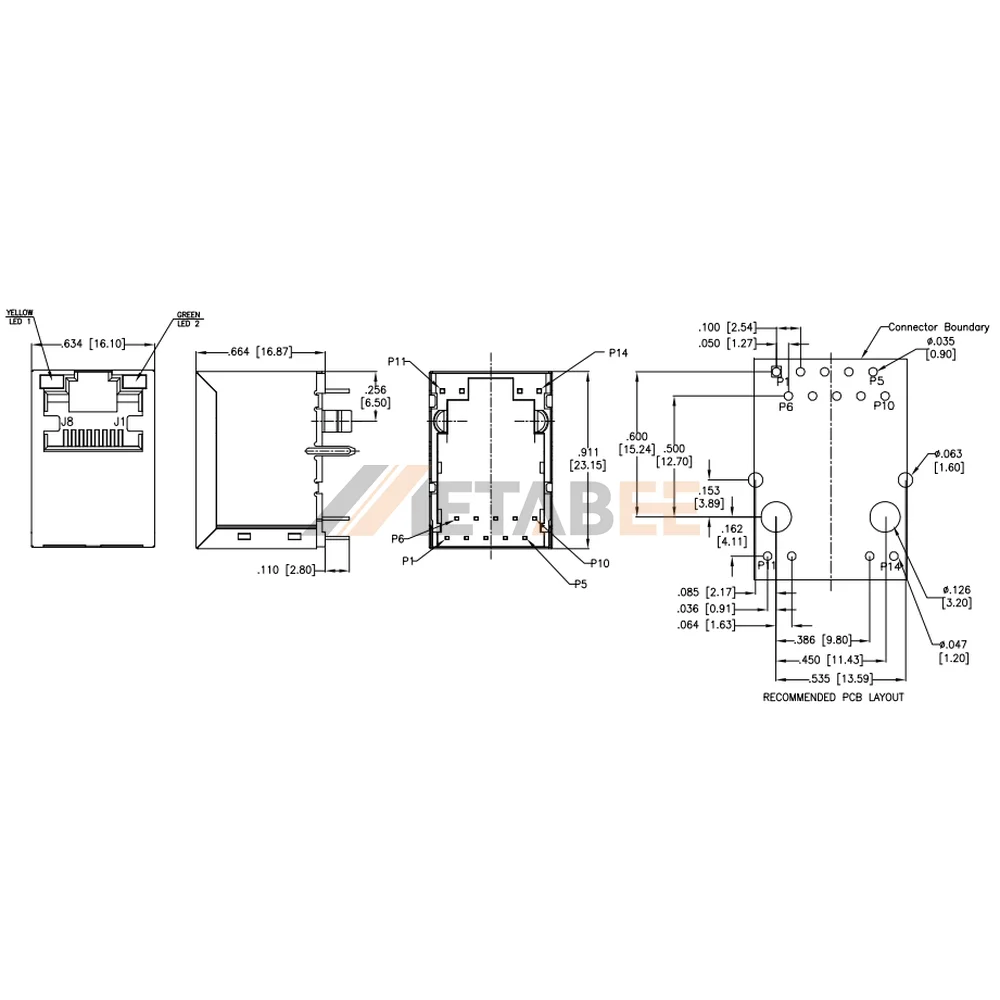

Main Specifications:
General Information:
| Product No.: | MTJ-88TVX1-FSJ-LG-M75C-NY66-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Nylon 66 | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
