Introduction:

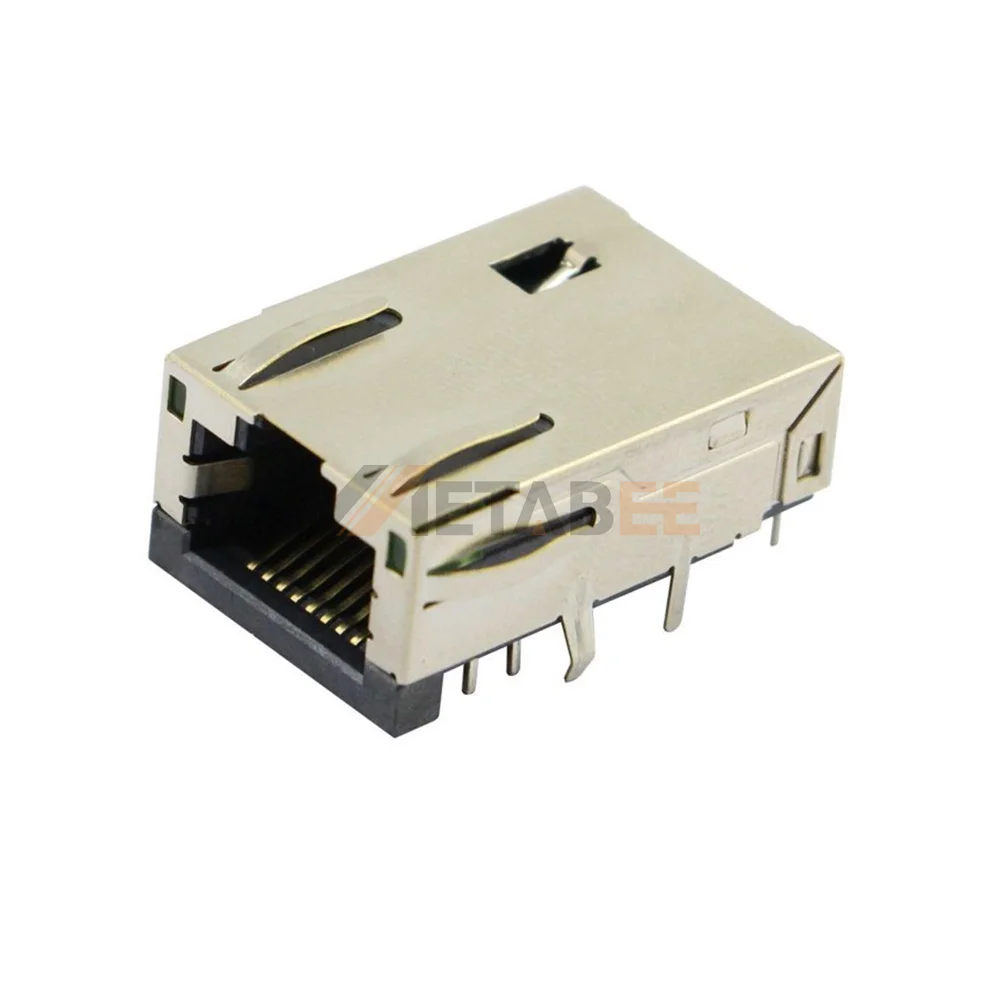

This high-quality rj45 female PCB connector is designed for robust network connectivity in various industrial applications. It features integrated magnetics to enhance signal integrity by filtering electromagnetic noise effectively. The component has a standard 8P8C configuration and a single port layout. With its full shield design, the connector provides excellent protection against external interference. The right angle orientation allows for space-efficient placement on the edge of the board. Through hole mounting ensures a strong mechanical bond for long-term reliability. Engineers can rely on this durable solution for stable data transmission in telecommunication systems and networking hardware.
Key Features
-
Integrated Magnetics: Built-in filtering enhances signal integrity and simplifies design.
-
Full Shielding: Metal housing blocks external EMI for stable performance.
-
Right Angle Design: 90-degree orientation fits standard PCB edge layouts perfectly.
-
Through Hole Mounting: Solder tails provide superior mechanical retention and stability.
-
8P8C Configuration: Standard single port interface for universal network compatibility.
Main Specifications:
General Information:
| Product No.: | MTJ-88BAX1-FS-PG-LG-M383C-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Performance Category: | CAT6 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-up | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
