RJ45 Female Ethernet Jack Connector with LEDs, 8P8C, 1 Port, Shielded, Tab-Up, Through Hole, R/A, Green/Yellow
Introduction:
This is a single port RJ45 female connector with led indicators designed for stable through hole mounting on high-speed networking circuit boards. It features a robust nickel-plated brass shell that provides a full shield to block electromagnetic interference and safeguard signal integrity in busy data environments. The durable PBT housing ensures high thermal stability and maintains a minimum insulation resistance of 500MΩ across an industrial temperature range of -40°C to +85°C. Utilizing a Tab-Up right angle configuration, the component effectively saves vertical board space while the integrated green and yellow LEDs allow for quick link diagnostics at a glance. Technicians utilize this modular interface for industrial automation gear and networking hardware requiring reliable shielded connectivity and visual status feedback.
Key Features
- Full EMI Shielding: Metallic brass shell ensures high signal integrity.
- Integrated Status LEDs: Enables immediate visual confirmation of link activity.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Provides superior conductivity and lasting oxidation resistance.
- Industrial Temp Range: Operates reliably from -40°C to +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1C-FSM-PG-LH-A | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute (Contacts), 1500 VAC for 1 minute (Shell) |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

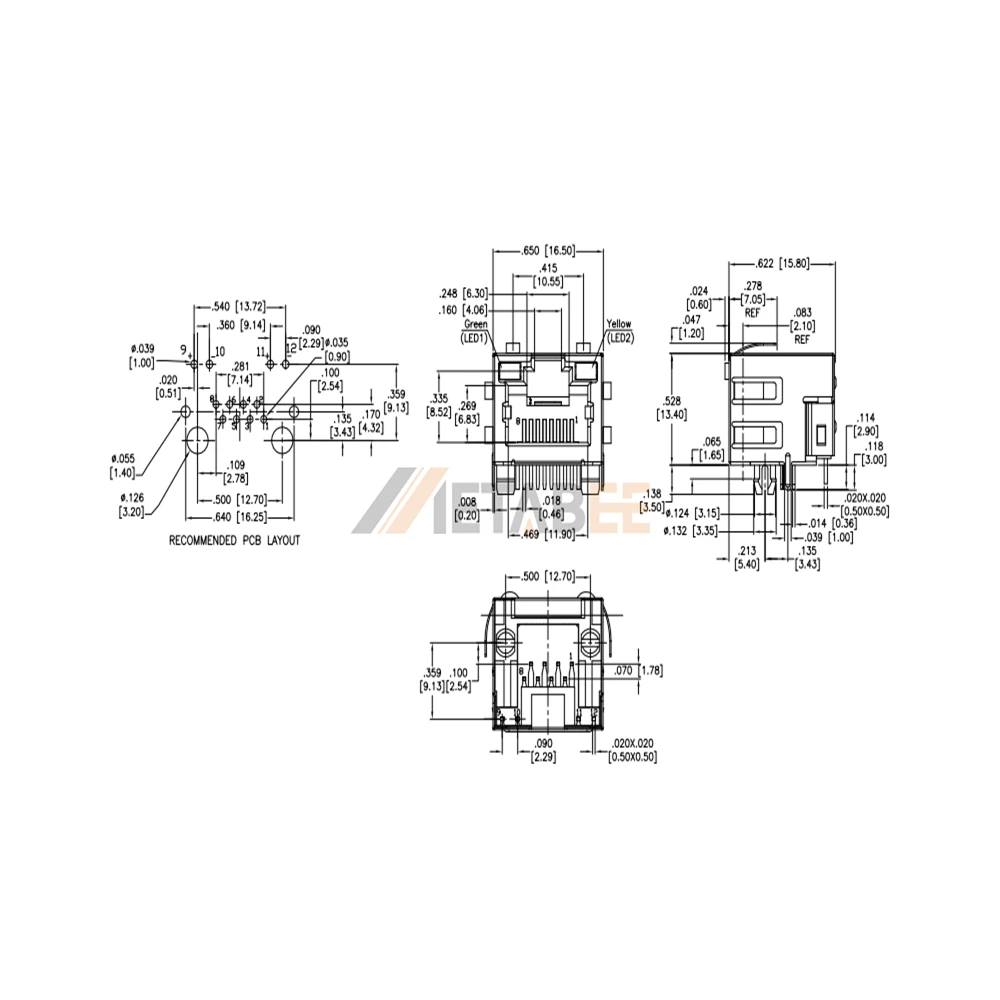

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
