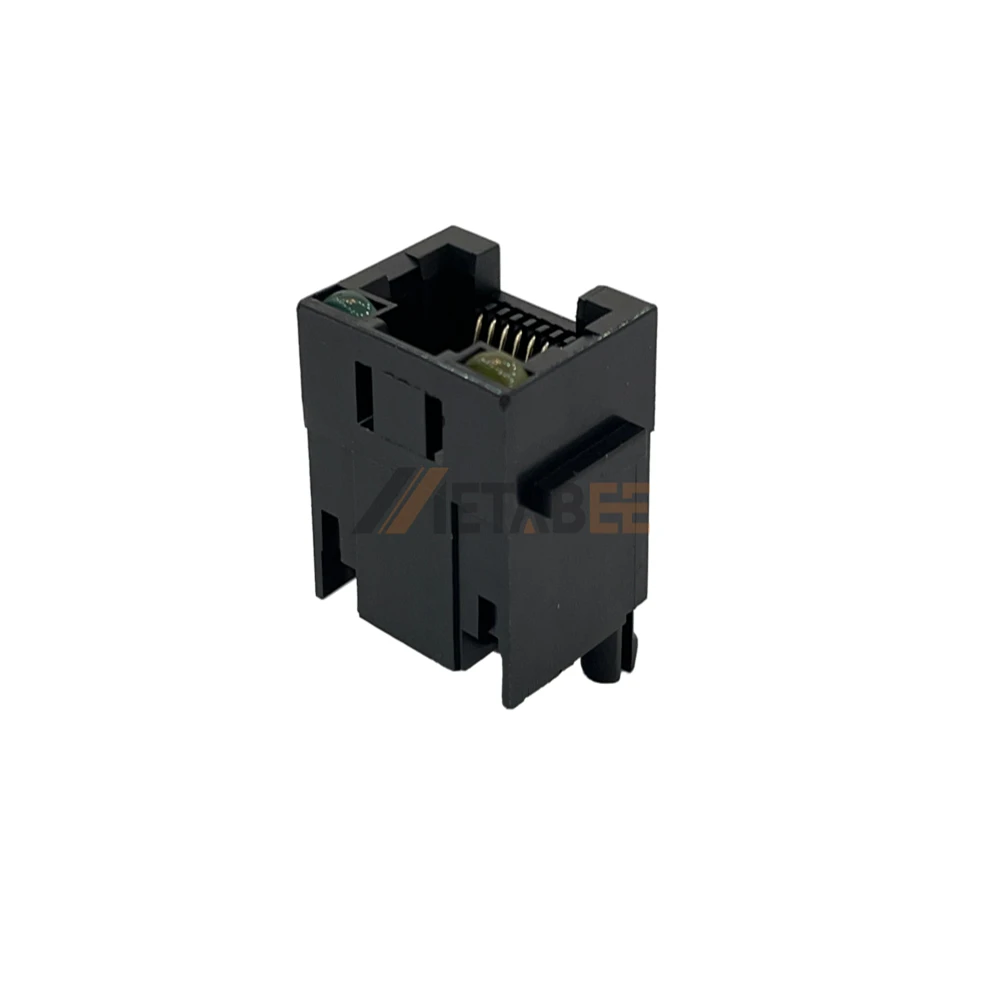

RJ45 Female Connector 8P8C Vertical Socket, 8P8C, 1 Port, Unshielded, Tab-Up, Through Hole
Introduction:
This is a single port vertical RJ45 connector female 8P8C designed for stable top-entry through hole mounting on printed circuit boards. It features a high-temperature Nylon or PBT housing that maintains structural integrity during industrial wave soldering processes while providing 500MΩ Min insulation resistance. The Phosphor Bronze contacts are finished with Gold plating to ensure superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Up vertical configuration, this unshielded socket effectively saves board surface area while offering various LED color options for immediate link diagnostics. The unit performs reliably across an impressive temperature range of -40°C up to +125°C with high dielectric strength. Technicians utilize this modular interface for industrial automation systems and networking gear requiring vertical board-to-cable connectivity.
Key Features
- Vertical Mounting: Facilitates space-saving top-entry connectivity on PCBs.
- Gold Plated Contacts: Delivers superior conductivity and lasting signal stability.
- Integrated Status LEDs: Provides instant visual diagnostics for network activity.
- Industrial Temperature: Performs reliably from -40°C up to +125°C.
- High-Strength Housing: Robust material withstands intense industrial assembly heat.
Main Specifications:
General Information:
| Product No.: | MTJ-88DX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Various Options |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1500 VRMS for 1 minute |
Materials and Plating:
| Insulator Material: | PBT/PA66/Nylon | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
