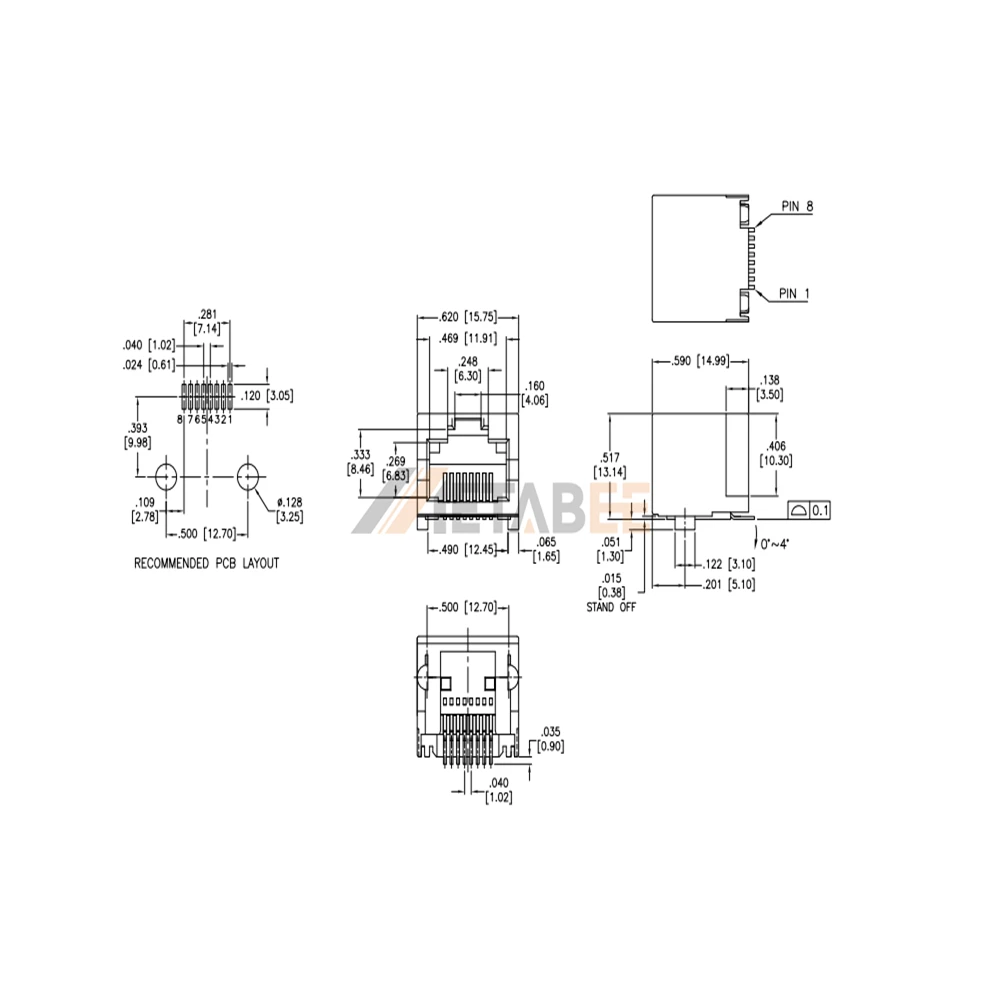

RJ45 Ethernet Socket Surface Mount Single Port Jack, 8P8C Unshielded, Tab-Up, R/A, No LED
Introduction:
This is a single port RJ45 ethernet socket surface mount jack designed for efficient automated SMT assembly on networking circuit boards. It features a hi-temp thermoplastic housing specifically engineered to survive intense reflow soldering temperatures while providing high thermal stability. The Phosphor Bronze contacts include a Gold Flash over Nickel finish to ensure superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Up right angle configuration, the component effectively saves vertical space while maintaining high signal integrity. Technicians utilize this unshielded rj45 socket pcb mount for modern telecommunication devices and compact networking hardware.
Key Features
- SMT Surface Mount: Facilitates efficient and automated high-speed PCB assembly.
- Tab-Up Configuration: Optimizes vertical clearance for specialized board layouts.
- Gold Flash Contacts: Ensures excellent conductivity and lasting signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial reflow soldering.
- 8P8C Unshielded Interface: Provides standard modular connectivity for networking systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-SMT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
