RJ45 Ethernet Port 8P8C Female Socket Connector, 1 Port, Unshielded, Tab-Down, Surface Mount, R/A, No LED
Introduction:
This is a single port RJ45 Ethernet port 8P8C female socket connector designed for space-saving surface mount assembly on modern networking PCBs. It is constructed with a hi-temp thermoplastic housing that survives intense industrial reflow soldering processes without any structural warping. The Gold over Nickel plated Phosphor Bronze contacts ensure superior conductivity for consistent 1.5A current flow across a wide temperature range of -40°C to +85°C. Utilizing a Tab-Down right angle configuration, this component maintains a high insulation resistance of 1000MΩ to ensure electrical safety. Technicians utilize this modular interface for compact telecommunication equipment and data networking hardware requiring efficient automated assembly.
Key Features
- Surface Mount Design: Facilitates efficient automated SMT assembly processes.
- Gold Plated Contacts: Ensures superior conductivity and signal stability.
- Hi-Temp Thermoplastic: Survives intense heat during industrial soldering.
- 8P8C Modular Interface: Provides standard connectivity for networking systems.
- Tab-Down Configuration: Optimizes vertical space for specialized layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88CPX1-RF1-SMT-TR | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC (C-C), 1500 VDC or AC (C-Shield) |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

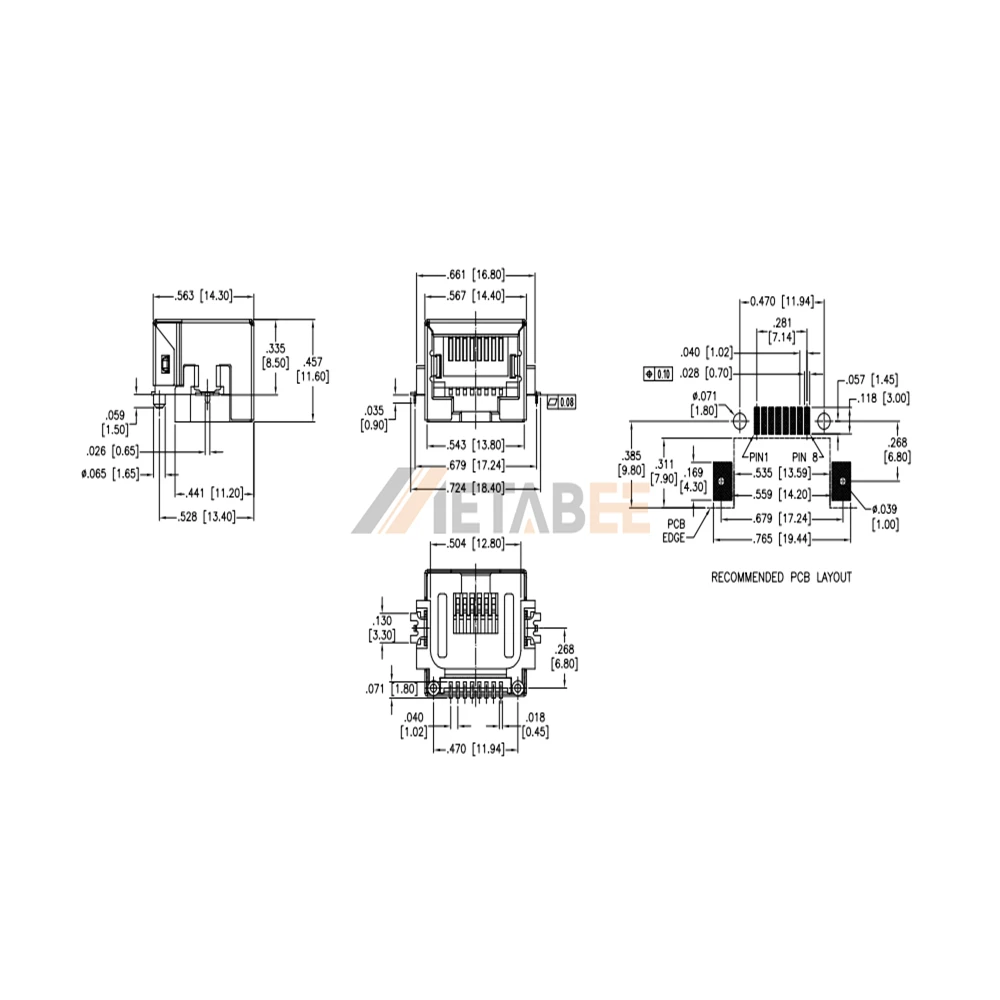

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
