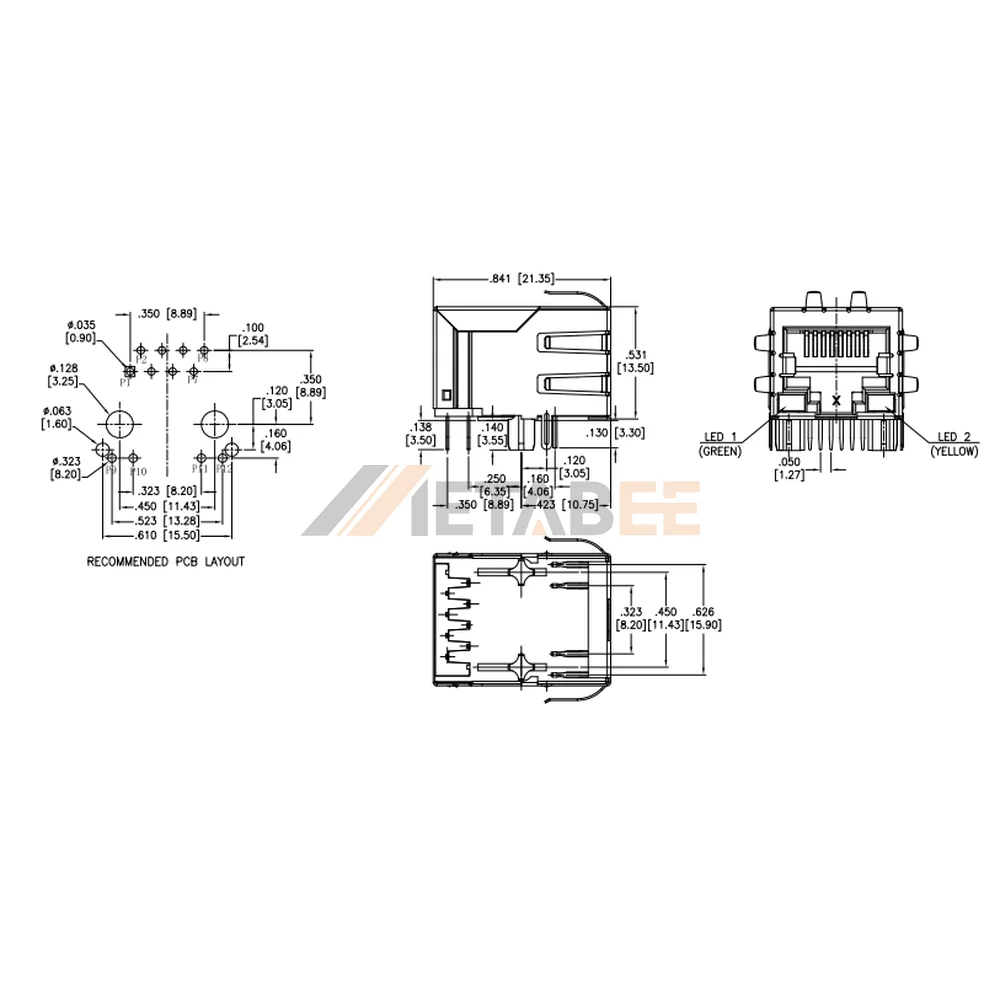

RJ45 Ethernet Magjack, 1 Port, 10/100 Base-T, Shielded with EMI, Through Hole, R/A, Green/Yellow LEDs
Introduction:
This RJ45 Ethernet magjack is a smart choice for adding reliable internet connectivity to your electronic devices. Unlike basic connectors, it has built-in parts that filter out electrical noise to keep your data moving smoothly and without errors. The metal cover acts like a shield, blocking outside interference so your 10/100 Base-T connection stays steady. You can easily check if the network is active by looking at the built-in green and yellow lights. Because it sits at a right angle, it saves space and fits neatly onto your circuit board. This through hole connector is tough enough for everything from office gear to industrial equipment.
Key Features
- Integrated Magnetics: Filters noise for stable 10/100 Base-T networking.
- Metal Shielding: Blocks interference to maintain high data integrity.
- Status Indicators: Green and yellow LEDs show network activity instantly.
- Right Angle Layout: Saves valuable space on compact circuit boards.
- Through Hole Mounting: Ensures a strong and lasting mechanical connection.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSP-PG-LH-M5 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
