Introduction:
Optimizing network setups, the single-port RJ45 Ethernet jack connector with magnetics handles 10/100 Base-T traffic efficiently. A stainless steel shield, featuring a pre-soldering design, provides exceptional protection against electromagnetic interference. The module is encased in black thermoplastic insulation, utilizing a board lock for robust through-hole retention on the printed circuit board. Tab-up architecture houses integrated green LEDs to signal link status and activity clearly. High-performance phosphor bronze contacts, finished with gold over nickel, ensure durable signal continuity within the 0°C to 70°C operating range.
Key Features
- 10/100 Base-T Data: Manages Fast Ethernet transmission speeds reliably.
- Stainless Steel Shield: Pre-soldered metal housing blocks signal noise.
- Thermoplastic Insulation: Black housing resists heat and physical stress.
- Green/Green LEDs: Dual green lights indicate network status.
- Phosphor Bronze Contacts: Gold plating ensures consistent low resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG2-L37-M346YA | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Orange, Right: Green |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

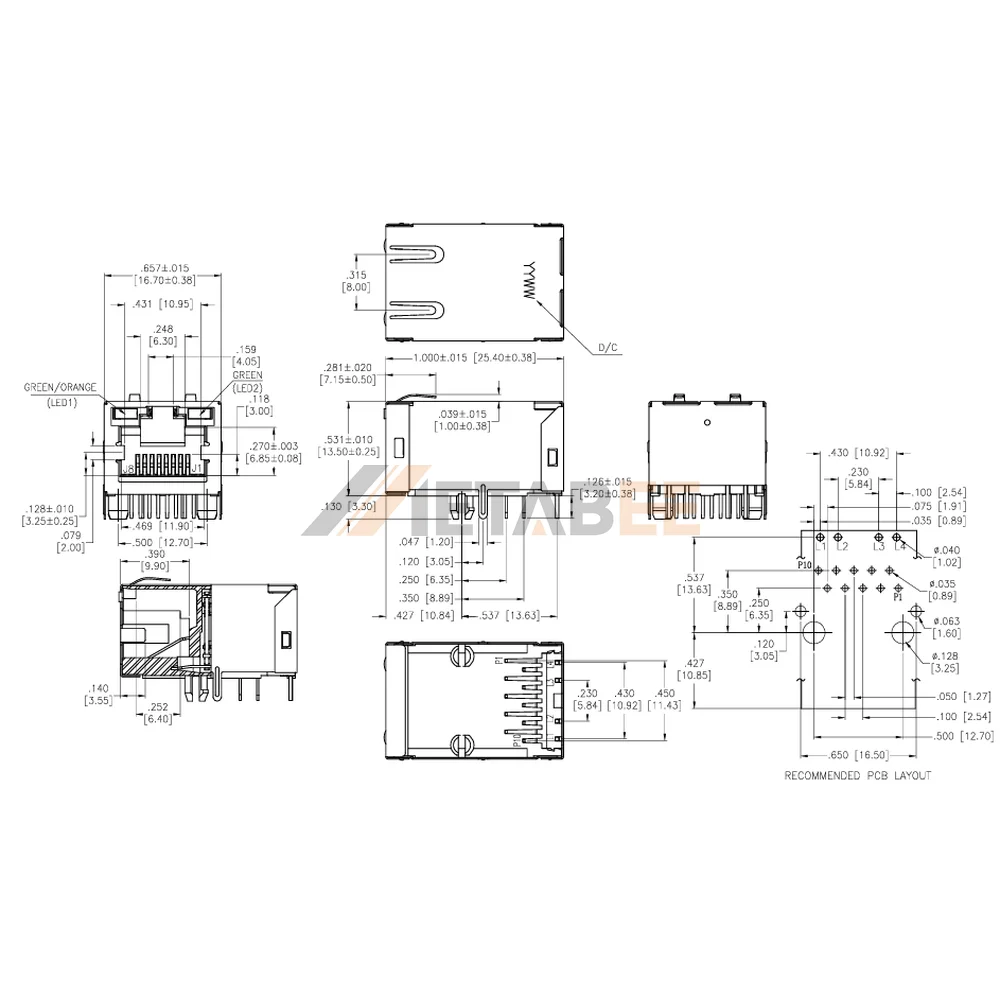

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
