Introduction:
Reliable Fast Ethernet networking requires a dependable RJ45 Ethernet connector with an integrated transformer, specifically designed for 10/100 Base-T applications. An unshielded, tab-down configuration makes the component ideal for streamlined printed circuit board layouts that do not require visual LED indicators. Black PA66 insulation provides robust structural integrity across standard 0°C to 70°C commercial operating environments. To guarantee precise and stable through-hole mounting, the right-angle module incorporates practical board guide and solder retention features. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ, ensuring flawless long-term signal transmission without data loss.
Key Features
- 10/100 Base-T Speed: Supports standard Fast Ethernet connections seamlessly.
- Unshielded Tab-Down Design: Streamlined UTP housing operates without LED indicators.
- PA66 Insulation Material: Durable black thermoplastic resists mechanical stress.
- Enhanced PCB Mounting: Board guide and solder retention guarantee stability.
- Low Resistance Contacts: Copper alloy ensures <20mΩ electrical resistance.

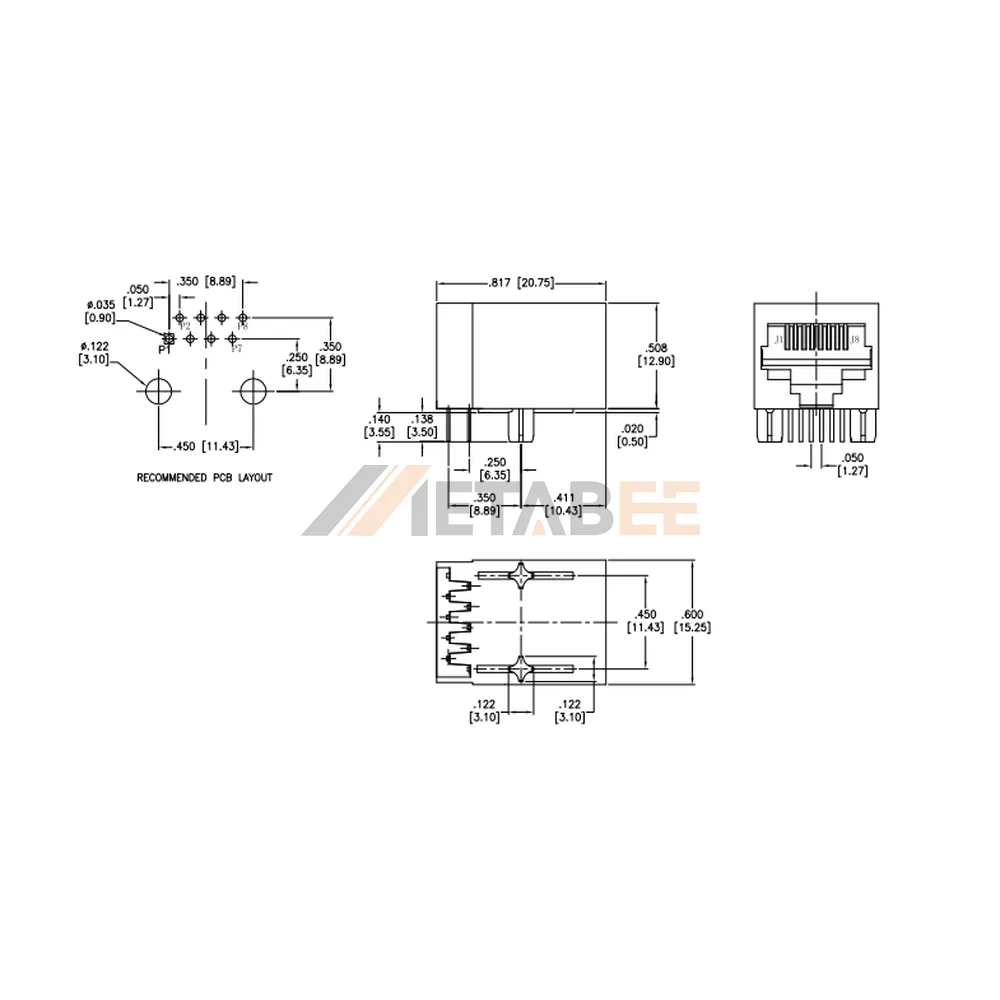

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-M4 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LEDs |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
