RJ45 Ethernet Connector Female PCB Vertical Jack, 8P8C, 1 Port, STP, Tab-Down, Through Hole, Green/Yellow
Introduction:
This is a single port RJ45 STP socket that functions as a high-performance ethernet connector female pcb for vertical through hole mounting. It features a rugged metallic shell made of nickel-plated brass or stainless steel to provide a full shield against EMI noise and signal interference. The hi-temp thermoplastic housing is specifically engineered to survive the thermal stress of industrial wave soldering processes without physical warping. Integrated Green and Yellow LEDs allow for instant link status monitoring while the Gold plated contacts support a consistent 1.5A current rating across a range of -40°C to +85°C. By utilizing a vertical top-entry configuration, the unit effectively optimizes board surface area and maintains high dielectric withstanding voltage. Technicians utilize this shielded interface for industrial controllers and networking gear requiring secure board-level connectivity.
Key Features
- Full STP Shielding: Metallic shell blocks EMI for high signal integrity.
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Integrated Link LEDs: Green-Yellow lights provide immediate status diagnostics feedback.
- Hi-Temp Housing: Withstands intense heat during industrial soldering processes.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LH-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1500 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Nylon46, glass fiber | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

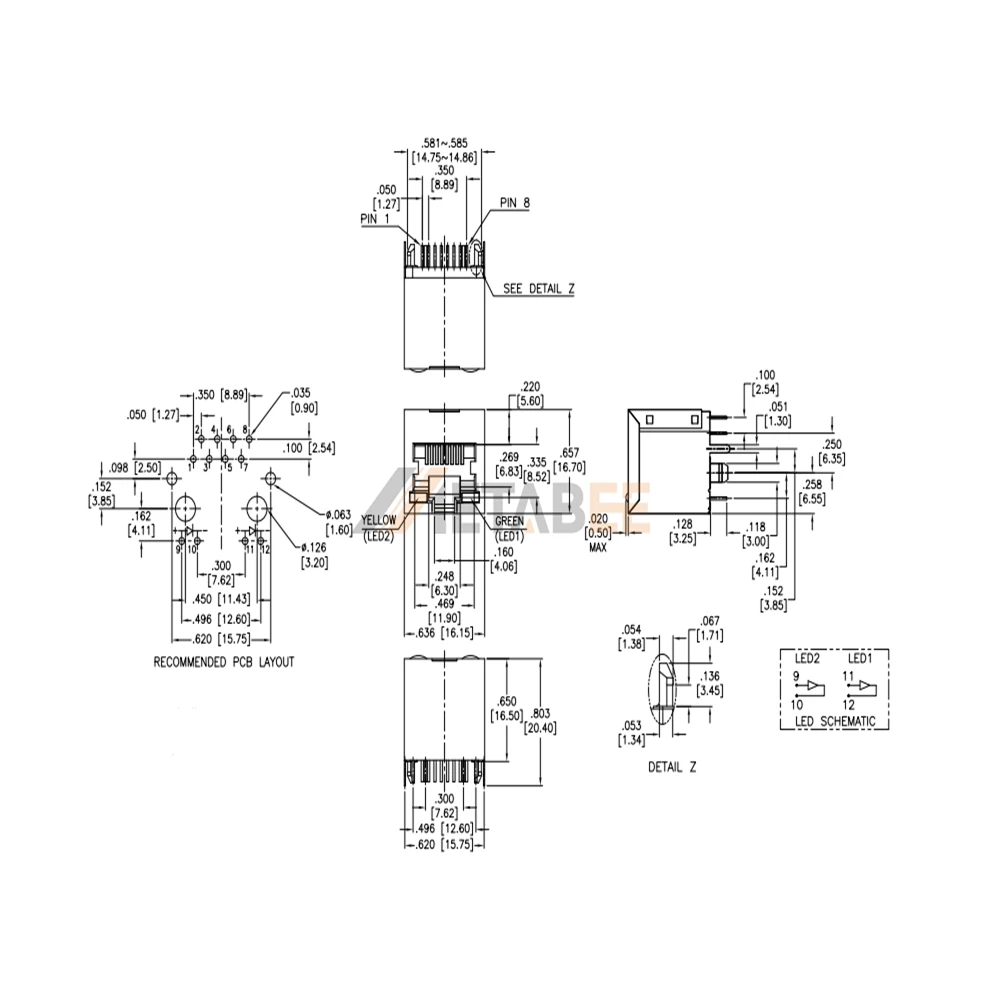

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
